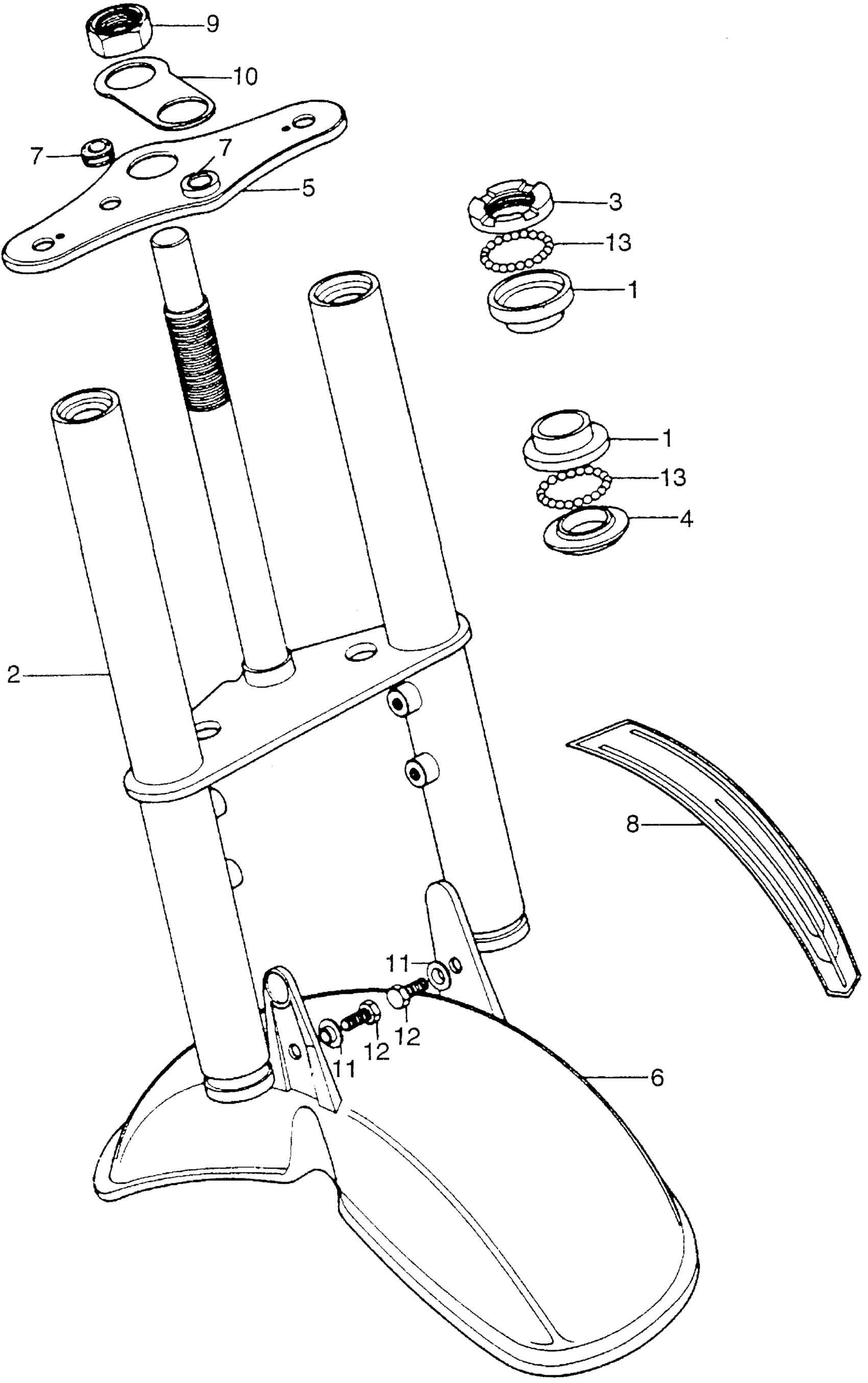

Honda QA50K3A (75) MOTORCYCLE, JPN, VIN# QA50-4000001 FRONT FORK + FRONT FENDER Diagram

RACE, STEERING TOP BALL

50301-045-670

Unavailable

FORK, FR. *NH35* (CLOUD SILVER) (NOT AVAILABLE)

51510-129-670AU

Unavailable

RACE, STEERING TOP CONE (NOT AVAILABLE)

53211-045-010

Unavailable

RACE, STEERING CONE (LOWER)

53212-045-020

Unavailable

FENDER, FR. *NH24* (CERAMIC WHITE) (NOT AVAILABLE)

61100-129-670WF

Unavailable

RUBBER A, RR. FENDER

80105-061-000

$4.01

STRIPE, FENDER (NOT AVAILABLE)

87507-129-700

Unavailable

NUT, STEERING STEM This part replaces 90304-114-000.

95020-15100

$3.17

NUT, STEERING STEM

95020-15100

$3.17

WASHER, STEERING STEM (NOT AVAILABLE)

90503-114-000

Unavailable

WASHER, FR. FENDER SETTING

90556-044-000

$3.65

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

BALL, STEEL (#6) (3/16)

96211-06000

$1.49
