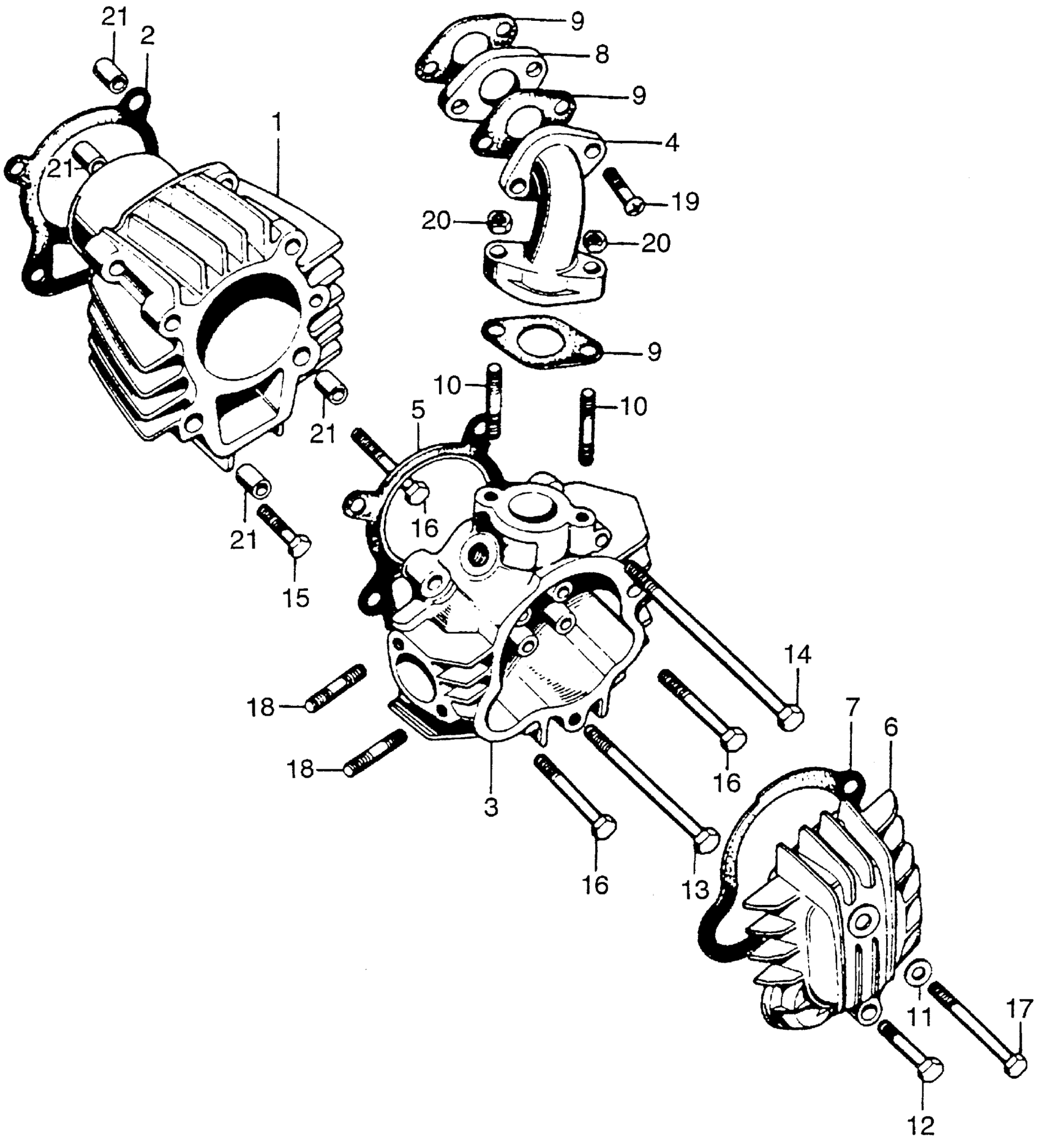

Honda QA50K3A (75) MOTORCYCLE, JPN, VIN# QA50-4000001 CYLINDER + CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER (NOT AVAILABLE)

12100-114-000

Unavailable

2

GASKET, CYLINDER This part replaces 12191-114-000.

12191-114-306

Unavailable

2

GASKET, CYLINDER

12191-114-306

Unavailable

3

CYLINDER HEAD (NOT AVAILABLE)

12200-114-000

Unavailable

4

PIPE, INLET (NOT AVAILABLE)

12210-114-010

Unavailable

5

GASKET, CYLINDER HEAD This part replaces 12251-114-000.

12251-114-405

Unavailable

5

GASKET, CYLINDER HEAD

12251-114-405

Unavailable

6

COVER, CYLINDER HEAD (NOT AVAILABLE)

12301-114-000

Unavailable

7

GASKET, CYLINDER HEAD COVER This part replaces 12391-114-000.

12391-114-306

Unavailable

7

GASKET, CYLINDER HEAD COVER

12391-114-306

Unavailable

8

INSULATOR, CARBURETOR This part replaces 16211-165-000.

16211-165-010

Unavailable

8

INSULATOR, CARBURETOR

16211-165-010

Unavailable

8

INSULATOR, CARBURETOR This part replaces 16211-165-306.

16211-165-010

Unavailable

8

INSULATOR, CARBURETOR This part replaces 16265-081-000.

16211-165-010

Unavailable

9

GASKET, IN. PIPE This part replaces 16267-081-000.

16267-081-306

Unavailable

9

GASKET, IN. PIPE

16267-081-306

Unavailable

10

BOLT, STUD (6X28) (NOT AVAILABLE)

90015-114-000

Unavailable

11

WASHER A (6MM)

90478-700-000

$1.49

12

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

12

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

13

BOLT, HEX. (6X71) (NOT AVAILABLE)

92000-06071

Unavailable

14

BOLT, HEX. (6X112) This part replaces 92000-06112.

92101-06110-0A

$2.92

14

BOLT, HEX. (6X112)

92101-06110-0A

$2.92

15

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

15

BOLT, HEX. (6X25) This part replaces 92100-06025.

92101-06025-0A

$1.62

15

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

16

BOLT, HEX. (6X32) This part replaces 92000-06032.

92101-06032-0A

$1.64

16

BOLT, HEX. (6X32) This part replaces 92000-06032-0A.

92101-06032-0A

$1.64

16

BOLT, HEX. (6X32) This part replaces 92100-06032.

92101-06032-0A

$1.64

16

BOLT, HEX. (6X32)

92101-06032-0A

$1.64

17

BOLT, HEX. (6X56) (NOT AVAILABLE) This part replaces 92100-06056.

92000-06056-0A

Unavailable

18

BOLT, STUD (6X27) (NOT AVAILABLE)

92700-06027

Unavailable

19

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

19

SCREW, PAN (6X20)

93500-06020-0A

$1.49

20

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM)

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

21

PIN A, DOWEL (8X12)

94301-08120

$2.19
