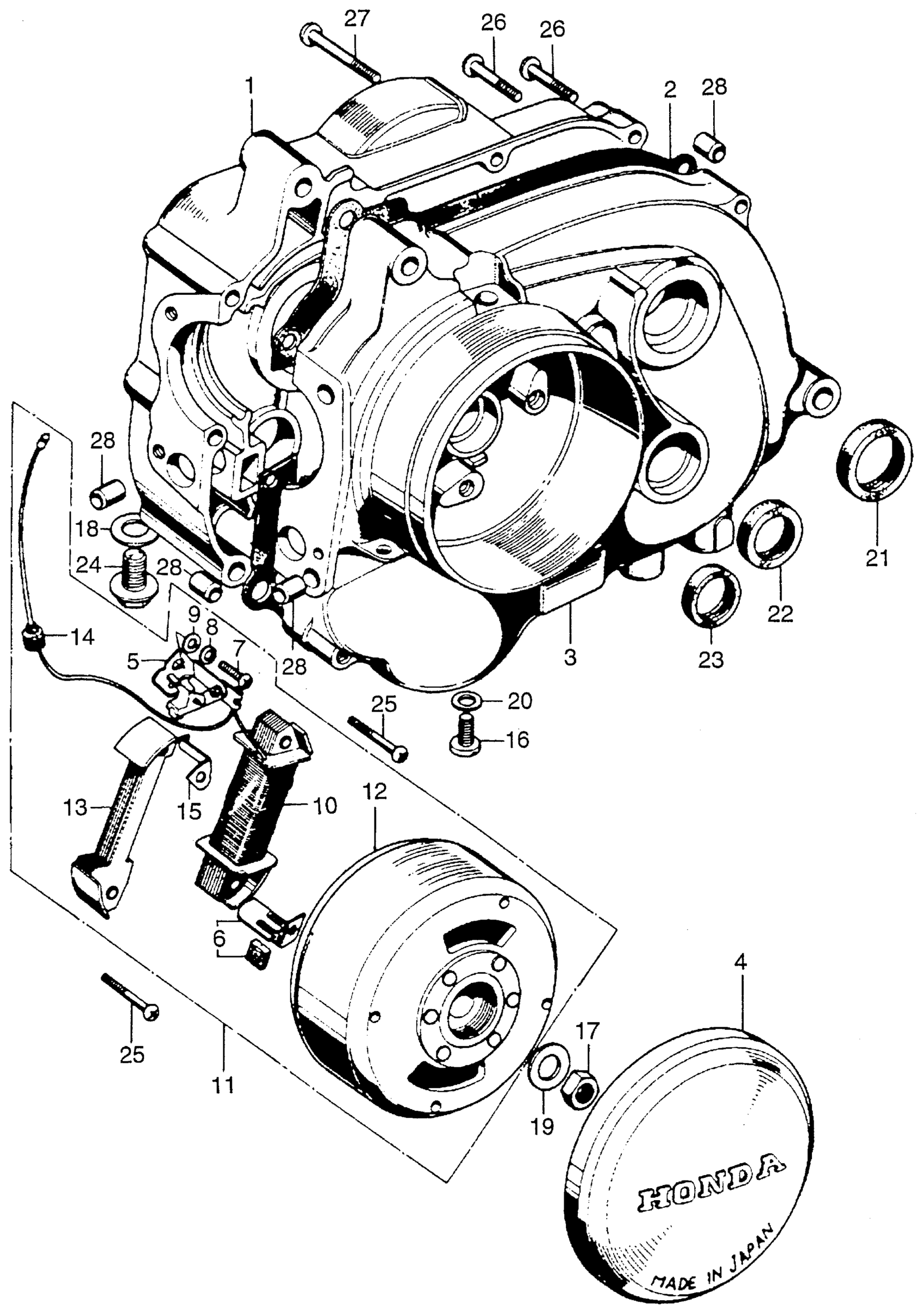

Honda QA50K3A (75) MOTORCYCLE, JPN, VIN# QA50-4000001 CRANKCASE + ALTERNATOR Diagram

#

Description
Price

1

CRANKCASE, R. (NOT AVAILABLE)

11100-083-000

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-081-000.

11191-081-306

$11.10

2

GASKET, CRANKCASE

11191-081-306

$11.10

3

CRANKCASE, L. (NOT AVAILABLE)

11200-083-020

Unavailable

4

COVER, ALTERNATOR

11431-063-000

Unavailable

5

POINTS

30202-063-004

Unavailable

6

FELT, OIL (DENSO)

30205-816-650

Unavailable

7

SCREW, POINTS SETTING (NOT AVAILABLE)

30207-063-004

Unavailable

8

WASHER, SPRING (NOT AVAILABLE)

30208-063-004

Unavailable

9

WASHER, PLAIN (NOT AVAILABLE)

30209-063-004

Unavailable

10

COIL, PRIMARY (NOT AVAILABLE)

30540-114-004

Unavailable

11

ALTERNATOR ASSY. (DENSO) (NOT AVAILABLE)

31100-114-004

Unavailable

12

FLYWHEEL This part replaces 31121-114-004.

31121-081-602

Unavailable

13

COIL (DENSO) (NOT AVAILABLE)

31631-114-004

Unavailable

14

GROMMET, ALTERNATOR CABLE (NOT AVAILABLE)

32956-114-000

Unavailable

15

CLAMP, ALTERNATOR WIRE (NOT AVAILABLE)

32957-063-010

Unavailable

16

BOLT, SEALING (8MM) (NOT AVAILABLE)

90081-044-000

Unavailable

17

NUT, HEX. (10MM) This part replaces 90201-044-000.

94002-10000-0S

$4.06

17

NUT, HEX. (10MM) This part replaces 90309-250-000.

94002-10000-0S

$4.06

17

NUT, HEX. (10MM) This part replaces 94002-10000.

94002-10000-0S

$4.06

17

NUT, HEX. (10MM)

94002-10000-0S

$4.06

17

NUT, HEX. (10MM) This part replaces 94002-10000-08.

94002-10000-0S

$4.06

18

WASHER, DRAIN PLUG (12MM) This part replaces 90407-231-000.

94109-12000

$1.49

18

GASKET, DRAIN VALVE (12.5X20)

90407-259-000

$2.92

18

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

19

WASHER, SPECIAL (10X18)

90426-GW0-730

$3.49

19

WASHER, SPECIAL (10X18) This part replaces 90426-001-000.

90426-GW0-730

$3.49

20

GASKET, OIL PIPE JOINT

90405-001-000

$1.89

20

GASKET, OIL PIPE JOINT This part replaces 90488-044-000.

90405-001-000

$1.89

21

OIL SEAL (20X30X5) This part replaces 91203-081-005.

91204-187-013

$5.80

21

OIL SEAL (20X30X5)

91204-187-013

$5.80

22

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-035-000.

91208-KB4-671

$4.06

22

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-035-003.

91208-KB4-671

$4.06

22

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-121-000.

91208-KB4-671

$4.06

22

OIL SEAL (11.6X23X10) (ARAI)

91208-KB4-671

$4.06

23

OIL SEAL (15X25X6) This part replaces 91211-044-000.

91211-044-003

Unavailable

23

OIL SEAL (15X25X6)

91211-044-003

Unavailable

24

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

25

SCREW, PAN (4X22)

93500-04022-0A

$1.49

26

SCREW, PAN (6X35)

93500-06035-0A

$1.49

26

SCREW, PAN (6X35) This part replaces 93500-06036.

93500-06035-0A

$1.49

27

SCREW, PAN (6X45) This part replaces 93500-06045.

93500-06045-0A

$1.49

27

SCREW, PAN (6X45)

93500-06045-0A

$1.49

28

PIN A, DOWEL (8X12)

94301-08120

$2.19
