PISTON + CRANKSHAFT

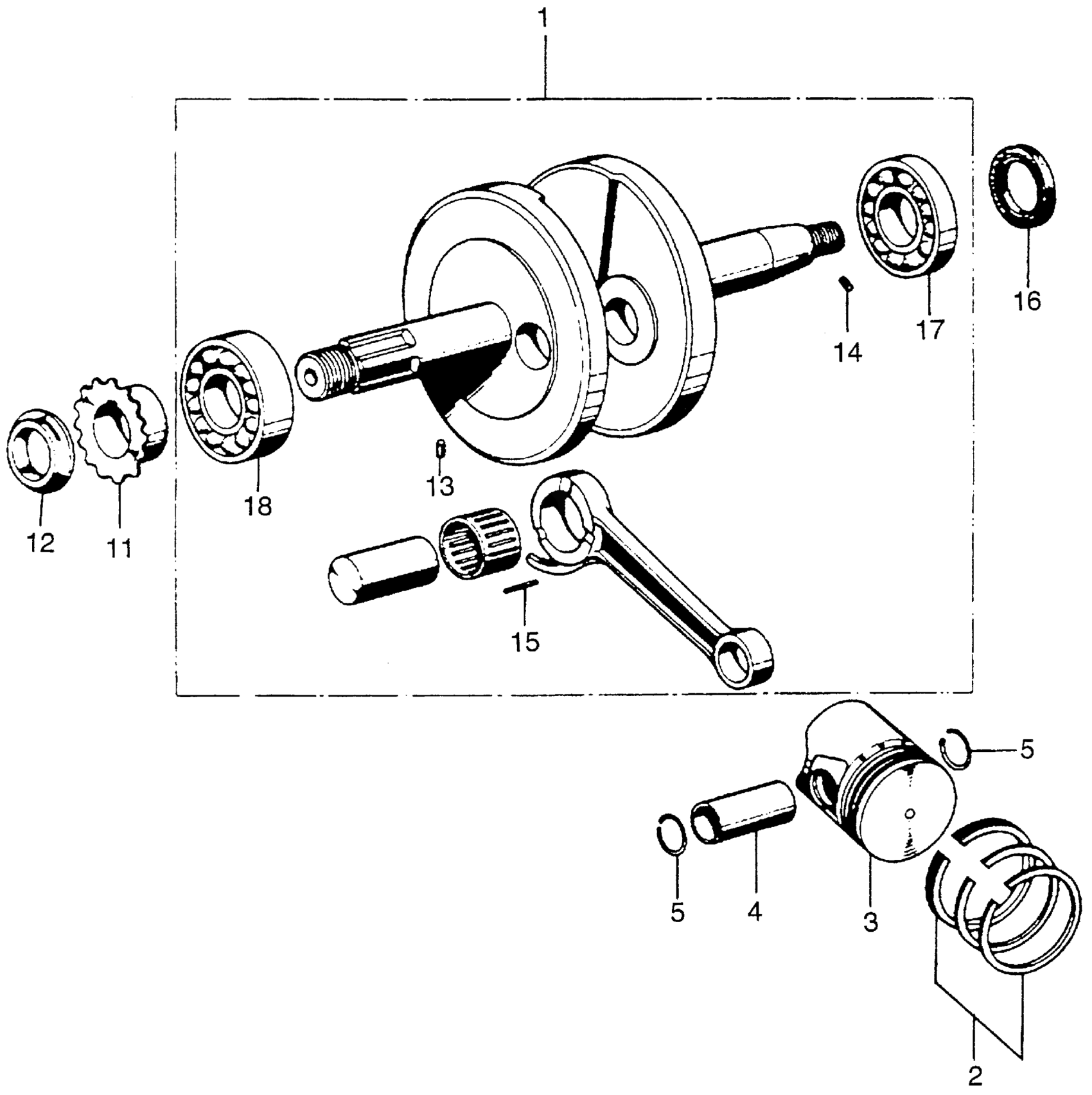

Honda QA50K2A (74) MOTORCYCLE, JPN, VIN# QA50-3000001 PISTON + CRANKSHAFT Diagram
#
Description
Price
1
CRANKSHAFT (NOT AVAILABLE)
13000-081-010
Unavailable
2
RING SET, PISTON (STD)
13010-044-000
Unavailable
2
RING SET, PISTON (OS 0.25)
13020-044-000
Unavailable
2
RING SET, PISTON (0.75) (NOT AVAILABLE)
13040-044-000
Unavailable
2
RING SET, PISTON (1.00) (NOT AVAILABLE)
13050-044-000
Unavailable
3
PISTON (STD)
13101-081-000
Unavailable
3
PISTON (0.25) This part replaces 13102-081-000.
13102-081-505
Unavailable
3
PISTON (OS 0.50) This part replaces 13103-081-000.
13103-081-505
Unavailable
3
PISTON (OS 0.50)
13103-081-505
Unavailable
3
PISTON (0.75) This part replaces 13104-081-000.
13104-081-505
Unavailable
3
PISTON (0.75)
13104-081-505
Unavailable
3
PISTON (1.00) This part replaces 13105-081-000.
13105-081-505
Unavailable
3
PISTON (1.00)
13105-081-505
Unavailable
4
PIN, PISTON
13111-044-010
Unavailable
11
SPROCKET, TIMING (15T)
14311-081-010
Unavailable
12
COLLAR, TIMING SPROKET DISTANCE (NOT AVAILABLE)
14315-083-000
Unavailable
13
PIN, TIMING KNOCK (NOT AVAILABLE)
90719-081-000
Unavailable
14
PIN, DOWEL (3X4) (NOT AVAILABLE) This part replaces 90741-044-000.
90741-122-000
Unavailable
14
PIN, DOWEL (3X4) (NOT AVAILABLE)
90741-122-000
Unavailable
15
ROLLER, ROD (2.5X8.5) (NOT AVAILABLE)
91101-205-010
Unavailable
16
OIL SEAL (15X25X6) This part replaces 91211-044-000.
91211-044-003
Unavailable
16
OIL SEAL (15X25X6)
91211-044-003
Unavailable
