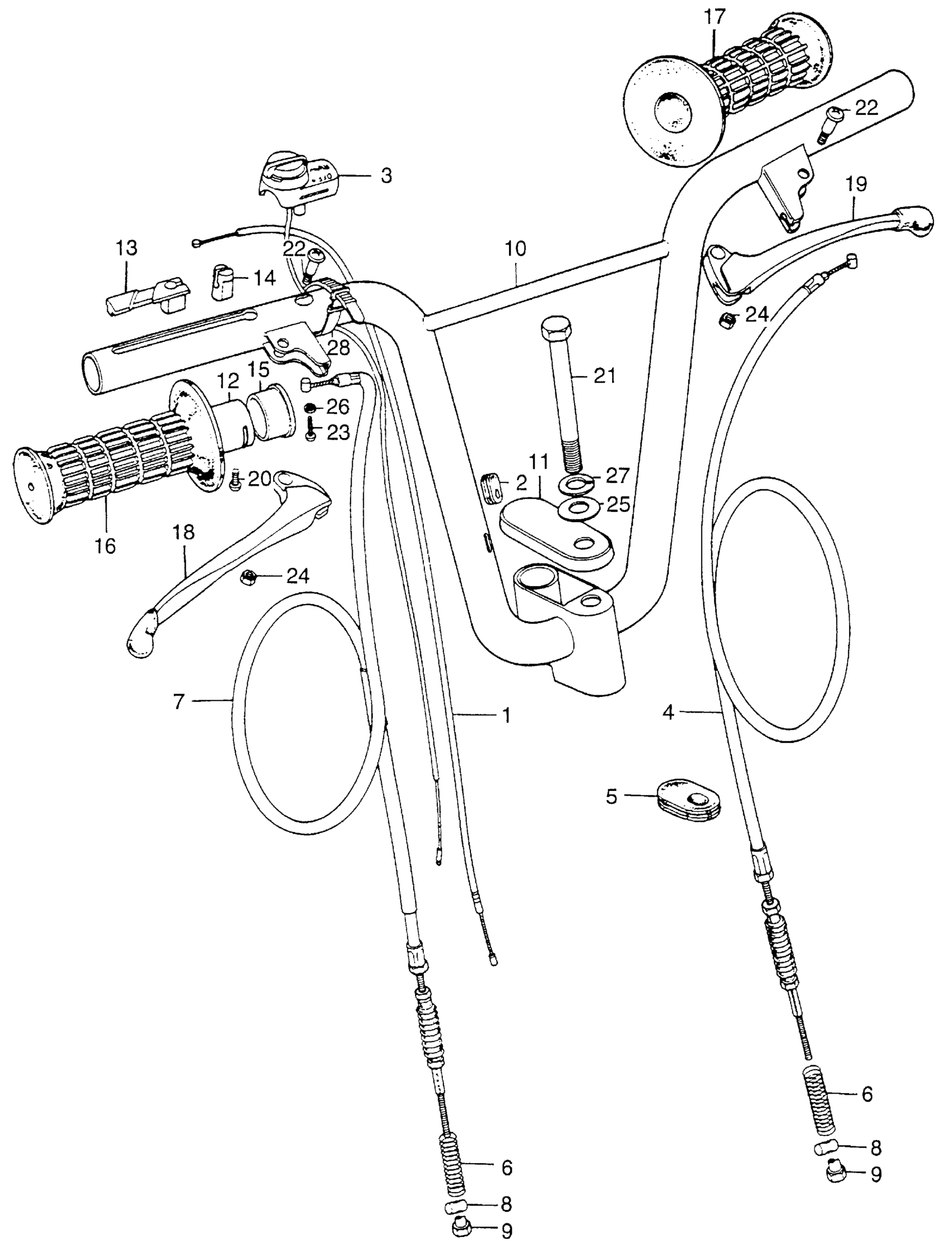

Honda QA50K1A MOTORCYCLE, JPN, VIN# QA50-2000001 HANDLEBAR K1 Diagram

#

Description
Price

1

CABLE, THROTTLE (NOT AVAILABLE)

17910-129-670

Unavailable

2

GROMMET, THROTTLE CABLE

17911-023-000

$4.12

3

SWITCH, STOP (NOT AVAILABLE)

35300-129-670

Unavailable

4

CABLE, RR. BRAKE (NOT AVAILABLE)

43450-129-670

Unavailable

5

GROMMET, RR. BRAKE CABLE (NOT AVAILABLE)

43455-114-300

Unavailable

6

SPRING, FR. BRAKE ARM

45437-001-000

$3.50

7

CABLE, FR. BRAKE (NOT AVAILABLE)

45450-129-670

Unavailable

8

JOINT A, BRAKE ARM This part replaces 45461-001-000.

95015-31001

$1.53

8

JOINT A, BRAKE ARM This part replaces 95015-31000.

95015-31001

$1.53

8

JOINT A, BRAKE ARM

95015-31001

$1.53

9

NUT A, BRAKE ROD ADJUSTING This part replaces 45462-001-000.

95015-41000

$1.49

9

NUT A, BRAKE ROD ADJUSTING This part replaces 45462-028-000.

95015-41000

$1.49

9

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49

10

HANDLEBAR (NOT AVAILABLE)

53100-129-671

Unavailable

11

CAP, HANDLE POST (NOT AVAILABLE)

53104-114-000

Unavailable

12

HANDLEBAR, THROTTLE GRIP

53141-044-010

Unavailable

13

HINGE, THROTTLE CABLE

53161-044-000

$8.88

14

HOLDER, THROTTLE CABLE (OUTER) (NOT AVAILABLE)

53162-063-000

Unavailable

15

STOPPER, THROTTLE GRIP

53163-044-010

Unavailable

16

GRIP, R. HANDLEBAR

53165-120-000

$16.86

17

GRIP, L. HANDLEBAR

53166-120-000

$16.86

18

LEVER, R. HANDLEBAR

53175-045-670

Unavailable

19

LEVER, L. HANDLEBAR

53178-045-670

Unavailable

20

SCREW, THROTTLE GRIP MOUNT This part replaces 90101-063-000.

90101-063-505

$5.04

20

SCREW, THROTTLE GRIP MOUNT

90101-063-505

$5.04

21

BOLT (10X74) (NOT AVAILABLE)

90101-377-000

Unavailable

21

BOLT (10X74) (NOT AVAILABLE) This part replaces 90106-333-000.

90101-377-000

Unavailable

22

SCREW, L. HANDLEBAR LEVER PIVOT This part replaces 90114-063-000.

90116-GF8-000

$3.58

22

SCREW, L. HANDLEBAR LEVER PIVOT

90116-GF8-000

$3.58

23

SCREW, PAN (3X12)

93500-03012-0A

$1.49

24

NUT, HEX. (5MM)

94001-05000-0S

$2.74

25

WASHER, PLAIN (10MM)

94101-10000

$1.49

26

WASHER, SPRING (3MM)

94111-03000

$1.49

27

WASHER, SPRING (8MM)

94111-10000

$1.49

28

BAND B1, CABLE

95014-62100

$1.64
