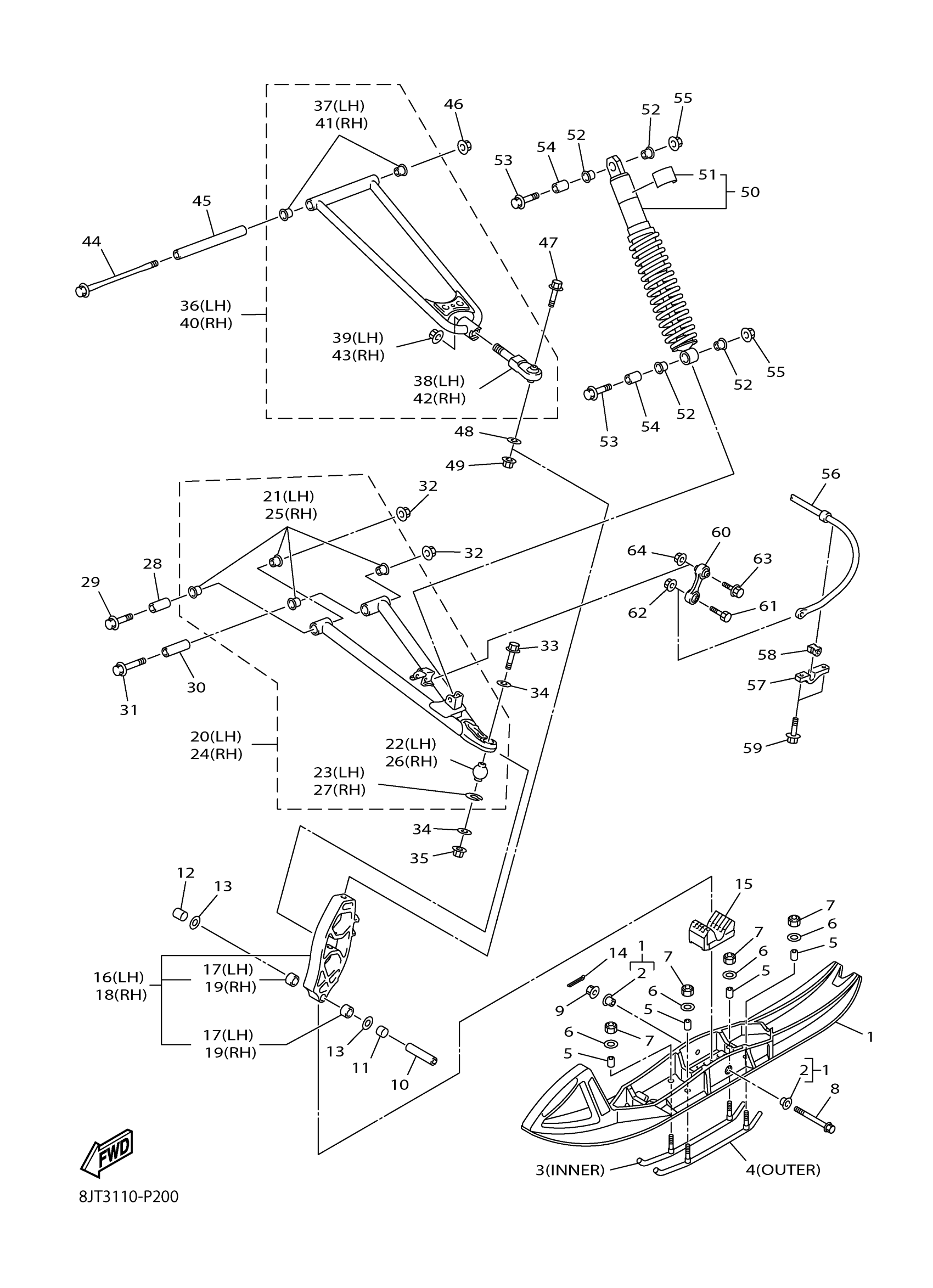

Yamaha PZ5NXJB (PHAZER XTX) 8JT9 2018 SKI Diagram
#
1
GEN II 135MM TUNER SKI BK
SMA-8JPDS-00-00
Unavailable
2
. COLLAR 1
8EX-F3754-00-00
Unavailable
3
8JH CARBIDE PAIR - 9MM RD 2"
SMA-8JH31-02-00
Unavailable
4
8JH RUNNER SET - NO CARBIDE
SMA-8JH31-01-00
Unavailable
5
COLLAR
90387-08064-00
$8.49
6
WASHER, PLATE
90201-08053-00
$5.60
7
NUT, NYLON
95717-08300-00
$2.70
8
BOLT, FLANGE
90105-10070-00
$12.49
9
NUT, S/L FLANGE
95602-10200-00
$4.82
10
COLLAR
90387-1012H-00
$24.99
11
COLLAR
90387-16017-00
$5.60
12
COLLAR
90387-16018-00
$32.99
13
WASHER, PLATE
90201-16022-00
$9.49
14
PIN, COTTER
91490-20025-00
$1.99
15
STOPPER 1
8GK-23743-00-00
$58.99
16
STEERING KNUCKLE ASSY (LEFT)
8GK-23501-01-00
Unavailable
17
BUSH, BIMETAL FORMED
90384-16N51-00
Unavailable
18
STEERING KNUCKLE ASSY (RIGHT)
8GK-23502-01-00
Unavailable
19
BUSH, BIMETAL FORMED
90384-16N51-00
Unavailable
20
FRONT LOWER ARM COMP. (LEFT)
8GN-23570-C0-00
Unavailable
21
BUSH, SOLID
90381-16003-00
Unavailable
22
BALL JOINT 2
8GK-23579-01-00
Unavailable
23
CIRCLIP (IR)(93450-35015 SUPER
99009-35700-00
Unavailable
24
FRONT LOWER ARM COMP. (RIGHT)
8GN-23580-C0-00
Unavailable
25
BUSH, SOLID
90381-16003-00
Unavailable
26
BALL JOINT 2
8GK-23579-01-00
Unavailable
27
CIRCLIP (IR)(93450-35015 SUPER
99009-35700-00
Unavailable
28
COLLAR
90387-10093-00
Unavailable
29
BOLT, FLANGE
90105-10211-00
Unavailable
30
COLLAR
90387-10074-00
Unavailable
31
BOLT, FLANGE
90105-10212-00
Unavailable
32
NUT, S/L FLANGE
95602-10200-00
$4.82
33
BOLT, FLANGE
90105-10210-00
Unavailable
34
WASHER, PLATE
90201-10051-00
Unavailable
35
NUT, S/L FLANGE
95602-10200-00
$4.82
36
FRONT UPPER ARM COMP. (LEFT)
8GK-23540-C0-00
Unavailable
37
BUSH, SOLID
90381-15003-00
Unavailable
38
BALL JOINT 1
8GK-23549-00-00
Unavailable
39
NUT, U FLANGE
95602-14200-00
Unavailable
40
FRONT UPPER ARM COMP. (RIGHT)
8GK-23550-C0-00
Unavailable
41
BUSH, SOLID
90381-15003-00
Unavailable
42
BALL JOINT 1
8GK-23549-00-00
Unavailable
43
NUT, U FLANGE
95602-14200-00
Unavailable
44
BOLT, FLANGE
90105-10213-00
Unavailable
45
COLLAR
90387-10073-00
Unavailable
46
NUT, S/L FLANGE
95602-10200-00
$4.82
47
BOLT
91312-10045-00
Unavailable
48
WASHER, PLATE
90201-10052-00
Unavailable
49
NUT, S/L FLANGE
95602-10200-00
$4.82
50
ABSORBER ASSY 1
8JT-2376A-00-00
Unavailable
51
LABEL, WARNING
4AA-22259-60-00
Unavailable
52
BUSH, SOLID(8CM)
90381-14101-00
Unavailable
53
BOLT, FLANGE (8V9)
95812-10045-00
Unavailable
54
COLLAR (8U7)
90387-105G5-00
Unavailable
55
NUT, S/L FLANGE
95602-10200-00
$4.82
56
BAR, STABILIZER FRONT
8GN-2386E-00-00
Unavailable
57
HOLDER, STABILIZER FRONT
8GN-2386C-00-00
Unavailable
58
BUSH, STABILIZER FRONT
8GN-2386G-00-00
Unavailable
59
BOLT, FLANGE
95812-08020-00
Unavailable
60
JOINT, STABILIZER 1
8GN-2385L-00-00
Unavailable
61
BOLT(6TA)
97017-10035-00
Unavailable
62
NUT, S/L FLANGE
95602-10200-00
$4.82
63
BOLT, FLANGE
95817-08040-00
Unavailable
64
NUT, SELF-LOCKING
95602-08200-00
Unavailable
