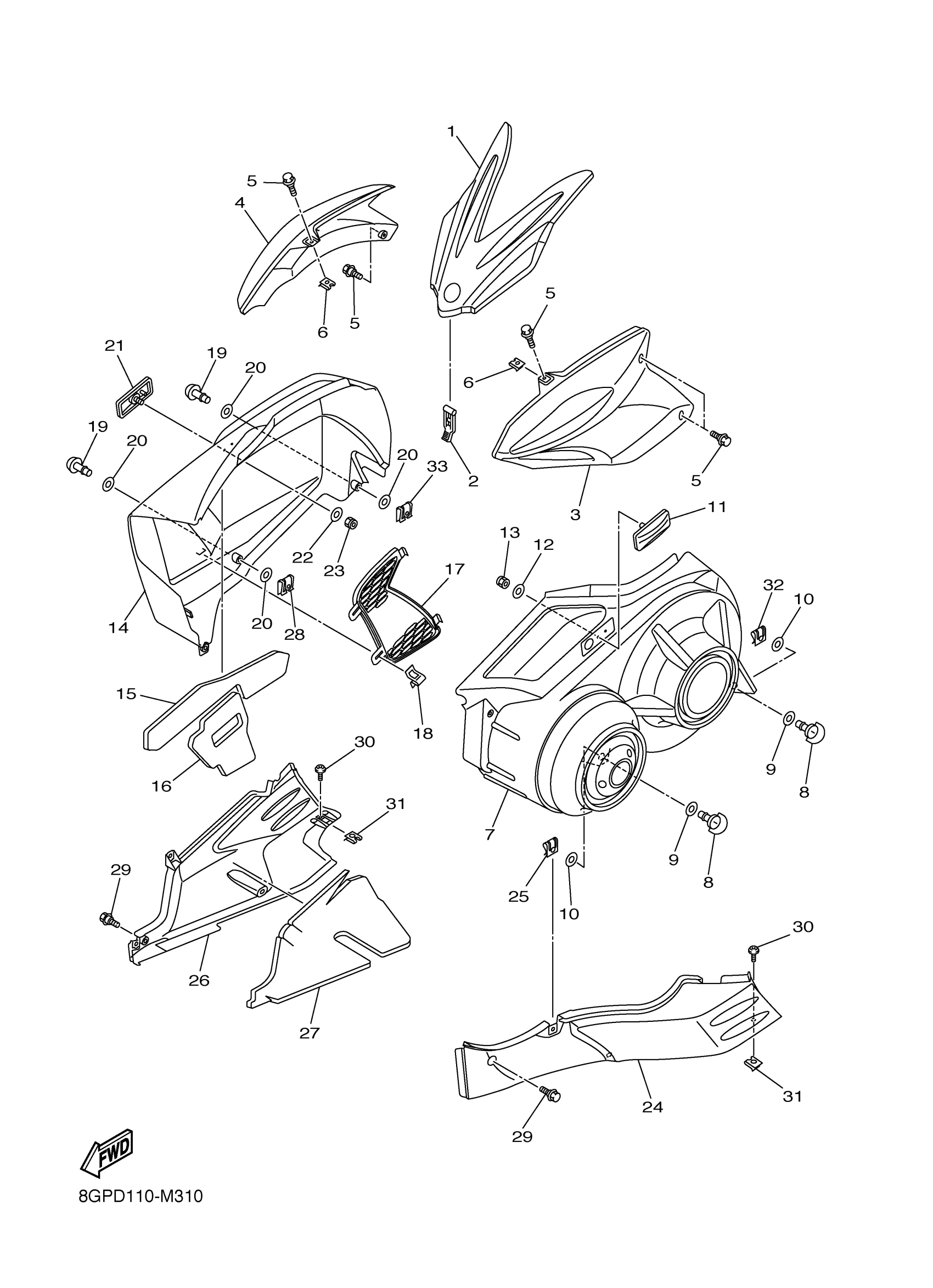

Yamaha PZ5NXJB (PHAZER XTX) 8JT9 2018 SHROUD Diagram

#

Description
Price

1

SHROUD

8GC-77111-30-00

$91.03

2

BAND

59V-21646-00-00

$18.20

3

PANEL 1

8GC-2835U-30-00

$57.27

4

PANEL 2

8GC-2835V-30-00

$58.55

5

BOLT

90109-06220-00

$6.94

6

NUT, SPRING

90183-06100-00

$7.35

7

HOOD 3

8GC-2197H-00-00

Unavailable

8

HEAD

8HG-28386-00-00

$25.77

9

WASHER, SPECIAL 1

8HG-21757-00-00

$0.84

10

WASHER, SPECIAL 1

8HR-21757-00-00

$2.00

11

PLATE 1

8FR-77185-00-00

$7.17

12

WASHER, PLATE (4H7)

90201-061A5-00

$5.47

13

NUT, NYLON

95707-05300-00

$2.56

14

HOOD 4

8GC-2198H-01-00

Unavailable

15

DAMPER, NOISE 11

8GP-77271-00-00

Unavailable

16

DAMPER, NOISE 12

8GP-77272-00-00

Unavailable

17

LOUVER 4

8GC-77134-00-00

Unavailable

18

CLIP

90468-06001-00

Unavailable

19

HEAD

5PW-28386-00-00

Unavailable

20

WASHER, SPECIAL 1

8HW-21757-00-00

Unavailable

21

PLATE 1

8FR-77185-00-00

$7.17

22

WASHER, PLATE (4H7)

90201-061A5-00

$5.47

23

NUT, NYLON

95707-05300-00

$2.56

24

FRAME UNDER 1

8GC-2196A-00-00

Unavailable

25

PLATE, SPRING

4XV-2177L-01-00

Unavailable

26

FRAME, UNDER 2

8GC-2196E-00-00

Unavailable

27

DAMPER, NOISE 13

8GP-77273-00-00

Unavailable

28

PLATE, SPRING

5PW-2177L-01-00

Unavailable

29

BOLT

90109-06220-00

$6.94

30

SCREW

90149-06105-00

Unavailable

31

NUT, SPRING

90183-06100-00

$7.35

32

PLATE, SPRING

4XV-2177L-01-00

Unavailable

33

PLATE, SPRING

5PW-2177L-01-00

Unavailable
