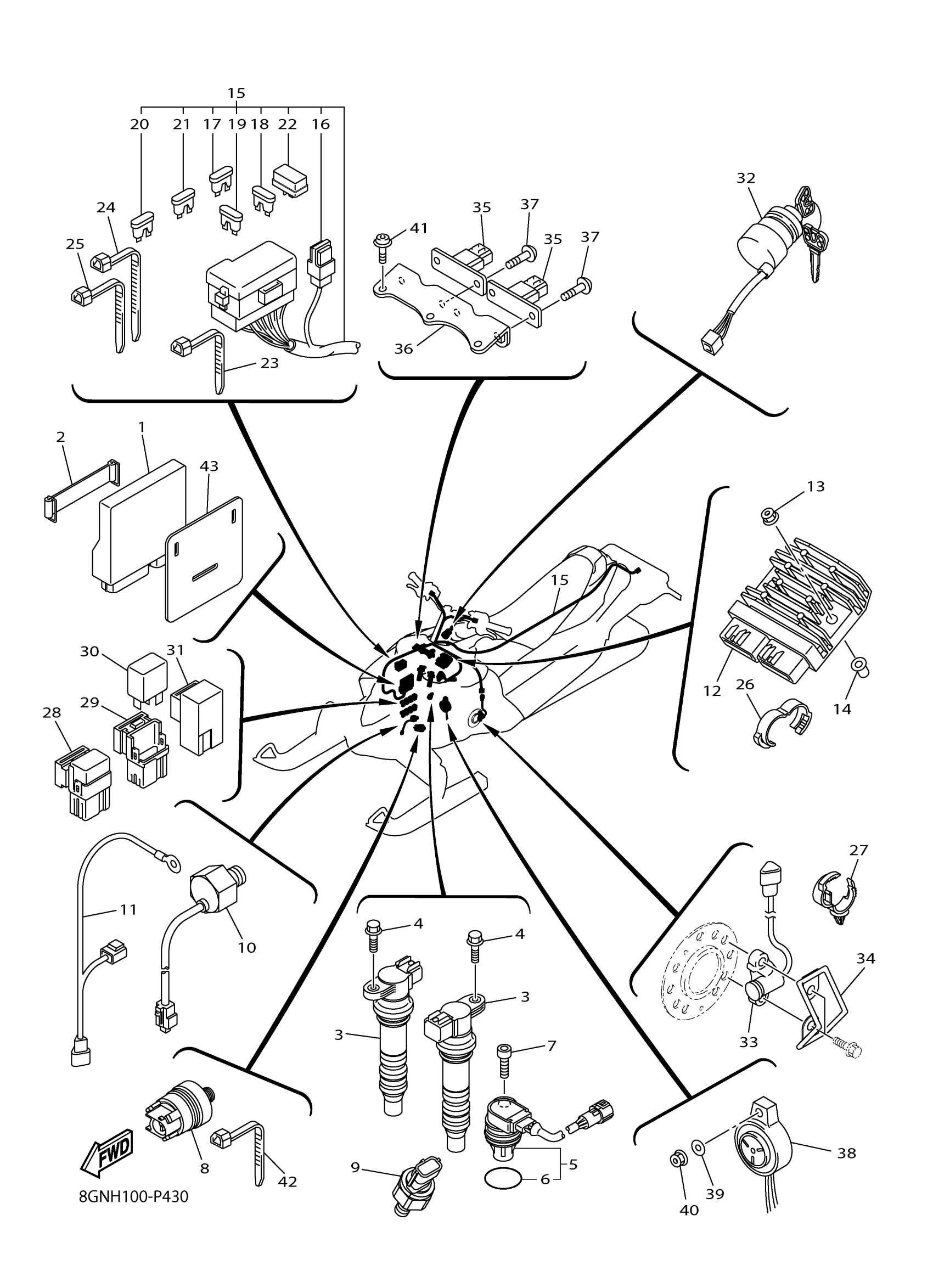

Yamaha PZ5NXJB (PHAZER XTX) 8JT9 2018 ELECTRICAL 1 Diagram

#

Description
Price

1

ENGINE CONTROL UNIT ASSY

8GP-8591A-40-00

Unavailable

2

BAND, BATTERY

2T4-82131-00-00

$8.99

3

IGNITION COIL ASSY

8FP-82310-00-00

$220.99

4

BOLT, FLANGE

95817-06025-00

Unavailable

5

SENSOR, CAM POSITION

8GC-85896-02-00

$150.99

6

O-RING

4D9-81168-00-00

$6.99

7

BOLT,SOCKET HEAD

91314-06020-00

$1.49

8

OIL PRESSURE SWITCH

8FP-82504-01-00

$71.99

9

SENDER, OIL PRESSU

8GN-83651-01-00

$251.99

10

SENSOR, KNOCK

8GC-85780-00-00

$185.99

11

LEAD WIRE ASSY

8GC-81515-10-00

Unavailable

12

RECTIFIER & REGULATOR ASSY

1D7-81960-01-00

$323.99

13

NUT, U FLANGE

95604-06200-00

$8.49

14

COLLAR

90387-06M45-00

Unavailable

15

WIRE HARNESS ASSY

8GN-82590-50-00

Unavailable

16

SLOW BLOW FUSE

JR9-82151-00-00

Unavailable

17

FUSE (15A)

67F-82151-50-00

Unavailable

18

FUSE

5JJ-82151-20-00

Unavailable

19

FUSE (7.5A-BL)

5JJ-82151-00-00

Unavailable

20

FISE (4A-BL)

5JJ-82151-40-00

Unavailable

21

. FUSE (3A)

67F-82151-30-00

Unavailable

22

DIODE ASSY

4WA-81980-00-00

Unavailable

23

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

24

CLAMP(4FM)

90464-15195-00

Unavailable

25

CLAMP(4FM)

90464-15195-00

Unavailable

26

CLAMP

90464-16001-00

Unavailable

27

CLAMP(4AP)

90464-20181-00

Unavailable

28

RELAY ASSY

5DM-81950-01-00

Unavailable

29

RELAY ASSY (8HG-10

8HG-81951-10-00

Unavailable

30

HOLDER, RELAY

8HG-81952-00-00

Unavailable

31

RELAY ASSY

8GN-81950-00-00

Unavailable

32

MAIN SWITCH ASSY

8HV-82510-00-00

Unavailable

33

SENSOR, SPEED

8GK-83755-12-00

Unavailable

34

COVER 2

8GC-2198G-00-00

Unavailable

35

SENSOR, PRESSURE

5PS-82380-00-00

Unavailable

36

PANEL 1

8GC-1441L-00-00

Unavailable

37

SCREW, PAN

98517-06012-00

Unavailable

38

BUZZER

8GL-83383-00-00

Unavailable

39

WASHER, PLATE

90201-05043-00

Unavailable

40

NUT, FLANGE

95702-05500-00

Unavailable

41

BOLT, BUTTON HEAD

92012-05008-00

Unavailable

42

CLAMP

90464-13077-00

Unavailable

43

PAD 2

8GC-77152-00-00

Unavailable
