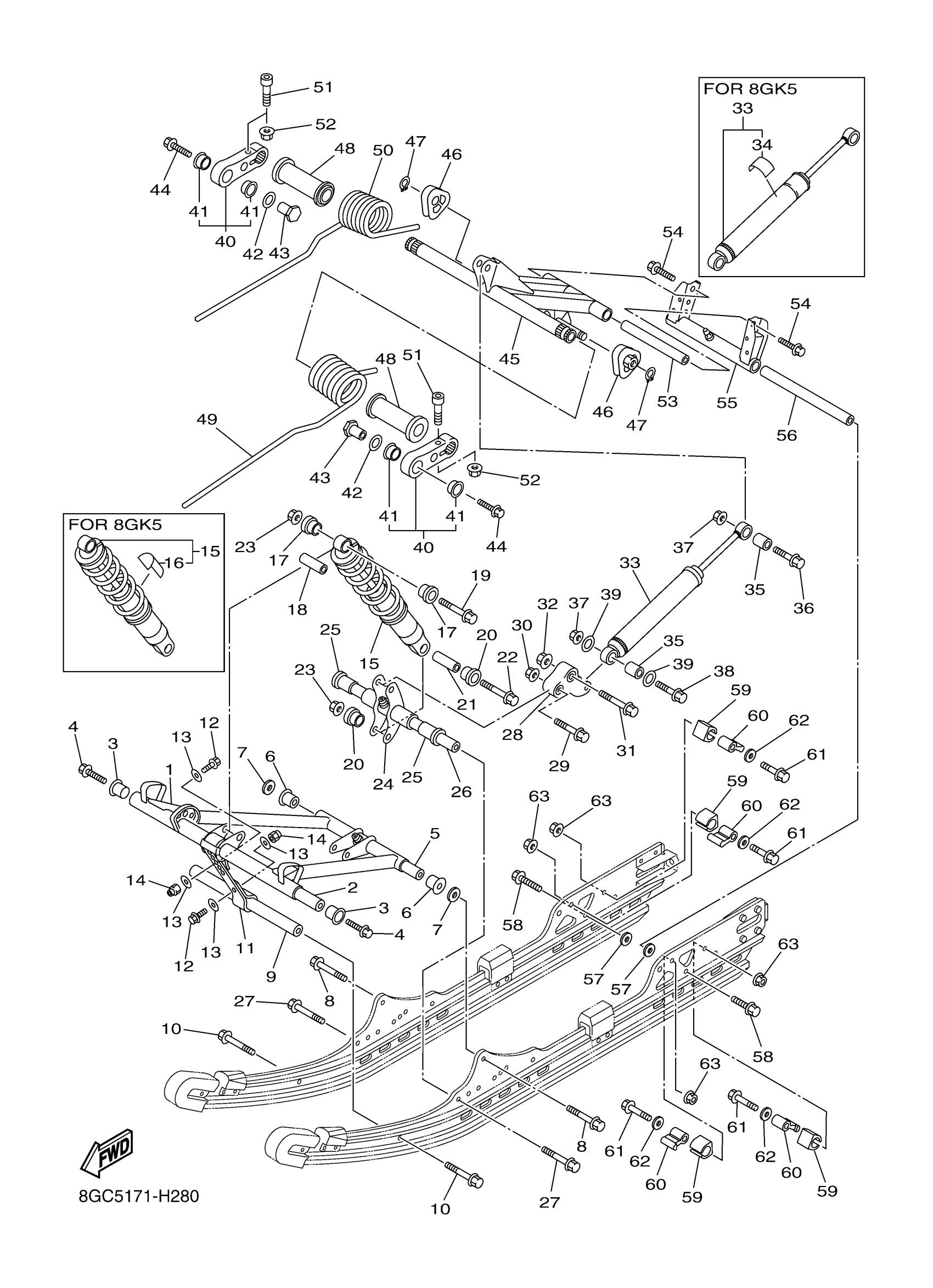

Yamaha PZ50YO (PHAZER PZ50GTYR PHAZER GT) 8GC5 2009 TRACK SUSPENSION 2 Diagram

#

Description
Price

1

ARM, PIVOT 1

8GN-47331-03-00

$420.83

2

SHAFT 1

8GC-47465-10-00

$59.86

3

BUSH

90386-22001-00

$6.08

4

BOLT

90109-10032-00

$5.86

5

SHAFT 4

8ES-47486-00-00

$36.48

6

COLLAR

90387-10022-00

$16.62

7

WASHER, PLATE

90201-10064-00

$3.60

8

BOLT, FLANGE

90105-10209-00

$6.82

9

SHAFT 3

8ES-47485-00-00

$50.74

10

BOLT, FLANGE

90105-10209-00

$6.82

11

STOPPER 1

8GC-47495-00-00

$58.95

12

BOLT, HEXAGON

97017-06025-00

$2.98

13

WASHER, PLATE

90201-06036-00

$6.26

14

NUT, NYLON

95707-06300-00

$3.20

15

SHOCK ABSORBER 2

8GC-47481-00-00

Unavailable

15

SHOCK ABSORBER 2

8GK-47481-C0-00

$520.99

16

LABEL, WARNING

4AA-22259-60-00

$6.02

17

COLLAR

90387-15009-00

$9.32

18

COLLAR

90387-10054-00

$6.92

19

BOLT, FLANGE

95812-10060-00

$7.00

20

BUSH, SOLID(8CM)

90381-14101-00

$7.48

21

COLLAR (8U7)

90387-105G5-00

$7.35

22

BOLT(88R)

90101-10738-00

$6.28

23

NUT, S/L FLANGE

95602-10200-00

$2.29

24

BRACKET, ARM PIVOT

8GT-47349-01-00

$70.67

25

BUSH

90386-20001-00

$8.97

26

SHAFT 5

8GN-47487-00-00

$91.60

27

BOLT, FLANGE

90105-10209-00

$6.82

28

BRACKET

8GN-4741B-00-00

$414.29

29

BOLT, FLANGE(87Y)

95817-10055-00

$4.54

30

NUT, S/L FLANGE

95602-10200-00

$2.29

31

BOLT, FLANGE

95812-12060-00

$14.00

32

NUT, SELF-LOCKING

95602-12200-00

$3.82

33

SHOCK ABSORBER

8GC-47480-00-00

Unavailable

33

SHOCK ABSORBER

8GK-47480-C0-00

$373.62

34

LABEL, WARNING

4AA-22259-60-00

$6.02

35

COLLAR

90387-10023-00

$17.41

36

BOLT, FLANGE

95812-10040-00

$7.42

37

NUT, S/L FLANGE

95602-10200-00

$2.29

38

BOLT, FLANGE

90105-10295-00

Unavailable

39

WASHER, PLATE

90201-10052-00

$6.28

40

ARM, REAR PIVOT 1

8GC-47361-00-00

$84.69

41

BUSH, SOLID

90381-20002-00

$14.28

42

WASHER, PLATE(3HN)

90201-225M9-00

$7.26

43

NUT

8GC-47368-00-00

$45.83

44

BOLT, FLANGE

95812-12030-00

$7.45

45

ARM, PIVOT 2

8GC-47332-02-00

$405.46

46

HOOK 2

8ES-47447-00-00

$17.94

47

CIRCLIP(13H)

99009-14400-00

$2.48

48

PROTECTOR

8GC-47445-00-00

$25.48

49

SPRING, REAR 1

8GC-47473-00-00

$260.08

49

SPRING, REAR 1

8GC-47473-00-00

$260.08

49

SPRING, REAR 1

8GK-47473-00-00

$292.40

49

SPRING, REAR 1

8GK-47473-00-00

$292.40

49

SPRING, REAR 1

8GP-47473-00-00

$234.25

50

SPRING, REAR 2

8GC-47474-00-00

$260.08

50

SPRING, REAR 2

8GC-47474-00-00

$260.08

50

SPRING, REAR 2

8GK-47474-00-00

$292.40

50

SPRING, REAR 2

8GK-47474-00-00

$292.40

50

SPRING, REAR 2

8GP-47474-00-00

$234.25

51

BOLT, SOCKET

91317-08045-00

$6.82

52

NUT, SELF-LOCKING

95602-08200-00

$2.77

53

SHAFT 6

8GC-47488-00-00

$37.00

54

BOLT, FLANGE

95817-10030-00

$6.17

55

BRACKET 3

8GC-47417-A0-00

$83.05

56

SHAFT 3

8FU-47485-00-00

$45.37

57

WASHER PLATE (789)

90201-10136-00

$7.26

58

BOLT, FLANGE

95817-10030-00

$6.17

59

STOPPER 2

8GC-47496-00-00

$4.22

60

COLLAR

8GN-47338-00-00

$28.02

61

BOLT, HEXAGON

97017-10050-00

Unavailable

62

WASHER, PLATE

90201-10061-00

$5.22

63

NUT, S/L FLANGE

95602-10200-00

$2.29
