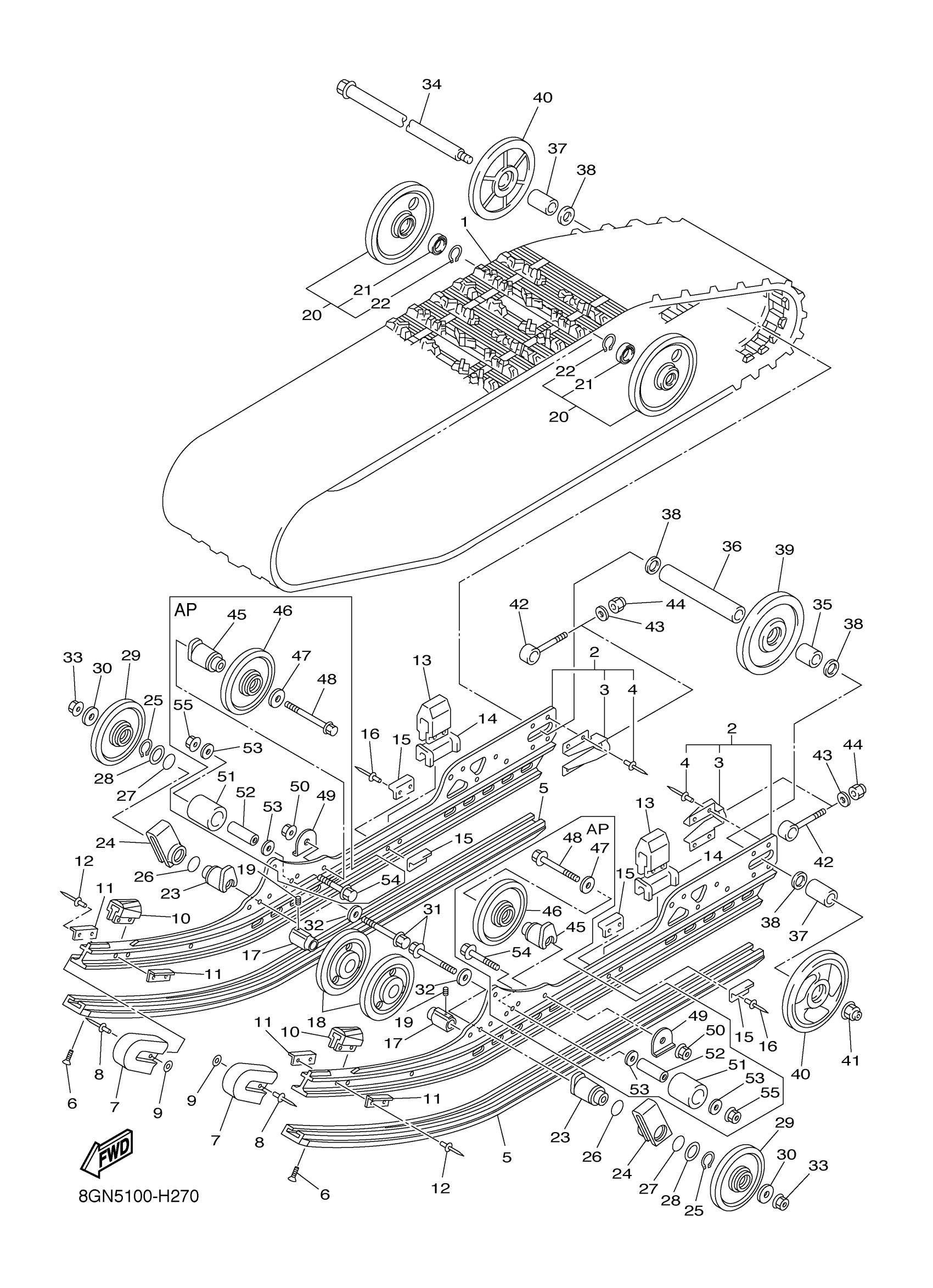

Yamaha PZ50YO (PHAZER PZ50GTYR PHAZER GT) 8GC5 2009 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

TRACK ASSY

8GK-47110-00-00

Unavailable

1

TRACK ASSY

8GN-47110-00-00

$1,755.99

2

FRAME, SLIDING

8GC-W4741-00-00

$263.68

3

BRACKET

8DM-4741B-00-00

$39.86

4

RIVET

8V0-47468-00-00

$7.54

5

SLIDE RUNNER BLK 136''

SMA-8FT92-00-BK

$27.82

6

SCREW, CROSSRECESS (8G6)

90151-06005-00

$7.18

7

RUNNER, SLIDING 2

8ED-47422-00-00

$42.54

8

RIVET BLIND

90267-48194-00

$2.20

9

WASHER, PLATE(8CM)

90201-047R8-00

$2.31

10

DAMPER 1

8ES-47456-00-00

$6.28

11

PLATE, DAMPER

8K2-47458-01-00

$2.45

12

RIVET, BLIND

90267-48199-00

$2.62

13

DAMPER 2

8CM-47457-00-00

$8.78

14

SPACER

8CM-47341-00-00

$7.37

15

PLATE, DAMPER

8AX-47458-00-00

$8.08

16

RIVET, BLIND

90267-48199-00

$2.62

17

COLLAR

8ES-47319-01-00

$26.20

18

SUSPENSION WHEEL ASSY

8ET-47310-00-00

$76.81

19

BOLT, SET (8K2)

90113-06039-00

$6.97

20

GUIDE WHEEL COMP.

8GC-47530-10-00

$91.57

21

BEARING

93306-00616-00

$43.52

22

CIRCLIP

99009-55500-00

$7.26

23

BRACKET 7

8ES-47419-10-00

$21.03

24

HOOK 1

8ES-47446-00-00

$16.85

25

CIRCLIP(6U2)

93410-35M10-00

$4.54

26

O-RING (16G)

93210-35537-00

$11.32

27

O-RING (21A)

93210-34633-00

$8.31

28

WASHER, PLATE

90201-35013-00

$3.49

29

SUSPENSION WHEEL ASSY

8ES-47310-00-00

$67.31

30

WASHER, PLATE

90201-10038-00

$5.12

31

BOLT, FLANGE

95812-10080-00

$7.18

32

WASHER, PLATE (17K)

90201-106F2-00

$7.66

33

NUT, S/L FLANGE

95602-10200-00

$2.29

34

REAR AXLE COMP.

8L8-47520-10-00

$67.31

35

COLLAR

90387-20015-00

$23.32

36

COLLAR

90387-20016-00

$20.42

37

COLLAR

90387-20019-00

$22.38

38

WASHER, PLATE(89W)

90201-205R6-00

$10.68

39

GUIDE WHEEL ASSY

8CR-47550-10-00

Unavailable

40

WEIGHT

8EK-47550-11-00

Unavailable

41

NUT, U FLANGE

95602-14200-00

$9.89

42

COLLAR 3

8DM-47479-00-00

$15.04

43

WASHER, PLATE

92990-10600-00

$2.61

44

NUT, NYLON

95707-10300-00

$6.68

45

BRACKET 7

8ES-47419-00-00

$21.03

46

SUSPENSION WHEEL ASSY

8ES-47310-10-00

$71.27

47

WASHER, PLATE(42X)

90201-105H3-00

$5.68

48

BOLT, FLANGE

95812-10080-00

$7.18

49

WASHER, CLAW

90214-10003-00

$19.45

50

NUT, S/L FLANGE

95602-10200-00

$2.29

51

ROLLER

8ES-47429-00-00

$31.77

52

COLLAR

90387-10025-00

$8.85

53

WASHER, PLATE

90201-10052-00

$6.28

54

BOLT, FLANGE

95812-10060-00

$7.00

55

NUT, S/L FLANGE

95602-10200-00

$2.29
