- PZ50YO (PHAZER PZ50GTYR PHAZER GT) 8GC5 2009
TRACK DRIVE 2

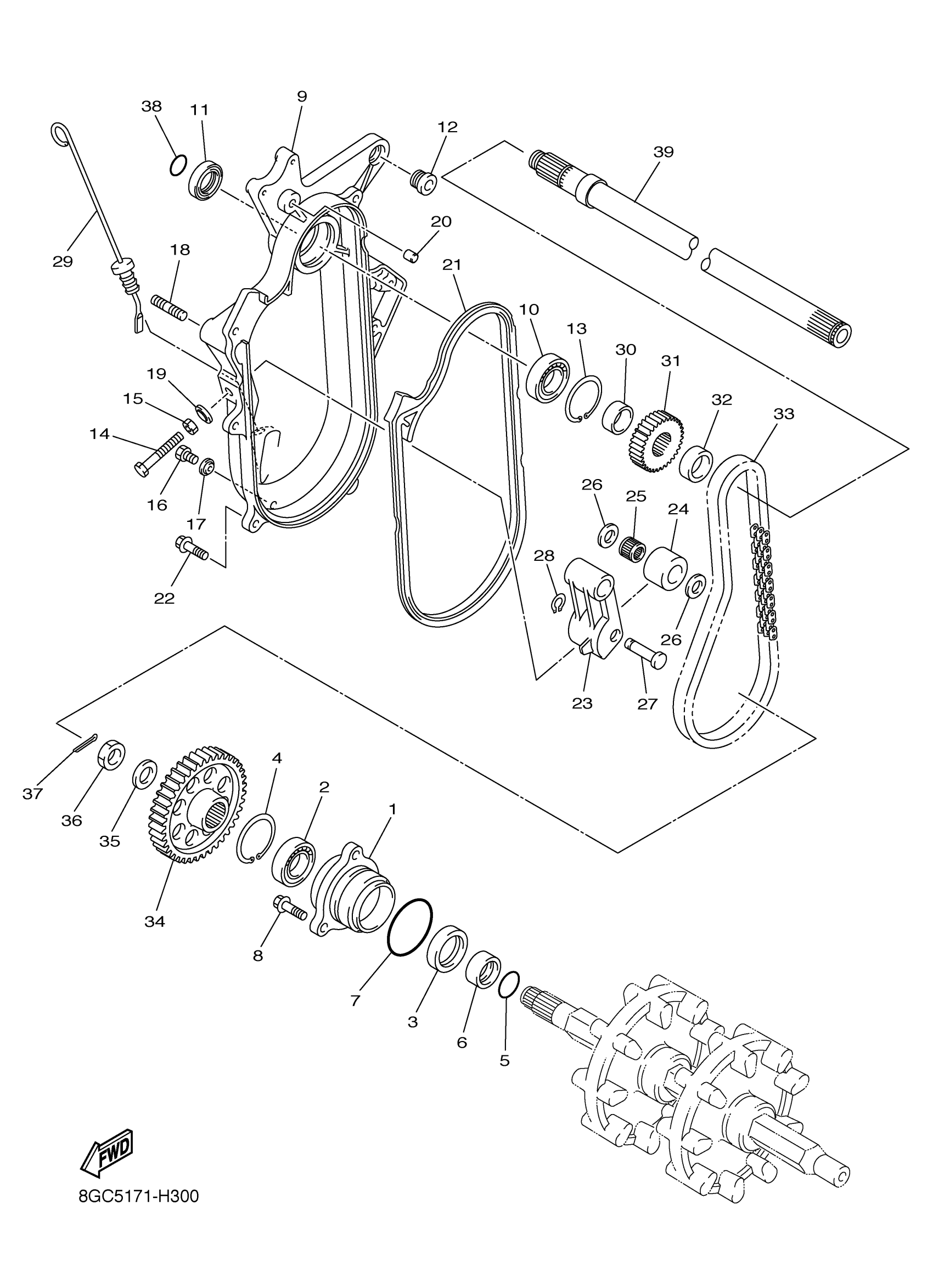

Yamaha PZ50YO (PHAZER PZ50GTYR PHAZER GT) 8GC5 2009 TRACK DRIVE 2 Diagram
#
1
HOUSING, BEARING 2
8GC-47633-00-00
Unavailable
2
BEARING
93306-20592-00
$59.99
3
OIL SEAL
93102-35010-00
$23.99
4
CIRCLIP(26H)
99009-52500-00
$12.49
5
O-RING (169)
93210-25071-00
$8.49
6
COLLAR(8CJ)
90387-2508C-00
$46.99
7
O-RING
93210-62269-00
Unavailable
8
BOLT, FLANGE(4LN)
95817-08025-00
$8.49
9
CAP, HOUSING
8GC-47543-01-00
$238.99
10
BEARING(1FF)
93306-00519-00
$36.99
11
OIL SEAL (697)
93102-32M07-00
$18.99
12
NUT(8CJ)
90179-10679-00
Unavailable
13
CIRCLIP(48Y)
99009-47500-00
$9.49
14
BOLT
90101-10026-00
$3.28
15
NUT(3BM)
95314-10600-00
$2.39
16
BOLT, HEXAGON
97017-08016-00
Unavailable
17
WASHER, SEAL(8AB)
90210-08017-00
Unavailable
18
BOLT, STUD 3
95617-08618-00
Unavailable
19
WASHER SEAL 256111730200
90210-10004-00
Unavailable
20
PIN, DOWEL
91811-10005-00
Unavailable
21
RING, HOUSING
8GC-47558-01-00
Unavailable
22
BOLT, FLANGE(6TA)
95817-08030-00
Unavailable
23
HOLDER
8GC-47613-00-00
Unavailable
24
WHEEL
8FA-47612-00-00
Unavailable
25
BEARING, CYLINDRICAL(1VJ)
93310-212R6-00
Unavailable
26
WASHER, PLATE (5N6)
90201-127E1-00
Unavailable
27
PIN
90249-12003-00
Unavailable
28
CIRCLIP(10Y)
99009-12400-00
Unavailable
29
LEVEL, OIL
8GC-47546-00-00
Unavailable
30
COLLAR
90387-25020-00
Unavailable
31
SPROCKET, CHAIN DRIVE
8GC-17682-80-00
Unavailable
32
COLLAR
90387-2508D-00
Unavailable
33
CHAIN
94591-63080-00
Unavailable
34
SPROCKET, CHAIN DRIVEN
8GC-47587-10-00
Unavailable
35
WASHER 810475810000
90208-22001-00
Unavailable
36
NUT (821-47579-00)
90170-22094-00
Unavailable
37
PIN, COTTER
91490-30030-00
Unavailable
38
O-RING
93210-20001-00
Unavailable
39
SHAFT, SECONDARY
8GC-17681-00-00
Unavailable
