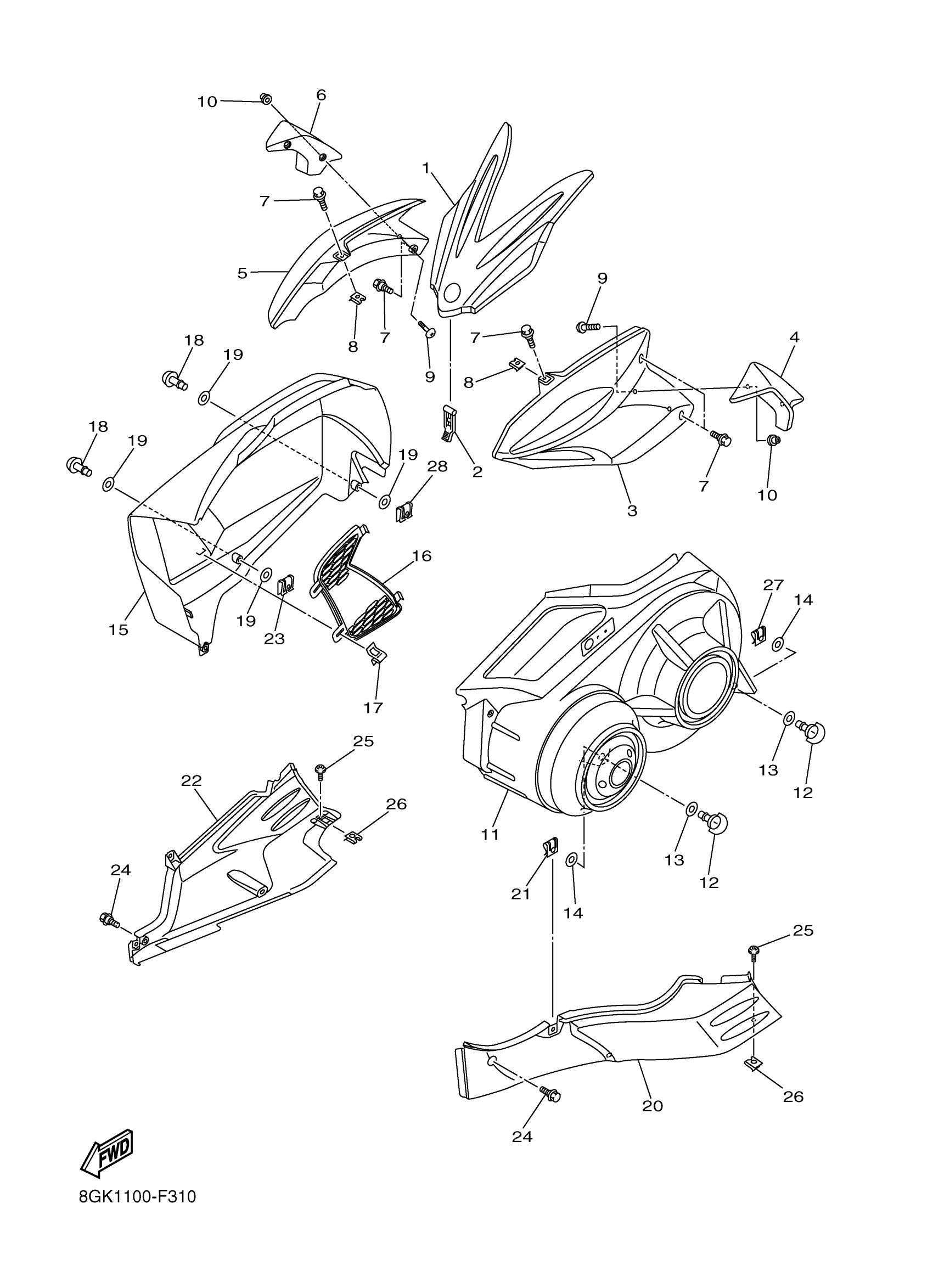

Yamaha PZ50YO (PHAZER PZ50GTYR PHAZER GT) 8GC5 2009 SHROUD Diagram

#

Description
Price

1

SHROUD

8GC-77111-10-00

$52.58

2

BAND

59V-21646-00-00

$19.49

3

PANEL 1

8GK-2835U-40-00

$82.65

4

PROTECTOR, SIDE 1

8GK-77561-00-00

$42.89

5

PANEL 2

8GK-2835V-40-00

$82.65

6

PROTECTOR, SIDE 2

8GK-77562-00-00

$65.65

7

BOLT

90109-06220-00

$7.43

8

NUT, SPRING

90183-06100-00

$7.88

9

SCREW, BIND (8K2)

98902-05016-00

$1.23

10

NUT(1KT)

90179-05523-00

$4.33

11

HOOD 3

8GC-2197H-00-00

$152.05

12

HEAD

3FV-28386-00-00

$22.96

13

WASHER, SPECIAL 1

2TK-21757-00-00

$1.54

14

WASHER, SPECIAL 1

5TJ-21757-00-00

$6.43

15

HOOD 4

8GC-2198H-01-00

$140.37

16

LOUVER 4

8GC-77134-00-00

$25.62

17

CLIP

90468-06001-00

$3.49

18

HEAD

5PW-28386-00-00

$15.04

19

WASHER, SPECIAL 1

2TK-21757-00-00

$1.54

20

FRAME UNDER 1

8GC-2196A-00-00

$68.74

21

PLATE, SPRING

4XV-2177L-01-00

$6.20

22

FRAME, UNDER 2

8GC-2196E-00-00

$71.52

23

PLATE, SPRING

5PW-2177L-01-00

$6.23

24

BOLT

90109-06220-00

$7.43

25

SCREW

90149-06105-00

$4.43

26

NUT, SPRING

90183-06100-00

$7.88

27

PLATE, SPRING

4XV-2177L-01-00

$6.20

28

PLATE, SPRING

5PW-2177L-01-00

$6.23
