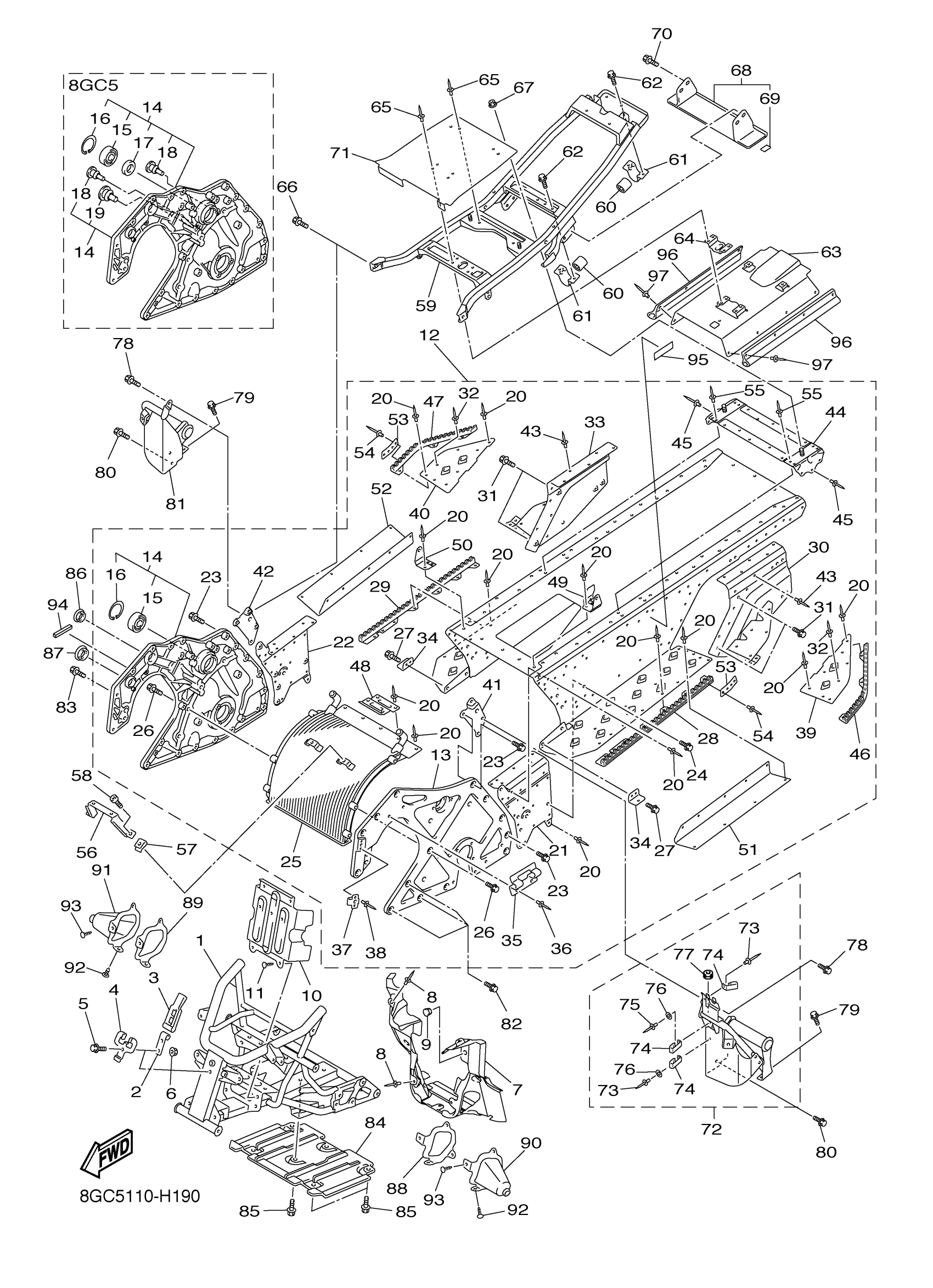

Yamaha PZ50YO (PHAZER PZ50GTYR PHAZER GT) 8GC5 2009 FRAME Diagram

#

Description
Price

1

FRONT FRAME COMP.

8GK-21940-01-00

$1,159.99

2

BRACKET 3

8GC-2175V-00-00

$7.25

3

BAND

59V-21646-00-00

$19.49

4

BRACKET 4

8GC-2175W-00-00

$5.71

5

BOLT, BUTTON HEAD

92017-05040-00

$2.08

6

NUT, FLANGE

95702-05500-00

$0.74

7

PANEL, SUB FRAME 1

8GC-21912-01-00

$39.80

8

RIVET, BLIND (8R6)

90267-48086-00

$3.49

9

PLUG(2GU)

90338-12192-00

$6.18

10

PROTECTOR, FRAME A

8GC-2195A-10-00

$25.12

11

RIVET

90269-05003-00

$1.78

12

REAR FRAME COMP.

8GC-21950-20-00

$4,436.99

12

REAR FRAME COMP.

8GK-21950-40-00

Unavailable

13

REINF., PANELL FRAME 1

8GC-21991-00-00

$490.99

14

HOUSING, REINF SUB-ASSY(R.H)

8GC-21930-10-00

Unavailable

14

HOUSING, REINF SUB-ASSY(R.H)

8GK-21930-20-00

$922.99

15

BEARING

93306-20532-00

$56.05

16

CIRCLIP(26H)

99009-52500-00

$10.68

17

OIL SEAL(85G)

93102-26398-00

$12.05

18

PLUG

90338-07008-00

$3.37

19

.. PLUG

90338-12008-00

Unavailable

20

RIVET, BLIND

90267-47195-00

$3.33

21

BRACKET, MAIN TRACK 1

8GK-21943-00-00

$63.40

22

BRACKET, MAIN TRACK 2

8GK-21953-00-00

$63.40

23

BOLT, FLANGE

95022-08020-00

$6.78

24

BOLT, FLANGE

95817-08012-00

$3.98

25

HEAT EXCHANGER ASSY

8GC-12440-00-00

$1,138.99

26

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

27

BOLT, FLANGE

90105-06109-00

$6.31

28

REINFORCEMENT, FOOTREST 1

8GC-21926-01-00

$104.06

29

REINFORCEMENT, FOOTREST 2

8GC-21936-01-00

$104.06

30

BRACKET, RR.TRACK SUSPENTION 1

8GK-21944-00-00

$130.75

31

BOLT, FLANGE

95822-08014-00

$6.68

32

RIVET, BLIND

90267-47195-00

$3.33

33

BRACKET, RR.TRACK SUSPENTION 2

8GK-21954-00-00

$130.75

34

PATCH 7

8GC-21967-00-00

$5.08

35

HOOK

8GC-21973-00-00

$7.34

36

RIVET, BLIND

90267-47195-00

$3.33

37

PLATE, SPRING

2TK-2177L-00-00

$5.38

38

RIVET, BLIND

90267-32192-00

$1.66

39

BRACKET, FOOTREST 1

8GC-27452-00-00

$28.02

40

BRACKET, FOOTREST 2

8GC-27462-00-00

$28.02

41

PATCH 3

8GC-21963-00-00

$21.43

42

PATCH 4

8GC-21964-00-00

$21.43

43

RIVET, BLIND

90267-47195-00

$3.33

44

BRACKET, SEAT 1

8GK-21341-00-00

$52.82

45

RIVET, BLIND

90267-47195-00

$3.33

46

REINFORCEMENT, RR. FOOTREST 1

8GC-21927-01-00

$116.09

47

REINFORCEMENT, RR. FOOTREST 2

8GC-21937-01-00

$116.09

48

STAY 2

8GC-2164G-00-00

$9.09

49

BRACKET

8GC-21238-00-00

$12.72

50

BRACKET 2

8GC-21239-00-00

$10.78

51

PATCH 1

8GC-21961-00-00

$41.62

52

PATCH 2

8GC-21962-00-00

$41.62

53

PATCH 8

8GC-21988-00-00

$3.25

54

RIVET, BLIND

90267-48010-00

$2.00

55

RIVET, BLIND

90267-47197-00

$1.56

56

STAY 1

8GC-2164F-00-00

$14.55

57

NUT, SPRING(4ES)

90183-06069-00

$5.93

58

BOLT,SOCKET

91317-06012-00

$6.17

59

SEAT RAIL COMP

8GK-21160-00-00

Unavailable

60

DAMPER, MUFFLER

8GC-14747-00-00

$19.14

61

BRACKET, DAMPER

8GC-21121-00-00

$8.37

62

BOLT, FLANGE

95812-06010-00

$2.75

63

SHIELD, HEAT

8GC-2199H-10-00

$55.37

64

BRACKET, SILENCER 1

8GC-1467H-00-00

$10.91

65

RIVET, BLIND

90267-47195-00

$3.33

66

BOLT, FLANGE(3HP)

95817-10016-00

$6.17

67

NUT, SELF-LOCKING

90185-08169-00

$7.09

68

SEAT BRACKET ASSY

8GC-24708-01-00

$76.00

69

PAD 1

8GC-77151-00-00

$2.57

70

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

71

PANEL, SUB FRAME 6

8GC-21917-00-00

$41.26

72

FOOTREST COMP. 1

8GJ-21960-00-00

$230.08

73

RIVET, BLIND

90267-48010-00

$2.00

74

CLAMP(51Y)

90465-08277-00

$9.43

75

RIVET, BLIND (22W)

90267-48083-00

$2.78

76

WASHER, PLATE (34L)

90201-043H7-00

$2.57

77

GROMMET (1E5)

90480-13163-00

$6.33

78

BOLT, FLANGE

95814-08016-00

$6.68

79

BOLT, FLANGE

95022-06012-00

$3.00

80

BOLT, FLANGE

95812-06014-00

$5.45

81

FOOTREST COMP. 2

8GJ-21970-00-00

$172.75

82

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

83

BOLT, FLANGE(JN5)

95817-08016-00

$4.12

84

PROTECTOR

8GC-2193A-00-00

$34.83

85

BOLT

90109-06285-00

$3.40

86

GROMMET

90480-27001-00

$1.74

87

GROMMET

90480-40003-00

$4.11

88

PLATE, STRG BRACKET 1

8GC-2195E-00-00

$14.58

89

PLATE, STRG BRACKET 2

8GC-2195F-00-00

$8.12

90

COVER 1

8GC-2198F-00-00

$33.98

91

COVER 3

8GC-2198J-00-00

$20.23

92

RIVET

90269-05003-00

$1.78

93

RIVET

90269-05002-00

$6.32

94

DAMPER 1

8GL-77319-00-00

$1.46

95

PLATE, EPA OFFROAD 2

8GC-2179D-20-00

$3.05

96

DAMPER

8GC-21852-00-00

$23.00

97

RIVET, BLIND

90267-48024-00

$1.88
