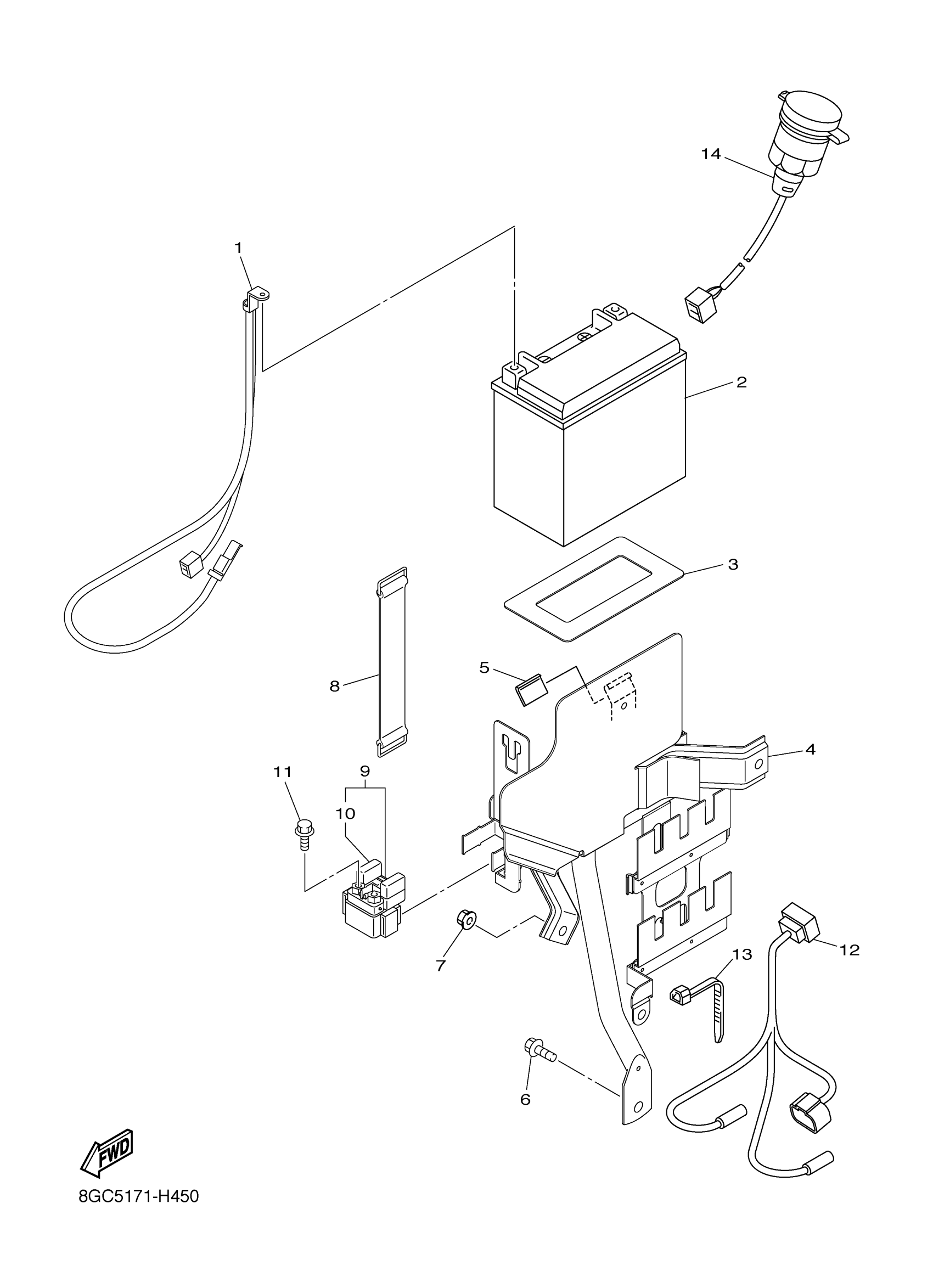

Yamaha PZ50YO (PHAZER PZ50GTYR PHAZER GT) 8GC5 2009 ELECTRICAL 2 Diagram

#

Description
Price

1

WIRE, MINUS LEAD

8GC-82116-00-00

Unavailable

2

BATTERY ASSY (YUASA YTX14-BS)

BTY-YTX14-B5-00

Unavailable

3

SEAT, BATTERY

5LP-82122-00-00

Unavailable

4

BRACKET, BATTERY

8GK-2199G-01-00

Unavailable

5

PAD 1

8GC-77151-00-00

$4.77

6

BOLT, FLANGE

95814-08016-00

$9.49

7

NUT,FLANGE(J10)

95702-08500-00

$1.43

8

BAND, BATTERY

8DM-82131-10-00

$16.49

9

STARTER RELAY ASSY (RC19-016)

3EL-81940-02-00

$28.99

10

FUSE (10A)

42X-82151-00-00

$4.32

11

BOLT, FLANGE

95022-06008-00

$8.49

12

WIRE, SUB LEAD

8GK-82509-01-00

Unavailable

13

CLAMP

90464-13077-00

$8.49

14

TERMINAL COMP.

8FP-8254B-00-00

Unavailable
