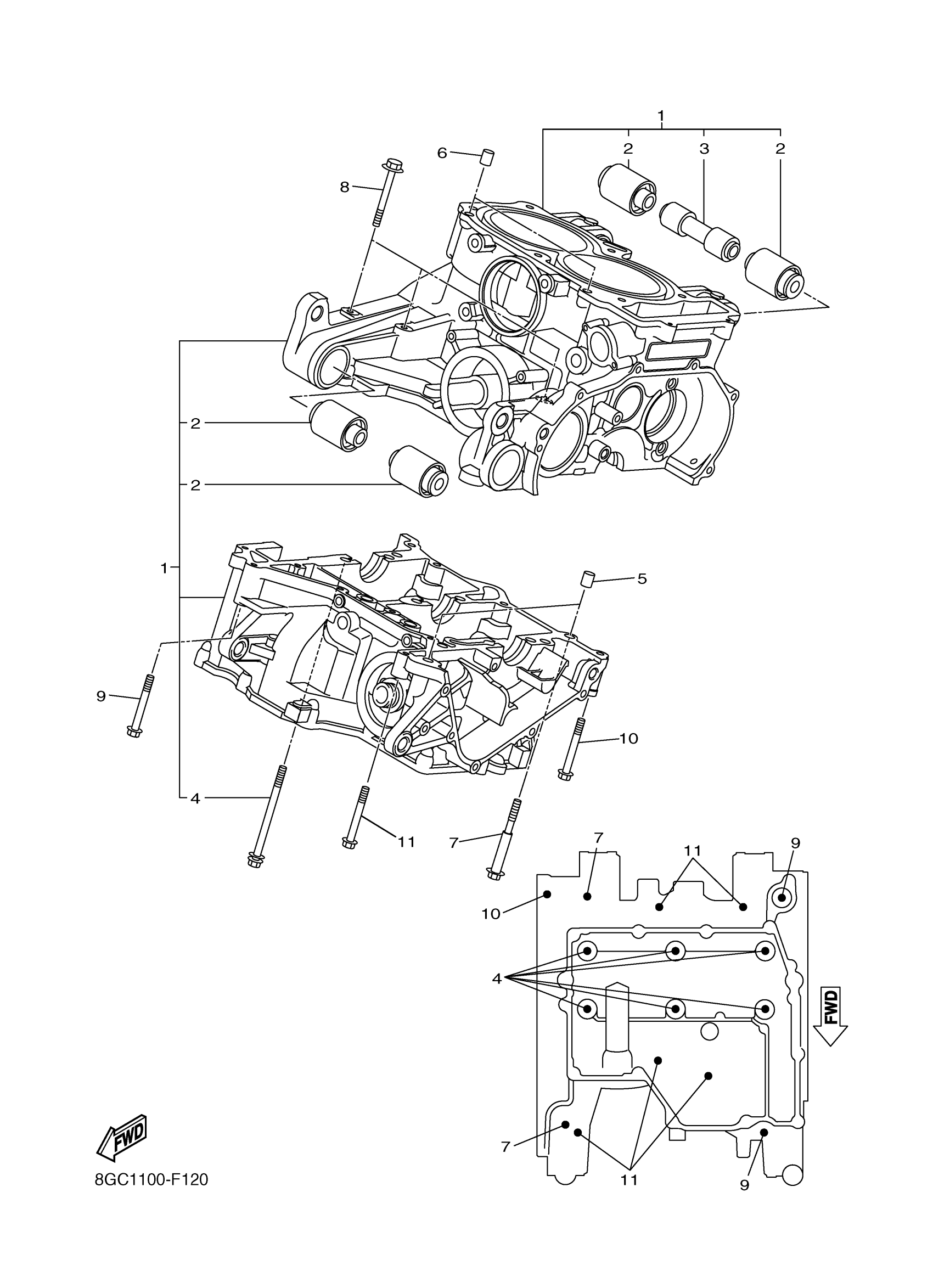

Yamaha PZ50YO (PHAZER PZ50GTYR PHAZER GT) 8GC5 2009 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

8GC-15100-09-00

Unavailable

2

DAMPER

8GC-2139X-00-00

$37.77

3

SPACER

8GC-21459-00-00

$18.25

4

BOLT, WITH WASHER

90119-09004-00

$9.17

5

PIN, DOWEL(3VD)

99530-10114-00

$2.23

6

PIN, DOWEL(3VD)

99530-10114-00

$2.23

7

BOLT

90109-06100-00

$7.60

8

BOLT, FLANGE

95812-06070-00

$6.26

9

BOLT, FLANGE

95812-06050-00

$1.51

10

BOLT, FLANGE

90105-06095-00

$2.43

11

95812-06035

95812-06035-00

$5.35
