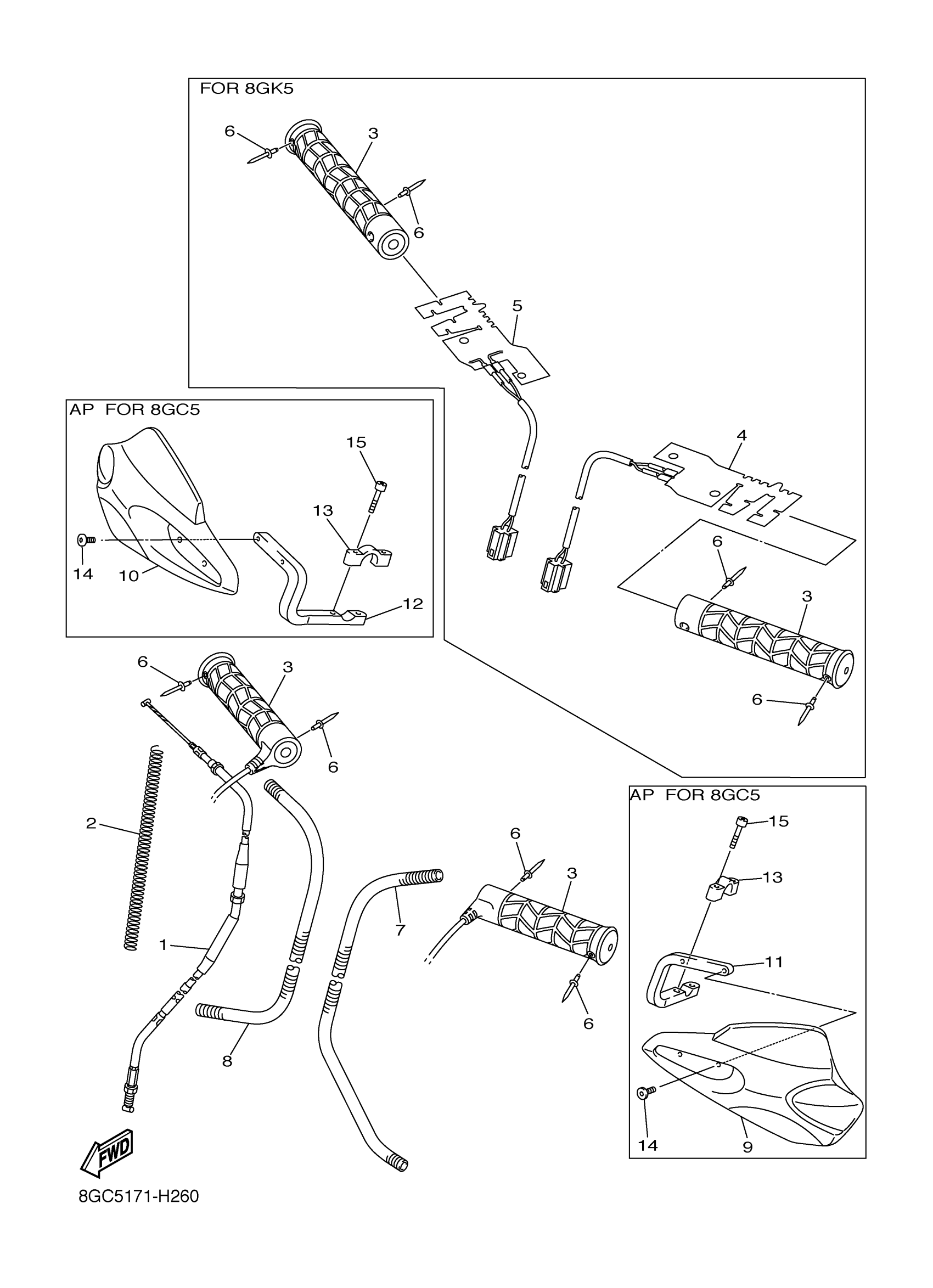

Yamaha PZ50YO (PHAZER PZ50GTYR PHAZER GT) 8GC5 2009 CONTROL CABLE Diagram

#

Description
Price

1

CABLE, THROTTLE 1

8GC-26311-00-00

$45.66

2

SPRING

8GC-26314-00-00

$17.51

3

GRIP ASSY

8GC-26240-01-00

$107.29

3

GRIP

8GF-26241-00-00

$23.83

4

GRIP,WARMER

8HA-2626A-00-00

Unavailable

5

GRIP,WARMER

8HA-2626A-10-00

$131.46

6

RIVET (856)

90267-48014-00

$3.11

7

TUBE, CORD

8FP-82351-00-00

$9.66

8

TUBE, CORD

8GC-82351-00-00

$7.40

9

GUARD, BRUSH 1

8GL-26141-00-00

$26.26

9

GUARD, BRUSH 1

8GL-26141-30-00

$25.22

10

GUARD, BRUSH 2

8GL-26142-00-00

$18.69

10

GUARD, BRUSH 2

8GL-26142-30-00

$25.22

11

BRACKET 3

8GL-2612L-01-00

$58.91

12

BRACKET 4

8GL-2612M-01-00

$62.72

13

BRKT 2

8GL-2612K-00-00

$17.17

14

BOLT(3XP)

90109-065F3-00

$6.74

15

BOLT

91312-05030-00

$2.92
