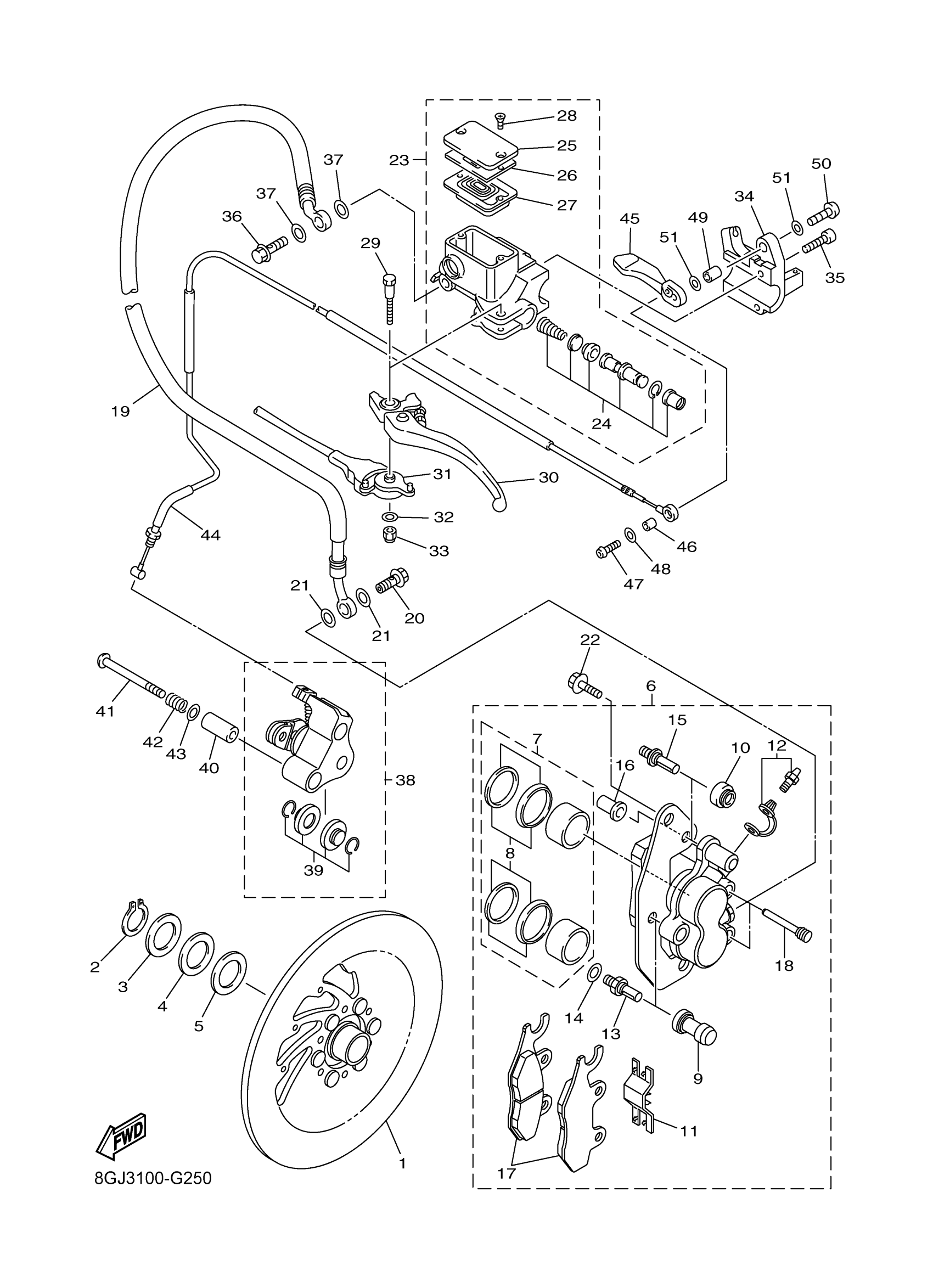

Yamaha PZ50YO (PHAZER PZ50GTYR PHAZER GT) 8GC5 2009 BRAKE Diagram

#

Description
Price

1

DISK BRAKE ASSY

8GC-2581T-10-00

Unavailable

2

CIRCLIP(1AR)

99009-20400-00

$6.17

3

WASHER, PLATE(61X)

90201-20M04-00

$6.09

4

WASHER, PLATE (10V)

90201-203F0-00

$3.25

5

WASHER, PLATE

90201-20021-00

$10.68

6

CALIPER ASSY (LEFT)

8GC-2580T-00-00

$484.72

7

PISTON ASSY, CALIPER

3LD-25802-00-00

$48.32

8

CALIPER SEAL KIT

3JD-25803-00-00

$18.62

9

BOOT 2

1UY-25937-51-00

$12.27

10

BOOT, CALIPER

3JD-25917-00-00

$7.51

11

SPRING, PAD

3LD-25934-01-00

$26.56

12

BLEED SCREW KIT

36Y-W0048-00-00

$8.51

13

BOLT

1UY-25926-51-00

$3.34

14

WASHER, SPRING

1UY-25938-51-00

$7.51

15

BOLT

3JD-25926-00-00

$6.43

16

NUT

3JD-25961-00-00

$6.94

17

BRAKE PAD KIT

8GC-W0045-00-00

$57.17

18

PIN, PAD

3FV-25924-00-00

$20.15

19

HOSE, BRAKE 1

8GC-25872-10-00

$64.08

20

BOLT, UNION

90401-10015-00

$9.89

21

WASHER, PLATE(481)

90201-10118-00

$2.91

22

BOLT, FLANGE

90105-10096-00

$8.86

23

MASTER CYLINDER SUB ASSY

8GC-W2587-00-00

$223.95

24

CYLINDER KIT, MASTER

8CR-W0041-00-00

$47.42

25

. CAP, RESERVOIR

8GC-25852-00-00

Unavailable

26

PLATE, DIAPHRAGM

3GM-2585B-20-00

$16.11

27

DIAPHRAGM, RESERVOIR

55U-25854-00-00

$21.68

28

SCREW, FLAT

98707-04012-00

$1.43

29

BOLT, LEVER

8CR-2589F-00-00

$6.06

30

LEVER 1

8CR-83912-00-00

$39.83

30

LEVER 1

8DN-83912-00-00

$51.94

31

STOP SWITCH ASSY

8FP-82530-00-00

$44.88

32

WASHER, PLAIN

8CR-8398X-00-00

$8.77

33

NUT, NYLON

95707-05300-00

$2.74

34

BRACKET, MASTER CYLINDER

8GC-25867-00-00

$32.18

35

BOLT

5YU-26332-00-00

$1.88

36

BOLT, UNION

90401-10015-00

$9.89

37

WASHER, PLATE(481)

90201-10118-00

$2.91

38

PARKING BRAKE COMP.

8FU-25970-01-00

$196.72

39

PARKING BRAKE PAD KIT

8FA-W0045-00-00

$48.30

40

COLLAR

90387-06058-00

$5.89

41

BOLT

90111-06042-00

$2.00

42

SPRING, COMPRESSION

90501-120A0-00

$6.32

43

WASHER 6474553400

90201-12161-00

$4.67

44

CABLE, BRAKE

8GC-26351-10-00

$43.42

45

LEVER 2

8FA-83922-00-00

$29.97

46

COLLAR

90387-06043-00

$6.68

47

BOLT, BUTTON HEAD

92012-06014-00

$6.18

48

. WASHER, PLATE

90201-06050-00

Unavailable

49

COLLAR

90387-081M9-00

$1.89

50

BOLT,HEX. SOCKET BUTTON

90111-08054-00

$1.54

51

WASHER PLATE 141181390000

90201-08085-00

$6.38
