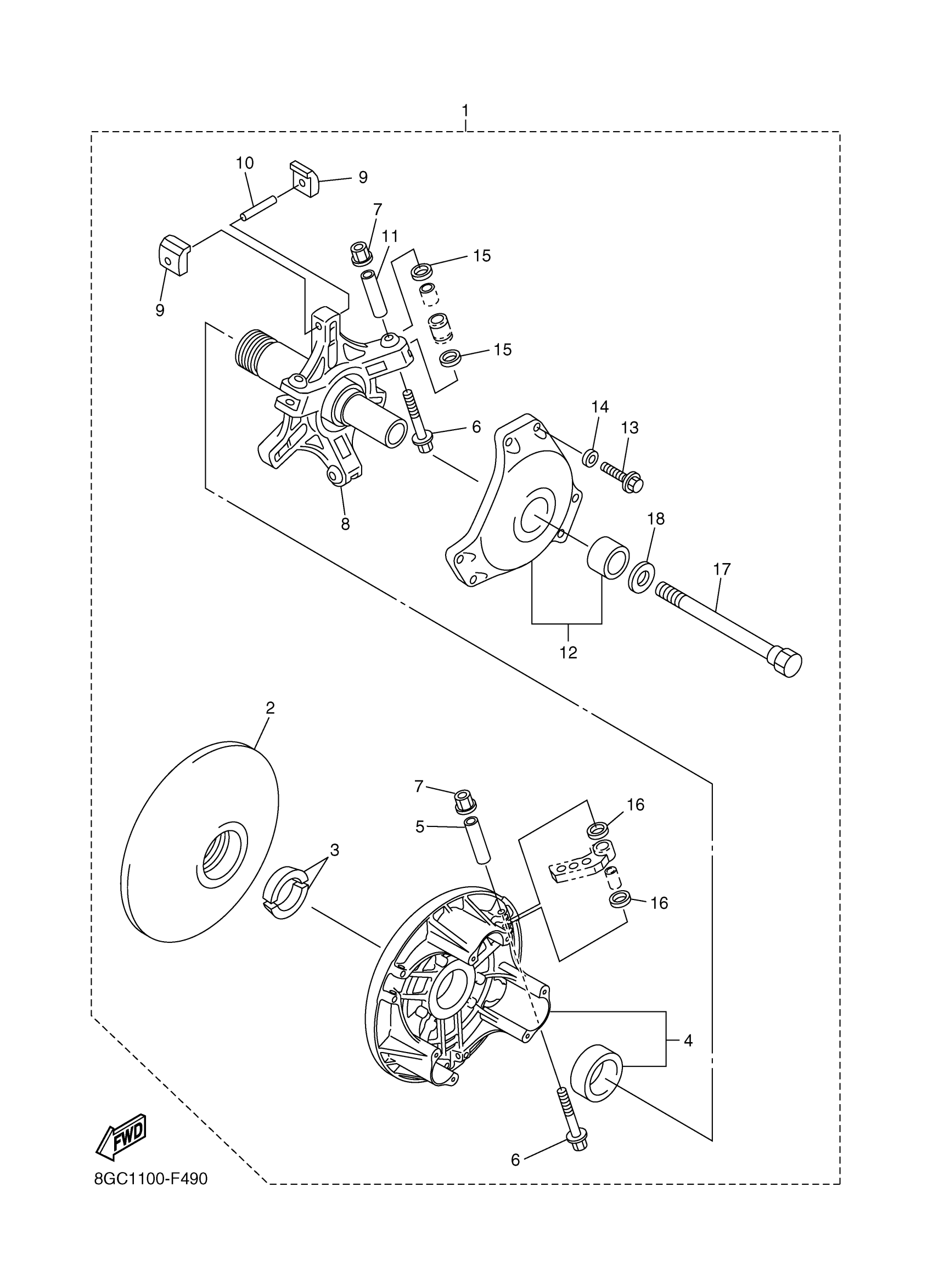

Yamaha PZ50YO (PHAZER PZ50GTYR PHAZER GT) 8GC5 2009 ALTERNATE REBUILD KIT Diagram

#

Description
Price

1

CLUTCH REPAIR KIT

8GJ-W176G-02-00

$873.99

2

SHEAVE, PRIMARY FIXED

8FA-17611-01-00

$199.05

3

STOPPER

8V0-17639-00-00

$10.52

4

PRIMARY SLIDING SHEAVE COMP.

8BV-17620-03-00

$259.28

5

COLLAR

90387-0514T-00

$14.86

6

BOLT, WASHER BASED(88R)

90105-05644-00

$1.94

7

NUT, S/L FLANGE

95607-05200-00

$6.86

8

SPIDER COMPLETE

8ES-17640-02-00

$438.89

9

SLIDER

8BW-17653-00-00

$13.86

10

PIN, SPRING (7F7)

91609-50032-00

$3.66

11

COLLAR

90387-0514U-00

$15.86

12

PRIMARY SHEAVE CAP COMP.

8BV-17630-12-00

$90.97

13

BOLT, HEXAGON

97017-06030-00

$3.00

14

WASHER(6TA)

92907-06600-00

$0.78

15

WASHER, PLATE(8BV)

90202-09227-00

$7.48

16

WASHER, PLATE(88R)

90202-08204-00

$5.72

17

BOLT (L=156.5MM)

8V0-17647-10-00

$21.45

18

WASHER(JN5)

92907-16100-00

$12.08
