Description

Price

1

COVER, HEADLIGHT

8GC-77251-00-00

$105.99

1

COVER, HEADLIGHT

8GK-77251-00-00

Unavailable

2

DAMPER, NOISE 11

8GC-77271-00-00

$8.49

3

FAIRING

8GK-77231-00-00

$26.99

3

FAIRING

8GK-77231-00-00

$26.99

4

FAIRING 2

8GK-7723A-00-00

$26.99

4

FAIRING 2

8GK-7723A-00-00

$26.99

5

NUT, SPRING

90183-06071-00

Unavailable

5

NUT, SPRING

90183-06071-00

Unavailable

6

WINDSHIELD COMP.

8GK-K7210-10-00

Unavailable

6

WINDSHIELD COMP.

8GK-K7210-10-00

Unavailable

7

TRIM, UPPER

8GK-77213-10-00

$65.99

7

TRIM, UPPER

8GK-77213-00-00

Unavailable

8

BRACKET, WINDSHIELD(R.H)

8GK-77222-00-00

$234.99

8

BRACKET, WINDSHIELD(R.H)

8GK-77222-00-00

$234.99

9

SCREW(3YF)

90149-05299-00

Unavailable

9

SCREW(3YF)

90149-05299-00

Unavailable

10

NUT

90179-05003-00

Unavailable

10

NUT(1KT)

90179-05523-00

Unavailable

11

BOLT, BUTTON HEAD

92012-08016-00

Unavailable

11

BOLT, BUTTON HEAD

92012-08016-00

Unavailable

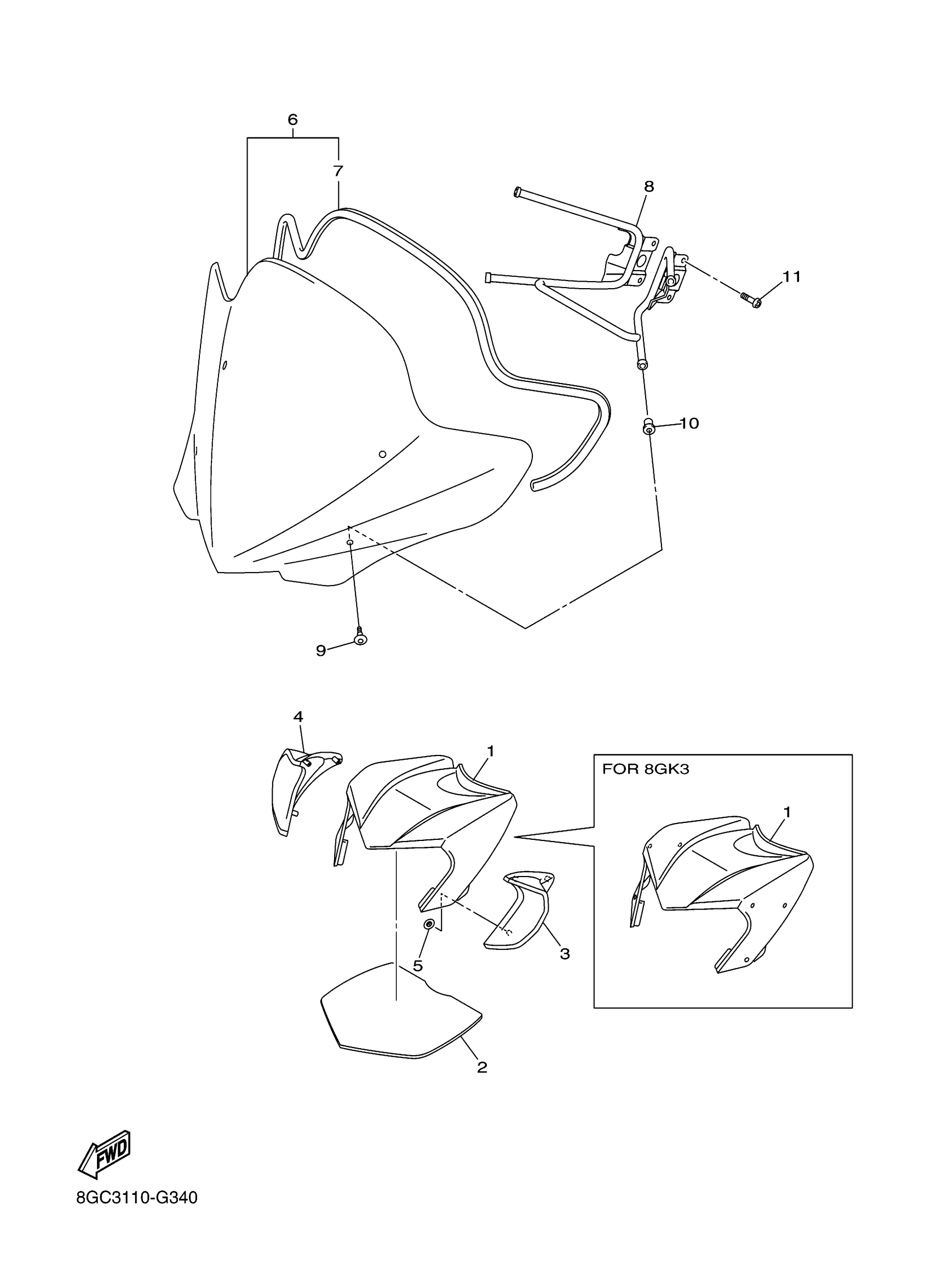

Yamaha PZ50XW (PHAZER (no reverse)) 8GC30 2008 WINDSHIELD Diagram

COVER, HEADLIGHT

COVER, HEADLIGHT

DAMPER, NOISE 11

FAIRING

FAIRING

FAIRING 2

FAIRING 2

NUT, SPRING

NUT, SPRING

WINDSHIELD COMP.

WINDSHIELD COMP.

TRIM, UPPER

TRIM, UPPER

BRACKET, WINDSHIELD(R.H)

BRACKET, WINDSHIELD(R.H)

SCREW(3YF)

SCREW(3YF)

NUT

NUT(1KT)

BOLT, BUTTON HEAD

BOLT, BUTTON HEAD
