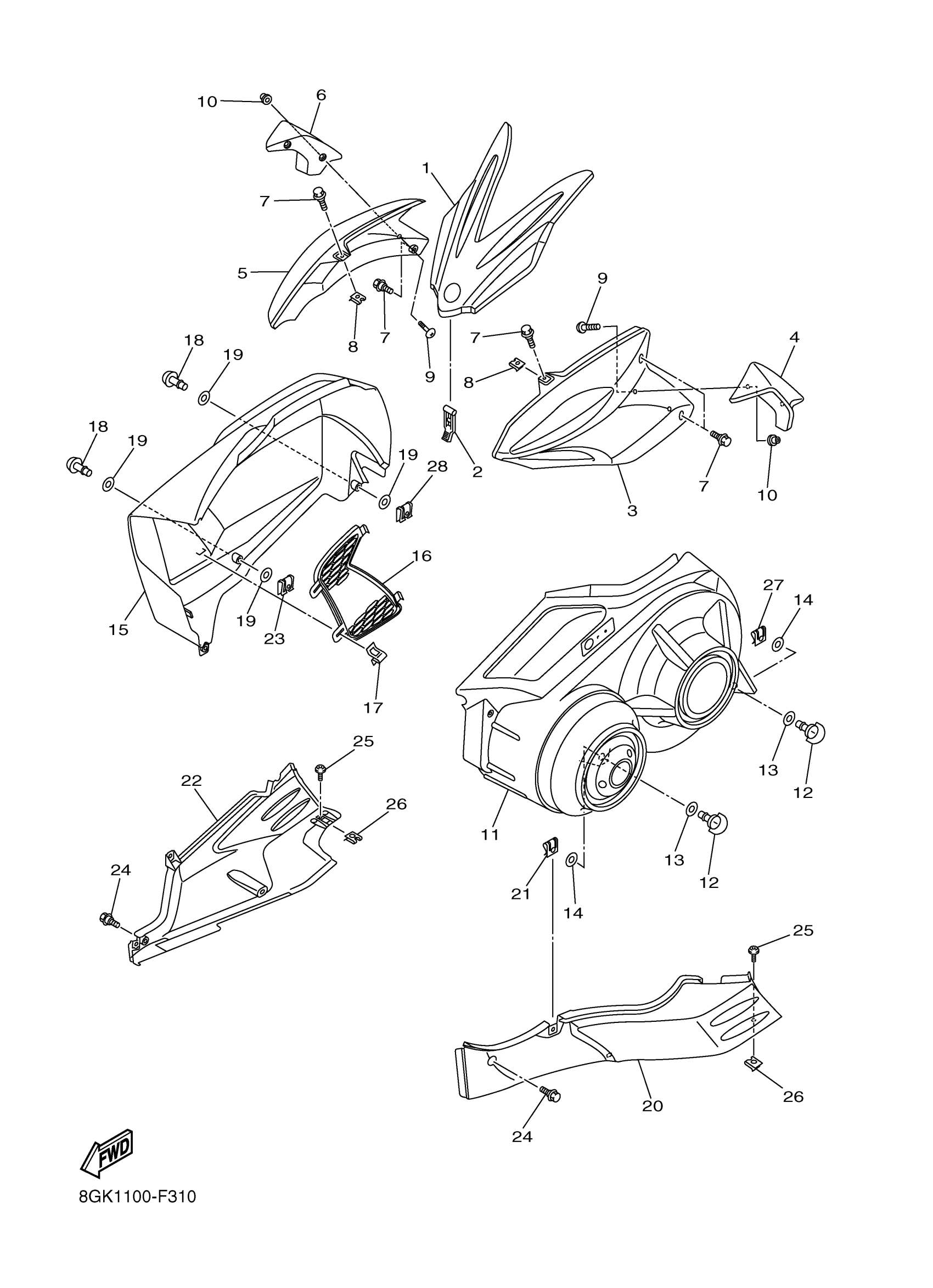

Yamaha PZ50XW (PHAZER (no reverse)) 8GC30 2008 SHROUD Diagram
#
1
SHROUD
8GC-77111-00-00
$99.99
1
SHROUD
8GC-77111-30-00
$99.99
1
SHROUD
8GC-77111-40-00
Unavailable
2
BAND
59V-21646-00-00
$22.99
3
PANEL 1
8GC-2835U-00-00
Unavailable
3
PANEL 1
8GC-2835U-30-00
$63.99
3
PANEL 1
8GK-2835U-00-00
$93.99
3
PANEL 1
8GK-2835U-40-00
Unavailable
4
PROTECTOR, SIDE 1
8GK-77561-00-00
$71.99
4
PROTECTOR, SIDE 1
8GK-77561-00-00
$71.99
5
PANEL 2
8GC-2835V-00-00
Unavailable
5
PANEL 2
8GC-2835V-30-00
$65.99
5
PANEL 2
8GK-2835V-00-00
$93.99
5
PANEL 2
8GK-2835V-40-00
Unavailable
6
PROTECTOR, SIDE 2
8GK-77562-00-00
$71.99
6
PROTECTOR, SIDE 2
8GK-77562-00-00
$71.99
7
BOLT
90109-06220-00
Unavailable
8
NUT, SPRING
90183-06100-00
Unavailable
9
SCREW, BIND (8K2)
98902-05016-00
Unavailable
9
SCREW, BIND (8K2)
98902-05016-00
Unavailable
10
NUT(1KT)
90179-05523-00
Unavailable
10
NUT(1KT)
90179-05523-00
Unavailable
11
HOOD 3
8GC-2197H-20-00
Unavailable
12
HEAD
3FV-28386-00-00
Unavailable
13
WASHER, SPECIAL 1
2TK-21757-00-00
Unavailable
14
WASHER, SPECIAL 1
5TJ-21757-00-00
Unavailable
15
HOOD 4
8GC-2198H-21-00
Unavailable
16
LOUVER 4
8GC-77134-00-00
Unavailable
17
CLIP
90468-06001-00
Unavailable
18
HEAD
5PW-28386-00-00
Unavailable
19
WASHER, SPECIAL 1
2TK-21757-00-00
Unavailable
20
FRAME UNDER 1
8GC-2196A-20-00
Unavailable
21
PLATE, SPRING
4XV-2177L-01-00
Unavailable
22
FRAME, UNDER 2
8GC-2196E-20-00
Unavailable
23
PLATE, SPRING
5PW-2177L-01-00
Unavailable
24
BOLT
90109-06220-00
Unavailable
25
SCREW
90149-06105-00
Unavailable
26
NUT, SPRING
90183-06100-00
Unavailable
27
PLATE, SPRING
4XV-2177L-01-00
Unavailable
28
PLATE, SPRING
5PW-2177L-01-00
Unavailable
