- PZ50XTGB (PHAZER XTX) 8JT5 2016
TRACK SUSPENSION 1

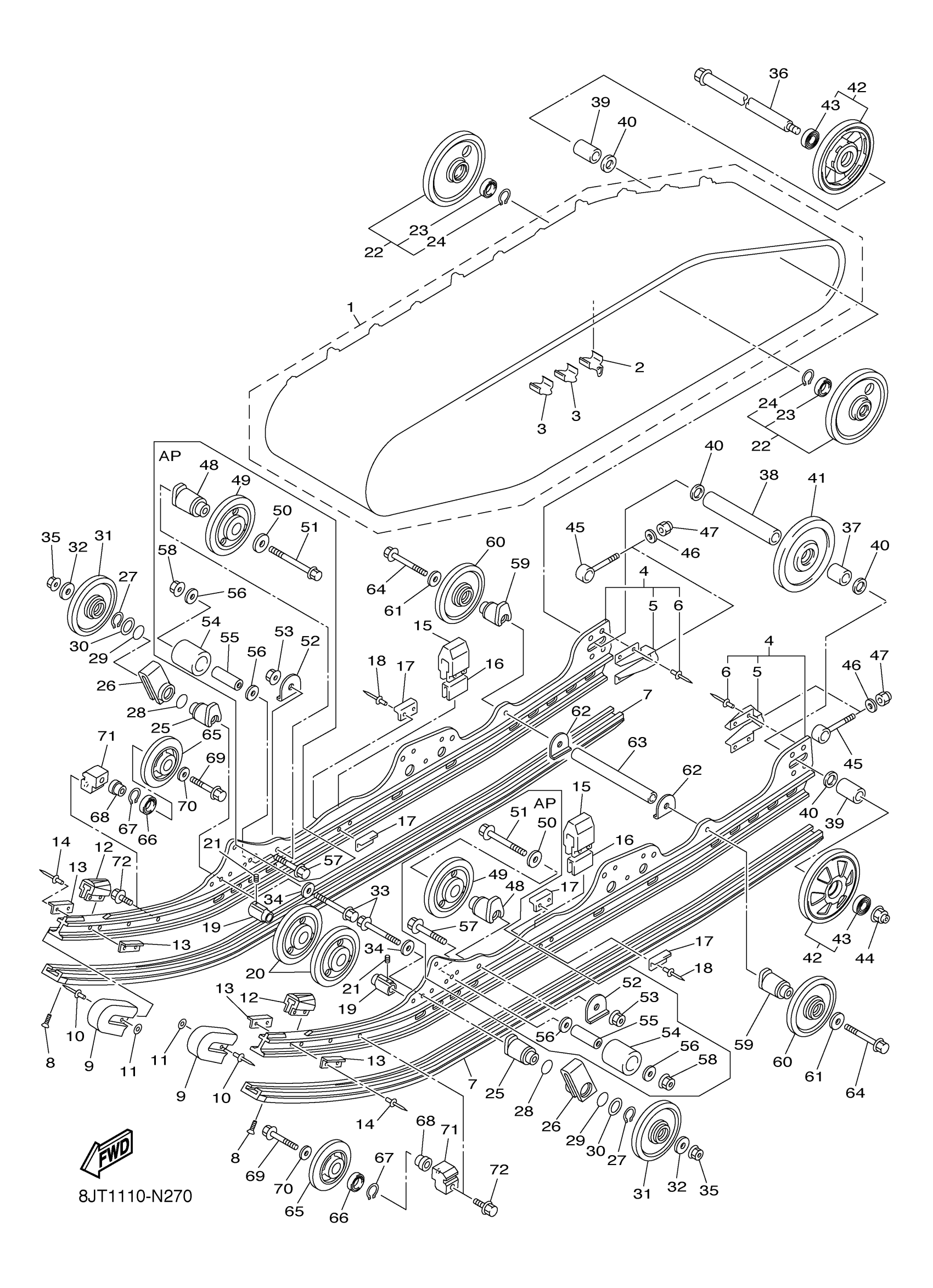

Yamaha PZ50XTGB (PHAZER XTX) 8JT5 2016 TRACK SUSPENSION 1 Diagram
#
1
TRACK ASSY
8JT-47110-00-00
Unavailable
2
METAL, SLIDE
8HR-47115-09-00
$16.99
3
PLATE, REINFORCEMENT
8HR-47113-09-00
$17.99
4
FRAME, SLIDING
8GP-W4741-01-00
$388.99
5
BRACKET
8DM-4741B-00-00
$45.99
6
RIVET
8V0-47468-00-00
$10.49
7
FX NYTRO 162" HP WIDE HYFAX
SMA-8HR92-00-BK
Unavailable
8
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
9
RUNNER, SLIDING 2
8ED-47422-00-00
$46.99
10
RIVET BLIND
90267-48194-00
$3.28
11
WASHER, PLATE(8CM)
90201-047R8-00
$3.02
12
DAMPER 1
8ES-47456-00-00
$6.99
13
PLATE, DAMPER
8K2-47458-01-00
$4.77
14
RIVET, BLIND
90267-48199-00
$3.76
15
DAMPER 2
8AC-47457-00-00
$18.49
16
SPACER
8AC-47341-00-00
Unavailable
17
PLATE, DAMPER
8AX-47458-00-00
Unavailable
18
RIVET, BLIND
90267-48199-00
$3.76
19
COLLAR
8ES-47319-01-00
Unavailable
20
SUSPENSION WHEEL ASSY
8ET-47310-00-00
Unavailable
21
BOLT, SET (8K2)
90113-06039-00
Unavailable
22
GUIDE WHEEL COMP.
8GC-47530-10-00
Unavailable
23
BEARING
93306-00616-00
Unavailable
24
CIRCLIP
99009-55500-00
Unavailable
25
BRACKET 7
8ES-47419-10-00
Unavailable
26
HOOK 1
8ES-47446-00-00
Unavailable
27
CIRCLIP(6U2)
93410-35M10-00
Unavailable
28
O-RING (16G)
93210-35537-00
Unavailable
29
O-RING (21A)
93210-34633-00
Unavailable
30
WASHER, PLATE
90201-35013-00
Unavailable
31
SUSPENSION WHEEL ASSY
8ES-47310-00-00
Unavailable
32
WASHER, PLATE
90201-101U2-00
Unavailable
33
BOLT, FLANGE
95812-10080-00
Unavailable
34
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
35
NUT, S/L FLANGE
95602-10200-00
Unavailable
36
REAR AXLE COMP.
8L8-47520-10-00
Unavailable
37
COLLAR
90387-20015-00
Unavailable
38
COLLAR
90387-20016-00
Unavailable
39
COLLAR
90387-20019-00
Unavailable
40
WASHER, PLATE(89W)
90201-205R6-00
Unavailable
41
GUIDE WHEEL ASSY
8CR-47550-10-00
Unavailable
42
REAR WHEEL BLK 178MM
SMA-8FP38-02-BK
Unavailable
43
BEARING(8AB)
93306-00444-00
Unavailable
44
NUT, U FLANGE
95602-14200-00
Unavailable
45
COLLAR 3
8DM-47479-00-00
Unavailable
46
WASHER, PLATE
92990-10600-00
Unavailable
47
NUT, NYLON
95707-10300-00
Unavailable
48
BRACKET 7
8ES-47419-00-00
Unavailable
49
SUSPENSION WHEEL ASSY
8ES-47310-10-00
Unavailable
50
WASHER, PLATE
90201-101U2-00
Unavailable
51
BOLT, FLANGE
95812-10080-00
Unavailable
52
WASHER, CLAW
90214-10003-00
Unavailable
53
NUT, S/L FLANGE
95602-10200-00
Unavailable
54
ROLLER
8ES-47429-00-00
Unavailable
55
COLLAR
90387-10025-00
Unavailable
56
WASHER, PLATE
90201-10052-00
Unavailable
57
BOLT, FLANGE
95812-10060-00
Unavailable
58
NUT, S/L FLANGE
95602-10200-00
Unavailable
59
BRACKET 7
8ES-47419-00-00
Unavailable
60
SUSPENSION WHEEL ASSY
8ES-47310-00-00
Unavailable
61
WASHER, PLATE
90201-101U2-00
Unavailable
62
WASHER, CLAW
90214-10003-00
Unavailable
63
SHAFT 3
8FU-47485-00-00
Unavailable
64
95812-10090
95812-10090-00
Unavailable
65
SUSPENSION WHEEL COMP.
8AC-47320-00-00
Unavailable
66
BEARING(8AB)
93306-00444-00
Unavailable
67
CIRCLIP(5U8)
99009-42500-00
Unavailable
68
COLLAR
8GP-47319-00-00
Unavailable
69
BOLT, FLANGE (8V9)
95812-10045-00
Unavailable
70
WASHER, PLATE
90201-10052-00
Unavailable
71
BRACKET 7
8GP-47419-00-00
Unavailable
72
BOLT, FLANGE
95817-10030-00
Unavailable
