- PZ50XTGB (PHAZER XTX) 8JT5 2016
ELECTRICAL 1

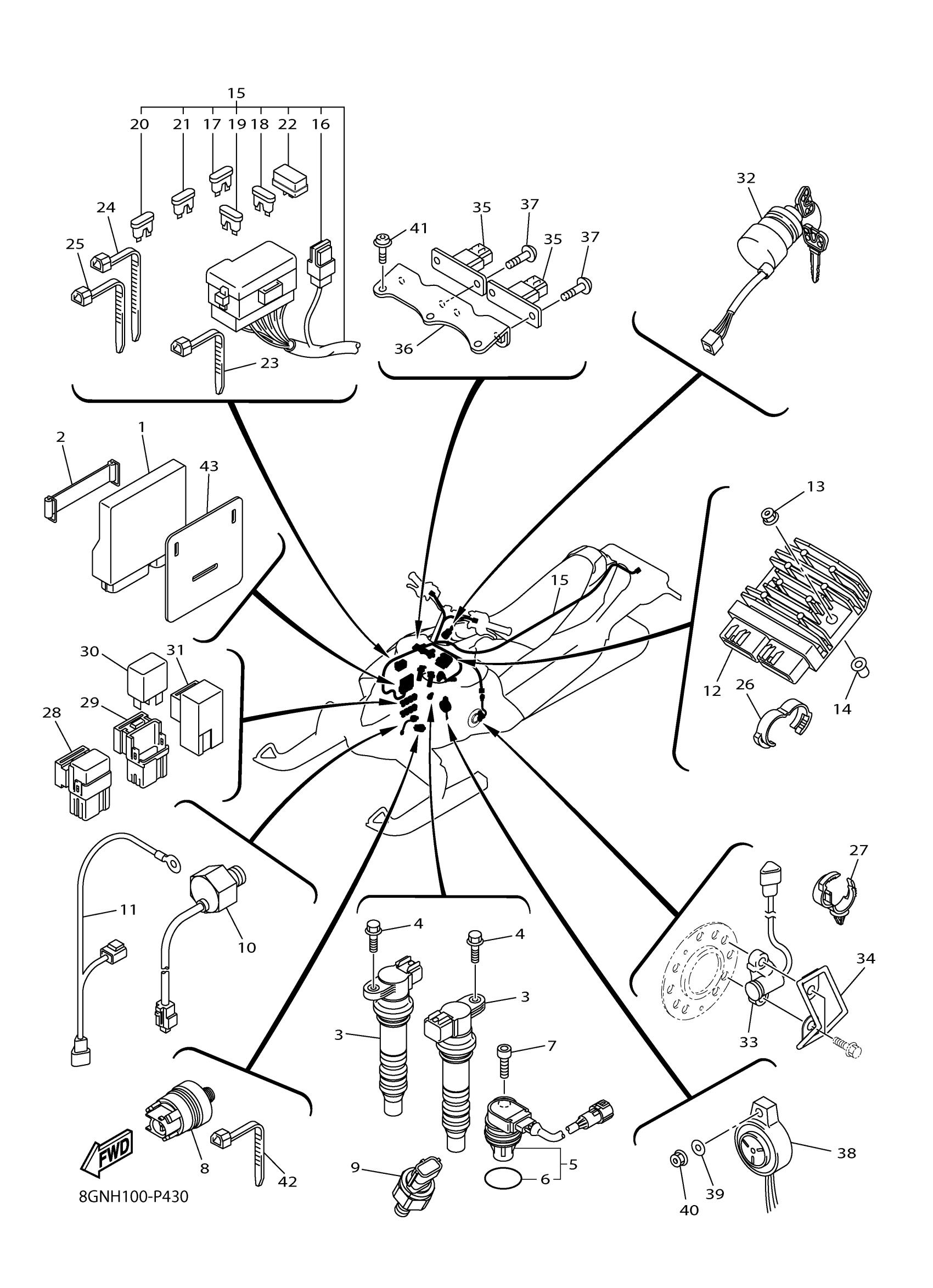

Yamaha PZ50XTGB (PHAZER XTX) 8JT5 2016 ELECTRICAL 1 Diagram
#
1
ENGINE CONTROL UNIT ASSY
8GP-8591A-40-00
Unavailable
2
BAND, BATTERY
2T4-82131-00-00
$8.99
3
IGNITION COIL ASSY
8FP-82310-00-00
$220.99
4
BOLT, FLANGE
95817-06025-00
Unavailable
5
SENSOR, CAM POSITION
8GC-85896-02-00
$150.99
6
O-RING
4D9-81168-00-00
$6.99
7
BOLT,SOCKET HEAD
91314-06020-00
$1.49
8
OIL PRESSURE SWITCH
8FP-82504-01-00
$71.99
9
SENDER, OIL PRESSU
8GN-83651-01-00
$251.99
10
SENSOR, KNOCK
8GC-85780-00-00
$185.99
11
LEAD WIRE ASSY
8GC-81515-10-00
Unavailable
12
RECTIFIER & REGULATOR ASSY
1D7-81960-01-00
$323.99
13
NUT, U FLANGE
95604-06200-00
$8.49
14
COLLAR
90387-06M45-00
Unavailable
15
WIRE HARNESS ASSY
8GN-82590-50-00
Unavailable
16
SLOW BLOW FUSE
JR9-82151-00-00
Unavailable
17
FUSE (15A)
67F-82151-50-00
Unavailable
18
FUSE
5JJ-82151-20-00
Unavailable
19
FUSE (7.5A-BL)
5JJ-82151-00-00
Unavailable
20
FISE (4A-BL)
5JJ-82151-40-00
Unavailable
21
. FUSE (3A)
67F-82151-30-00
Unavailable
22
DIODE ASSY
4WA-81980-00-00
Unavailable
23
BAND, SWITCH CORD
25G-83936-01-00
Unavailable
24
CLAMP(4FM)
90464-15195-00
Unavailable
25
CLAMP(4FM)
90464-15195-00
Unavailable
26
CLAMP
90464-16001-00
Unavailable
27
CLAMP(4AP)
90464-20181-00
Unavailable
28
RELAY ASSY
5DM-81950-01-00
Unavailable
29
RELAY ASSY (8HG-10
8HG-81951-10-00
Unavailable
30
HOLDER, RELAY
8HG-81952-00-00
Unavailable
31
RELAY ASSY
8GN-81950-00-00
Unavailable
32
MAIN SWITCH ASSY
8HV-82510-00-00
Unavailable
33
SENSOR, SPEED
8GK-83755-12-00
Unavailable
34
COVER 2
8GC-2198G-00-00
Unavailable
35
SENSOR, PRESSURE
5PS-82380-00-00
Unavailable
36
PANEL 1
8GC-1441L-00-00
Unavailable
37
SCREW, PAN
98517-06012-00
Unavailable
38
BUZZER
8GL-83383-00-00
Unavailable
39
WASHER, PLATE
90201-05043-00
Unavailable
40
NUT, FLANGE
95702-05500-00
Unavailable
41
BOLT, BUTTON HEAD
92012-05008-00
Unavailable
42
CLAMP
90464-13077-00
Unavailable
43
PAD 2
8GC-77152-00-00
Unavailable
