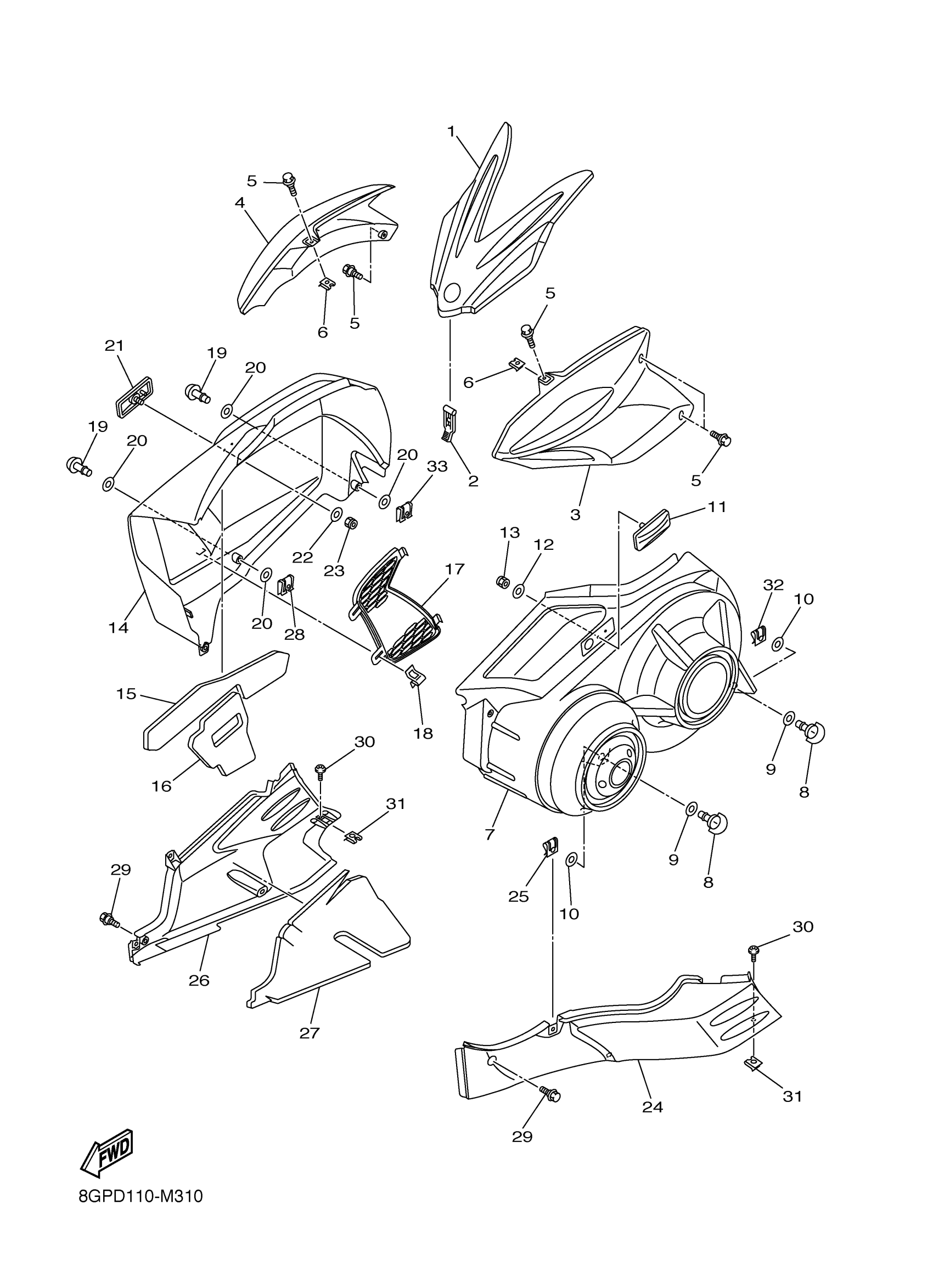

Yamaha PZ50XTFB (PHAZER XTX) 8JT3 2015 SHROUD Diagram
#
1
SHROUD
8GC-77111-00-00
$99.99
2
BAND
59V-21646-00-00
$22.99
3
PANEL 1
8GC-2835U-40-00
Unavailable
4
PANEL 2
8GC-2835V-40-00
Unavailable
5
BOLT
90109-06220-00
$10.49
6
NUT, SPRING
90183-06100-00
$10.49
7
HOOD 3
8GC-2197H-00-00
Unavailable
8
HEAD
8HG-28386-00-00
$31.99
9
WASHER, SPECIAL 1
8HG-21757-00-00
$1.07
10
WASHER, SPECIAL 1
8HR-21757-00-00
$2.82
11
PLATE 1
8FR-77185-00-00
$8.49
12
WASHER, PLATE (4H7)
90201-061A5-00
$7.49
13
NUT, NYLON
95707-05300-00
$4.24
14
HOOD 4
8GC-2198H-01-00
Unavailable
15
DAMPER, NOISE 11
8GP-77271-00-00
Unavailable
16
DAMPER, NOISE 12
8GP-77272-00-00
Unavailable
17
LOUVER 4
8GC-77134-00-00
Unavailable
18
CLIP
90468-06001-00
Unavailable
19
HEAD
5PW-28386-00-00
Unavailable
20
WASHER, SPECIAL 1
8HW-21757-00-00
Unavailable
21
PLATE 1
8FR-77185-00-00
$8.49
22
WASHER, PLATE (4H7)
90201-061A5-00
$7.49
23
NUT, NYLON
95707-05300-00
$4.24
24
FRAME UNDER 1
8GC-2196A-00-00
Unavailable
25
PLATE, SPRING
4XV-2177L-01-00
Unavailable
26
FRAME, UNDER 2
8GC-2196E-00-00
Unavailable
27
DAMPER, NOISE 13
8GP-77273-00-00
Unavailable
28
PLATE, SPRING
5PW-2177L-01-00
Unavailable
29
BOLT
90109-06220-00
$10.49
30
SCREW
90149-06105-00
Unavailable
31
NUT, SPRING
90183-06100-00
$10.49
32
PLATE, SPRING
4XV-2177L-01-00
Unavailable
33
PLATE, SPRING
5PW-2177L-01-00
Unavailable
