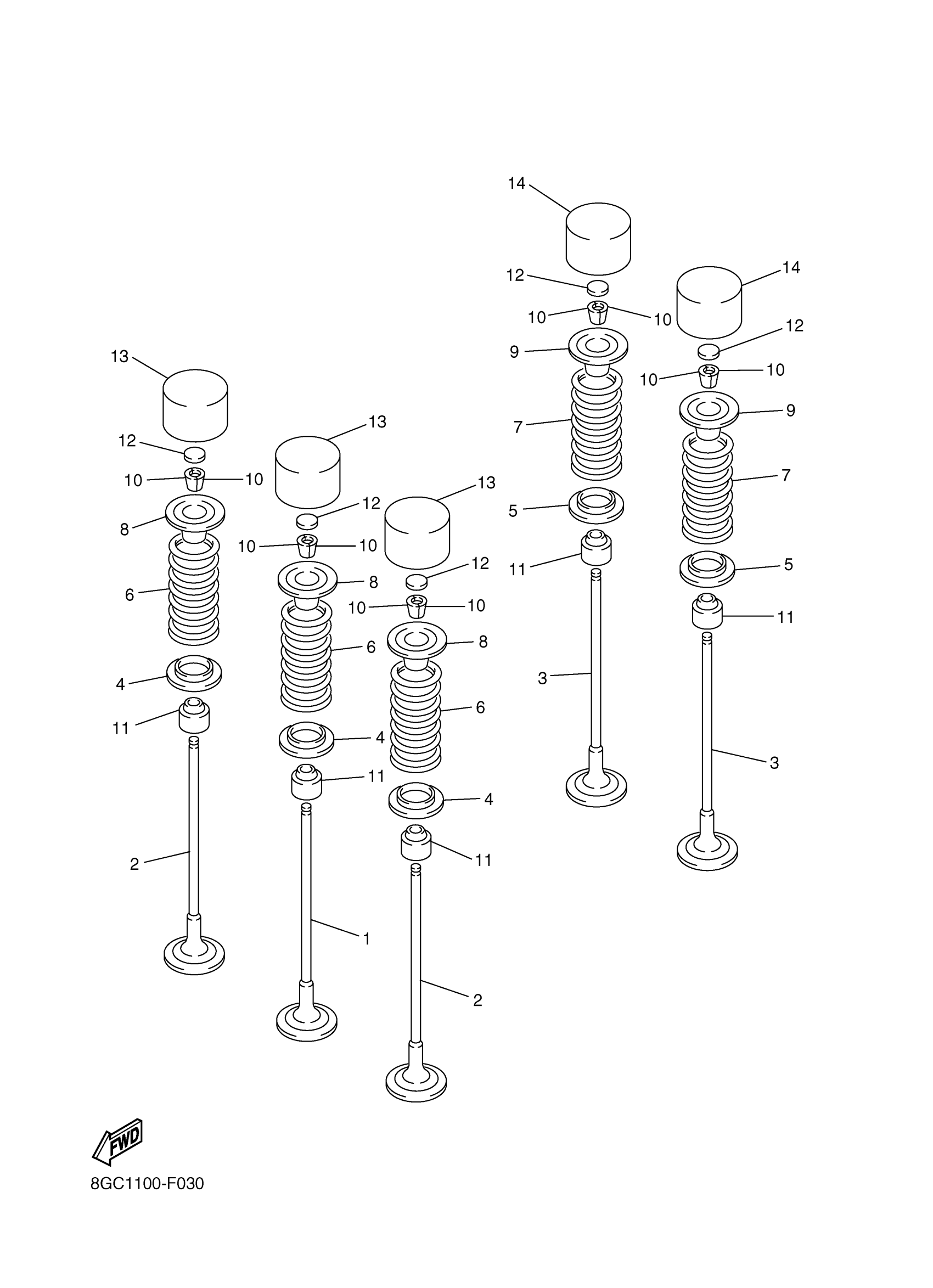

Yamaha PZ50XTEW (PHAZER XTX) 8JT1 2014 VALVE Diagram
#
1
VALVE, INTAKE
8GC-12111-01-00
Unavailable
2
VALVE, INTAKE 2
8GC-12112-01-00
Unavailable
3
VALVE, EXHAUST
8GC-12121-01-00
Unavailable
4
SEAT, VALVE SPRING
5NL-12116-00-00
$7.99
5
SEAT, VALVE SPRING 2
8GC-12126-00-00
$3.40
6
SPRING, VALVE INNER
8GC-12113-00-00
$10.49
7
SPRING, VALVE OUTER
8GC-12114-00-00
$10.49
8
RETAINER, VALVE SPRING
1HX-12117-00-00
Unavailable
9
RETAINER, VALVE SPRING
3TJ-12117-00-00
$6.99
10
COTTER, VALVE
1HX-12118-00-00
$7.99
11
SEAL, VALVE STEM
4TV-12119-00-00
$13.49
12
PAD, ADJUSTING 2 (1.20)
1HX-12168-00-00
Unavailable
12
PAD, ADJUSTING 2 (1.25)
1HX-12168-20-00
Unavailable
12
PAD, ADJUSTING 2 (1.30)
1HX-12168-40-00
Unavailable
12
PAD, ADJUSTING 2 (1.35)
1HX-12168-60-00
Unavailable
12
PAD, ADJUSTING 2 (1.40)
1HX-12168-80-00
Unavailable
12
PAD, ADJUSTING 2 (1.45)
1HX-12168-A0-00
Unavailable
12
PAD, ADJUSTING 2 (1.50)
1HX-12168-F0-00
Unavailable
12
PAD, ADJUSTING 2 (1.55)
1HX-12168-H1-00
Unavailable
12
PAD, ADJUSTING 2 (1.60)
1HX-12168-K1-00
Unavailable
12
PAD, ADJUSTING 2 (1.65)
1HX-12168-M1-00
Unavailable
12
PAD, ADJUSTING 2 (1.70)
1HX-12168-R1-00
Unavailable
12
PAD, ADJUSTING 2 (1.75)
1HX-12168-U1-00
Unavailable
12
PAD, ADJUSTING 2 (1.80)
1HX-12168-W1-00
Unavailable
12
PAD, ADJUSTING 2 (1.85)
1HX-12168-Y1-00
Unavailable
12
PAD, ADJUSTING 2 (1.90)
1HX-12169-11-00
Unavailable
12
PAD, ADJUSTING 2 (1.95)
1HX-12169-31-00
Unavailable
12
PAD, ADJUSTING 2 (2.00)
1HX-12169-50-00
Unavailable
12
PAD, ADJUSTING 2 (2.05)
1HX-12169-70-00
Unavailable
12
PAD, ADJUSTING 2 (2.10)
1HX-12169-90-00
Unavailable
12
PAD, ADJUSTING 2 (2.15)
1HX-12169-E0-00
Unavailable
12
PAD, ADJUSTING 2 (2.20)
1HX-12169-G0-00
Unavailable
12
PAD, ADJUSTING 2 (2.25)
1HX-12169-J0-00
Unavailable
12
PAD, ADJUSTING 2 (2.30)
1HX-12169-L0-00
Unavailable
12
PAD, ADJUSTING 2 (2.35)
1HX-12169-N0-00
Unavailable
12
PAD, ADJUSTING 2 (2.40)
1HX-12169-T0-00
Unavailable
13
LIFTER, VALVE (O/S, 0.006)
3LN-12153-09-00
Unavailable
13
LIFTER, VALVE
3LN-12153-10-00
Unavailable
14
LIFTER, VALVE (O/S, 0.006)
3FV-12153-09-00
Unavailable
14
LIFTER, VALVE
3FV-12153-19-00
Unavailable
