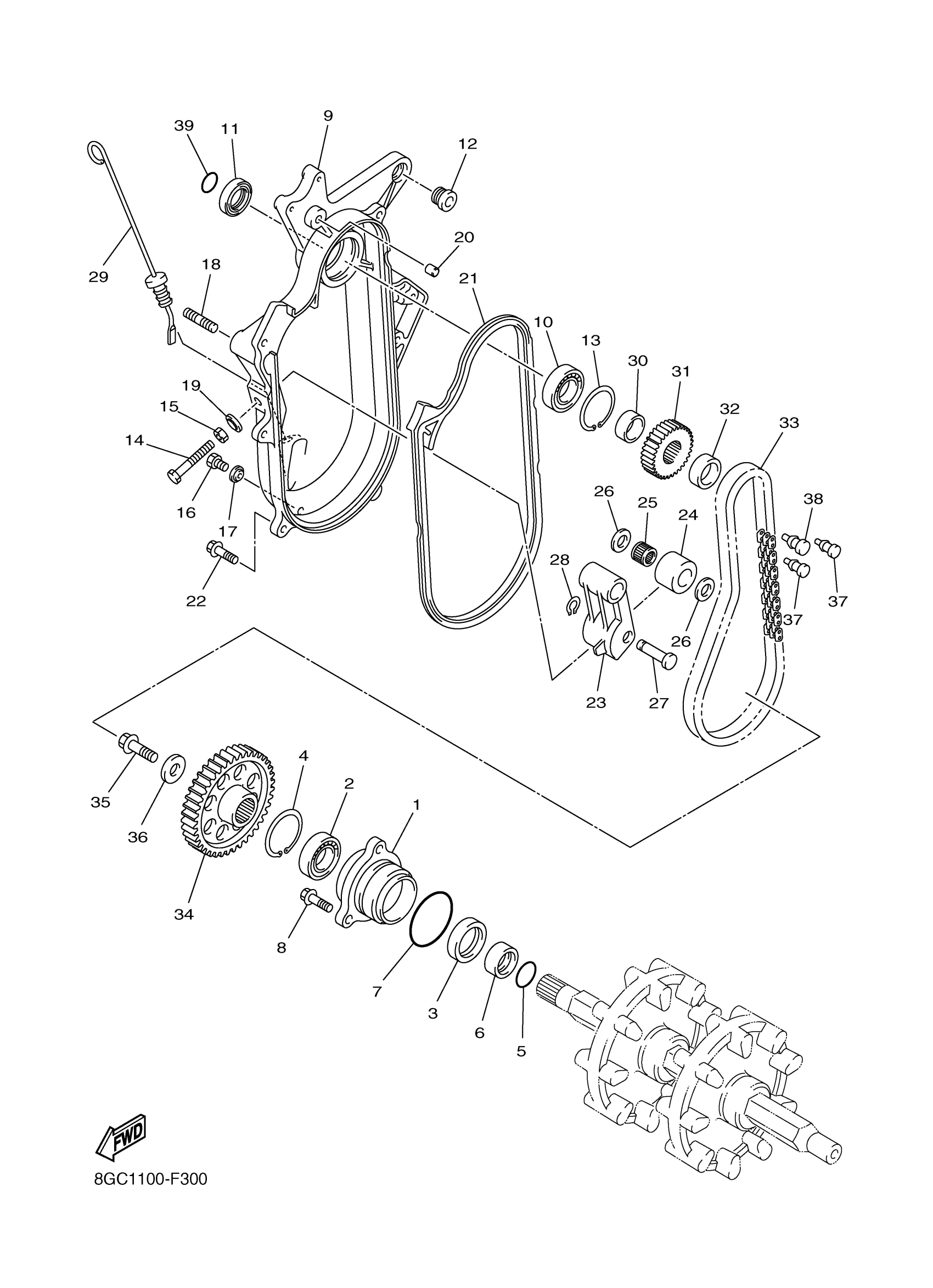

Yamaha PZ50W (PHAZER) 8GC1 2007 TRACK DRIVE 2 Diagram

#

Description
Price

1

HOUSING, BEARING 2

8GC-47633-00-00

Unavailable

2

BEARING

93306-20592-00

$59.99

3

OIL SEAL

93102-35010-00

$23.99

4

CIRCLIP(26H)

99009-52500-00

$12.49

5

O-RING (169)

93210-25071-00

$8.49

6

COLLAR(8CJ)

90387-2508C-00

$46.99

7

O-RING

93210-62269-00

Unavailable

8

BOLT, FLANGE(4LN)

95817-08025-00

$8.49

9

CAP, HOUSING

8GC-47543-01-00

$238.99

10

BEARING(1FF)

93306-00519-00

$36.99

11

OIL SEAL (697)

93102-32M07-00

$18.99

12

NUT(8CJ)

90179-10679-00

Unavailable

13

CIRCLIP(48Y)

99009-47500-00

$9.49

14

BOLT

90101-10026-00

$3.28

15

NUT(3BM)

95314-10600-00

$2.39

16

BOLT, HEXAGON

97017-08016-00

Unavailable

17

WASHER, SEAL(8AB)

90210-08017-00

Unavailable

18

BOLT, STUD 3

95617-08618-00

Unavailable

19

WASHER SEAL 256111730200

90210-10004-00

Unavailable

20

PIN, DOWEL

91811-10005-00

Unavailable

21

RING, HOUSING

8GC-47558-01-00

Unavailable

22

BOLT, FLANGE(6TA)

95817-08030-00

Unavailable

23

HOLDER

8GC-47613-00-00

Unavailable

24

WHEEL

8FA-47612-00-00

Unavailable

25

BEARING, CYLINDRICAL(1VJ)

93310-212R6-00

Unavailable

26

WASHER, PLATE (5N6)

90201-127E1-00

Unavailable

27

PIN

90249-12003-00

Unavailable

28

CIRCLIP(10Y)

99009-12400-00

Unavailable

29

LEVEL, OIL

8GC-47546-00-00

Unavailable

30

COLLAR

90387-25020-00

Unavailable

31

SPROCKET, CHAIN DRIVE

8GC-17682-80-00

Unavailable

32

COLLAR

90387-2508D-00

Unavailable

33

CHAIN

94591-63080-00

Unavailable

34

SPROCKET, CHAIN DRIVEN

8GC-47587-10-00

Unavailable

35

BOLT, FLANGE(3GD)

95817-10025-00

Unavailable

36

WASHER, PLATE (856)

90201-10321-00

Unavailable

37

PLUG

90338-07008-00

Unavailable

38

PLUG

90338-10011-00

Unavailable

39

O-RING

93210-20001-00

Unavailable
