2007 Yamaha Phazer (PZ50W) Steering Diagram

← All diagrams

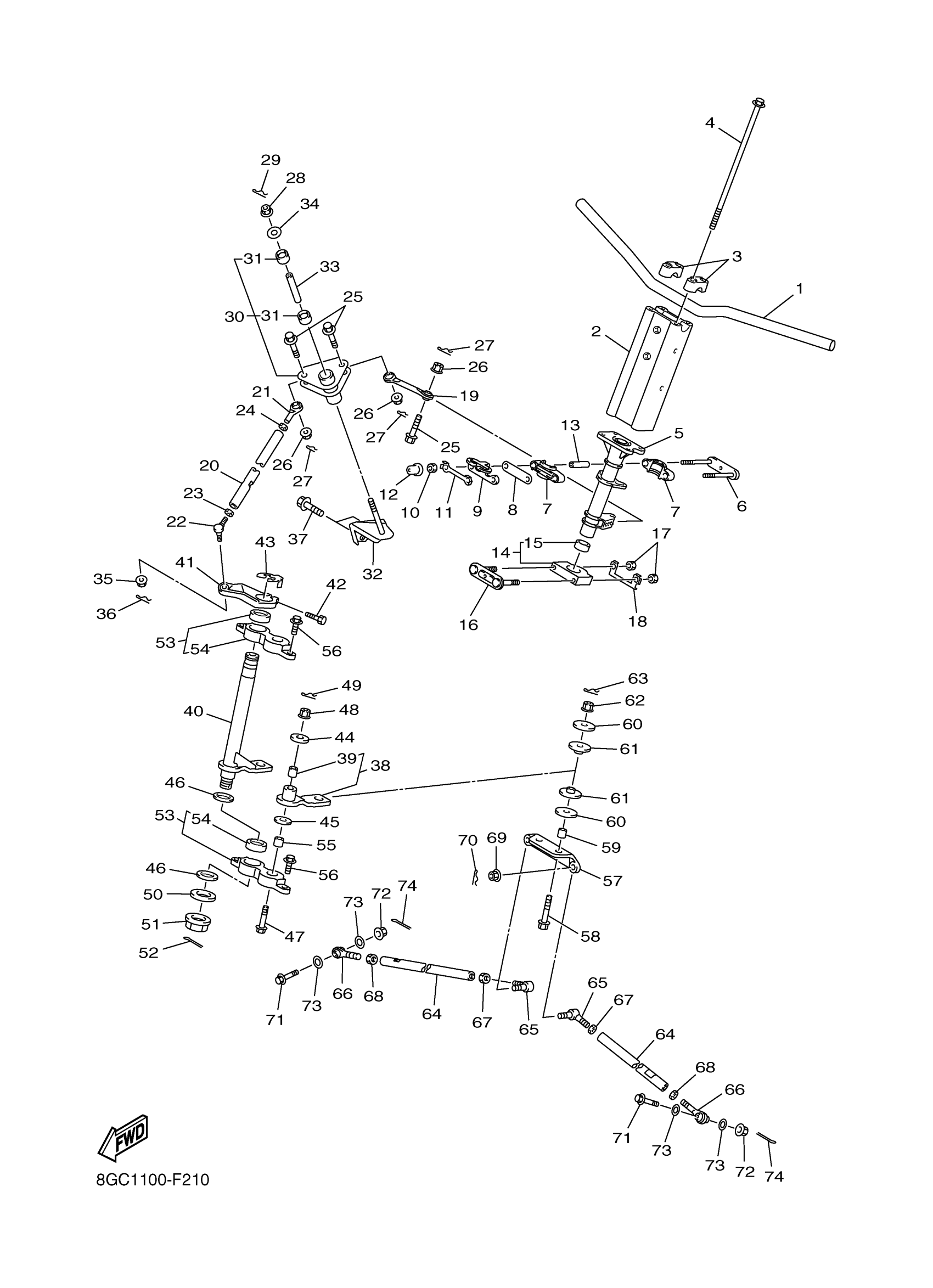

Find the part on the Steering diagram for your 2007 Yamaha Phazer (PZ50W), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Yamaha Phazer (PZ50W) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

8GC-26111-00-00

—
Out of stock

2

JOINT

8GC-2381B-00-00

—
Out of stock

3

HOLDER, HANDLE UPPER

1E6-23441-00-00

1
Out of stock

4

BOLT

8GC-23436-00-00

1
Out of stock

5

COLUMN, STEERING 2

8GC-23813-00-00

—
Out of stock

6

HOLDER, BEARING

8FA-23872-00-00

1
Out of stock

7

PLANE BEARING, STEERING

8FA-23812-00-00

1
Out of stock

8

HOLDER 2

8FA-23867-00-00

—
Out of stock

9

HOLDER, BEARING

8GC-23872-00-00

—
Out of stock

10

NUT(6L2)

95333-08600-00

1
Out of stock

11

WASHER, LOCK 1

1UY-23894-01-00

1
Out of stock

12

CAP

8GC-82532-00-00

1
Out of stock

13

COLLAR

90387-09006-00

1
Out of stock

14

PLANE BEARING, STEERING

8GC-23812-00-00

1
Out of stock

15

BEARING

93317-425B7-00

1
Out of stock

16

HOLDER

8GJ-23857-00-00

—
Out of stock

17

NUT(6L2)

95333-08600-00

1
Out of stock

18

WASHER, LOCK 1

8GJ-23894-00-00

—
Out of stock

19

ROD, STEERING

8GC-23828-00-00

—
Out of stock

20

ROD, STEERING RELAY

8GC-23821-00-00

—
Out of stock

21

JOINT, UNIVERSAL 1

8GC-23841-00-00

—
Out of stock

22

JOINT, UNIVERSAL 2

8CR-23845-10-00

—
Out of stock

23

NUT (682)

95380-10700-00

1
Out of stock

24

NUT, HEXAGON (8A5)

90170-10186-00

—
Out of stock

25

BOLT, WASHER BASED(47X)

90105-08321-00

—
Out of stock

26

NUT,FLANGE(J10)

95702-08500-00

—
Out of stock

27

CLIP

90468-16001-00

—
Out of stock

28

NUT, FLANGE(3BM)

95704-10500-00

—
Out of stock

29

CLIP (7U6)

90468-18121-00

—
Out of stock

30

ARM, CONTROL 1

8GC-2384E-00-00

—
Out of stock

31

BEARING, CYLINDRICAL(3VR)

93317-41767-00

—
Out of stock

32

BRACKET 1

8GC-23881-00-00

—
Out of stock

33

NUT

8GC-23846-00-00

—
Out of stock

34

WASHER, PLATE

90201-121U3-00

—
Out of stock

35

NUT, FLANGE(3BM)

95704-10500-00

—
Out of stock

36

PIN, COTTER

91490-25020-00

—
Out of stock

37

BOLT, FLANGE

95812-08030-00

—
Out of stock

38

ARM PIVOT ASSY

8GC-2389K-00-00

—
Out of stock

39

BUSH

8GC-23526-00-00

—
Out of stock

40

PIVOT ARM ASSY 2

8GC-2389M-00-00

—
Out of stock

41

ARM, INSIDE

8GC-2381A-00-00

—
Out of stock

42

BOLT, SOCKET

91317-08025-00

—
Out of stock

43

CIRCLIP

8GC-23183-00-00

—
Out of stock

44

WASHER, PLATE(N04)

90201-124G7-00

—
Out of stock

45

WASHER PLATE 371115580000

90201-25291-00

—
Out of stock

46

WASHER, PLATE (5F7)

90201-256E4-00

—
Out of stock

47

BOLT 1

8GC-23346-00-00

—
Out of stock

48

95702-12500

95702-12500-00

—
Out of stock

49

CLIP 136253750000

90468-12006-00

—
Out of stock

50

WASHER, PLATE

90201-22018-00

—
Out of stock

51

NUT (26H)

90179-22412-00

—
Out of stock

52

PIN, COTTER

91402-20035-00

—
Out of stock

53

BRACKET, PIVOT

8GC-2389H-00-00

—
Out of stock

54

BEARING

93317-425B7-00

1
Out of stock

55

COLLAR

8GC-23113-00-00

—
Out of stock

56

BOLT, FLANGE(3GD)

95817-10025-00

—
Out of stock

57

ARM, IDLER

8GC-23826-00-00

—
Out of stock

58

BOLT, WASHER BASED(4KD)

90105-10728-00

—
Out of stock

59

COLLAR

90387-10070-00

—
Out of stock

60

WASHER, PLATE(JN9)

90201-100S2-00

—
Out of stock

61

BUSH 1

8GC-23362-00-00

—
Out of stock

62

NUT, FLANGE(3BM)

95704-10500-00

—
Out of stock

63

CLIP (7U6)

90468-18121-00

—
Out of stock

64

ROD, TIE

8GC-23831-00-00

—
Out of stock

65

JOINT, UNIVERSAL 2

8CR-23845-10-00

—
Out of stock

66

JOINT, UNIVERSAL 3

8GC-23847-00-00

—
Out of stock

67

NUT (682)

95380-10700-00

1
Out of stock

68

NUT, HEXAGON (8A5)

90170-10186-00

—
Out of stock

69

NUT, FLANGE(3BM)

95704-10500-00

—
Out of stock

70

CLIP (7U6)

90468-18121-00

—
Out of stock

71

BOLT

8GC-23493-00-00

—
Out of stock

72

NUT,FLANGE(J10)

95702-08500-00

—
Out of stock

73

WASHER, PLATE

90201-06018-00

—
Out of stock

74

PIN, COTTER

91490-20025-00

—
Out of stock
