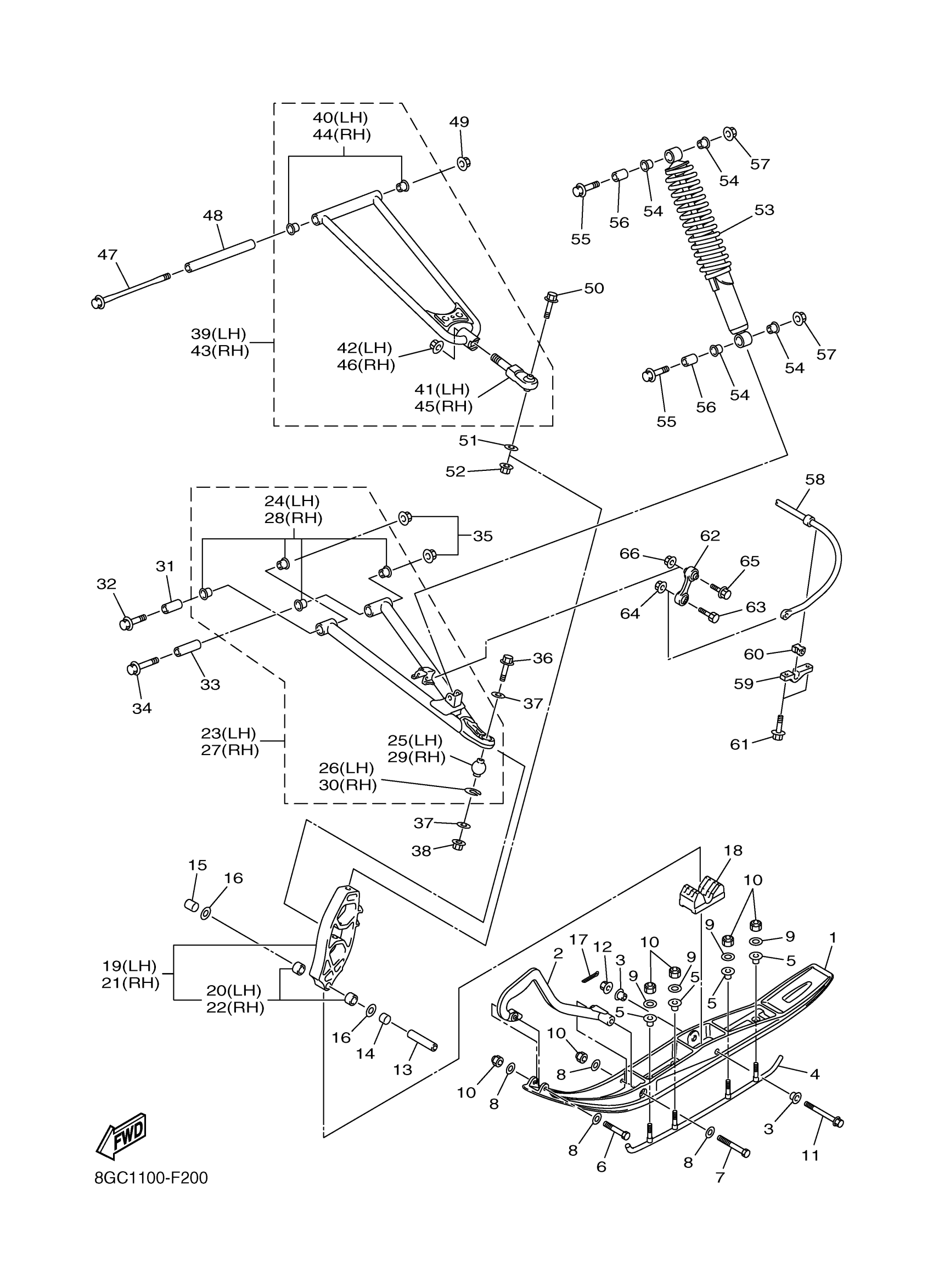

Find the part on the Ski diagram for your 2007 Yamaha Phazer (PZ50W), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Yamaha Phazer (PZ50W) Ski Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI 1, BLACK

8EX-23711-00-BK

1
Out of stock

2

BLUE 8DM HANDLE PLASTIC

8DM-23712-00-BU

1
Out of stock

2

RED 8DM HANDLE PLASTIC

8DM-23712-00-RD

1
Out of stock

3

. COLLAR 1

8EX-F3754-00-00

1
Out of stock

4

RUNNER 1

8GK-F3731-00-00

1
Out of stock

5

BUSH, SKI 1

8EK-F3751-00-00

1
Out of stock

6

BOLT, HEXAGON

97017-08055-00

1
Out of stock

7

BOLT, HEXAGON

97027-08100-00

1
Out of stock

8

WASHER, PLATE (3L7)

90201-08784-00

1
Out of stock

9

WASHER, PLATE(3XP)

90201-086P8-00

1
Out of stock

10

NUT, NYLON

95717-08300-00

1
Out of stock

11

BOLT, FLANGE

90105-10070-00

1
Out of stock

12

NUT, S/L FLANGE

95602-10200-00

1
Out of stock

13

COLLAR

90387-1012H-00

1
Out of stock

14

COLLAR

90387-16017-00

1
Out of stock

15

COLLAR

90387-16018-00

—
Out of stock

16

WASHER, PLATE

90201-16022-00

—
Out of stock

17

PIN, COTTER

91490-20025-00

—
Out of stock

18

STOPPER 1

8GK-23743-00-00

—
Out of stock

19

STEERING KNUCKLE ASSY (LEFT)

8GK-23501-01-00

—
Out of stock

20

BUSH, BIMETAL FORMED

90384-16N51-00

—
Out of stock

21

STEERING KNUCKLE ASSY (RIGHT)

8GK-23502-01-00

—
Out of stock

22

BUSH, BIMETAL FORMED

90384-16N51-00

—
Out of stock

23

FRONT LOWER ARM COMP. (LEFT)

8GN-23570-A0-00

1
Out of stock

23

FRONT LOWER ARM COMP. (LEFT)

8GN-23570-D9-00

1
Out of stock

24

BUSH, SOLID

90381-16N51-00

—
Out of stock

25

BALL JOINT 2

8GK-23579-01-00

—
Out of stock

26

CIRCLIP (IR)(93450-35015 SUPER

99009-35700-00

—
Out of stock

27

FRONT LOWER ARM COMP. (RIGHT)

8GN-23580-A0-00

1
Out of stock

27

FRONT LOWER ARM COMP. (RIGHT)

8GN-23580-01-P1

—
Out of stock

28

BUSH, SOLID

90381-16N51-00

—
Out of stock

29

BALL JOINT 2

8GK-23579-01-00

—
Out of stock

30

CIRCLIP (IR)(93450-35015 SUPER

99009-35700-00

—
Out of stock

31

COLLAR

90387-10093-00

—
Out of stock

32

BOLT, FLANGE

90105-10211-00

—
Out of stock

33

COLLAR

90387-10074-00

—
Out of stock

34

BOLT, FLANGE

90105-10212-00

—
Out of stock

35

NUT, S/L FLANGE

95602-10200-00

1
Out of stock

36

BOLT, FLANGE

90105-10210-00

—
Out of stock

37

WASHER, PLATE

90201-10051-00

—
Out of stock

38

NUT, S/L FLANGE

95602-10200-00

1
Out of stock

39

FRONT UPPER ARM COMP. (LEFT)

8GK-23540-A0-00

—
Out of stock

39

FRONT UPPER ARM COMP. (LEFT)

8GK-23540-D9-00

—
Out of stock

40

BUSH, SOLID

90381-15N50-00

—
Out of stock

41

BALL JOINT 1

8GK-23549-00-00

—
Out of stock

42

NUT, U FLANGE

95602-14200-00

—
Out of stock

43

FRONT UPPER ARM COMP. (RIGHT)

8GK-23550-A0-00

1
Out of stock

43

FRONT UPPER ARM COMP. (RIGHT)

8GK-23550-D9-00

—
Out of stock

44

BUSH, SOLID

90381-15N50-00

—
Out of stock

45

BALL JOINT 1

8GK-23549-00-00

—
Out of stock

46

NUT, U FLANGE

95602-14200-00

—
Out of stock

47

BOLT, FLANGE

90105-10213-00

—
Out of stock

48

COLLAR

90387-10058-00

—
Out of stock

49

NUT, S/L FLANGE

95602-10200-00

1
Out of stock

50

BOLT

91312-10045-00

—
Out of stock

51

WASHER, PLATE

90201-10052-00

—
Out of stock

52

NUT, S/L FLANGE

95602-10200-00

1
Out of stock

53

ABSORBER ASSY 1

8GC-2376A-00-00

—
Out of stock

53

ABSORBER ASSY 1 (HEAT RED)

8GC-2376A-10-00

1
Out of stock

54

BUSH, SOLID(8CM)

90381-14101-00

—
Out of stock

55

BOLT, FLANGE (8V9)

95812-10045-00

—
Out of stock

56

COLLAR (8U7)

90387-105G5-00

—
Out of stock

57

NUT, S/L FLANGE

95602-10200-00

1
Out of stock

58

BAR, STABILIZER FRONT

8GN-2386E-00-00

—
Out of stock

59

HOLDER, STABILIZER FRONT

8GN-2386C-00-00

—
Out of stock

60

BUSH, STABILIZER FRONT

8GN-2386G-00-00

—
Out of stock

61

BOLT, FLANGE

95812-08020-00

—
Out of stock

62

JOINT, STABILIZER 1

8GN-2385L-00-00

—
Out of stock

63

BOLT(6TA)

97017-10035-00

—
Out of stock

64

NUT, S/L FLANGE

95602-10200-00

1
Out of stock

65

BOLT, FLANGE

95817-08040-00

—
Out of stock

66

NUT, SELF-LOCKING

95602-08200-00

—
Out of stock
