Description

Price

1

SECONDARY FIXED SHEAVE COMP.

88R-17660-03-00

$613.99

2

SECONDARY SLIDING SHEAVE

8GC-17670-00-00

$265.99

3

. SHOE, RAMP

8GC-17688-00-00

Unavailable

4

SCREW, BINDING

98907-06016-00

$9.49

5

BUSH, BIMETAL FORMED(81H)

90384-90081-00

$62.99

6

WASHER, PLATE (8U9)

90201-345G2-00

$12.49

7

WASHER, CLAW(88R)

90214-29060-00

$7.49

8

CIRCLIP(86F)

93440-34170-00

$8.49

9

SEAT, SECONDARY SPRING

88R-17684-03-00

Unavailable

10

SPRING, TORSION

90508-55007-00

$33.99

11

SHAFT, SECONDARY

8GC-17681-00-00

Unavailable

12

HOUSING, BEARING

8CR-47631-01-00

$21.99

13

BEARING

93399-99959-00

Unavailable

14

BOLT, FLANGE

95022-08025-00

$8.49

15

NUT, SELF-LOCKING

95602-08200-00

$3.20

16

WASHER, PLATE (888)

90201-25526-00

Unavailable

17

WASHER, PLATE (8R6)

90201-252F1-00

Unavailable

17

WASHER, PLATE (888)

90201-25527-00

Unavailable

18

WASHER, PLATE

90201-14022-00

Unavailable

19

BOLT, FLANGE

90105-14002-00

Unavailable

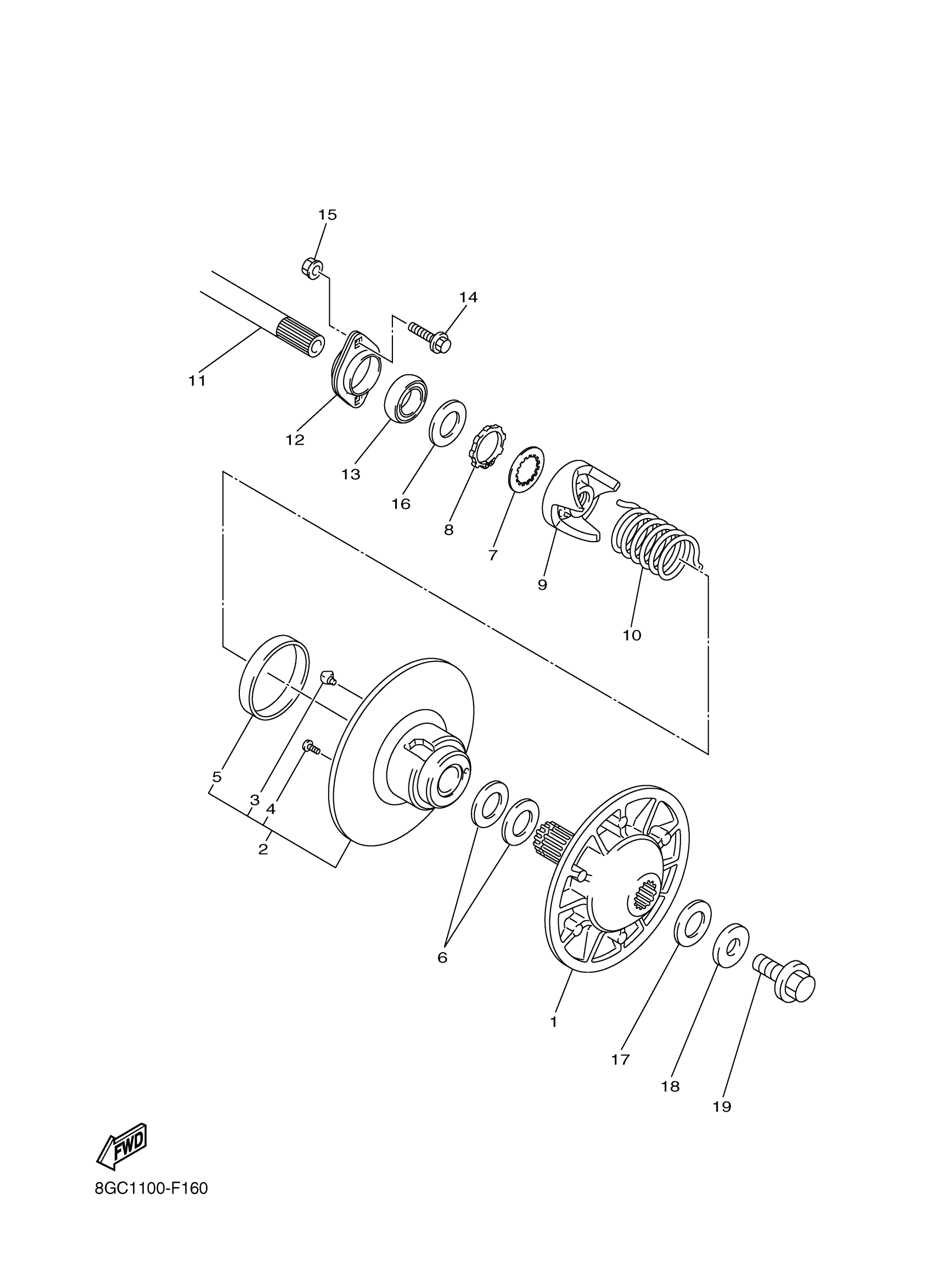

Yamaha PZ50W (PHAZER) 8GC1 2007 SECONDARY SHEAVE Diagram

SECONDARY FIXED SHEAVE COMP.

SECONDARY SLIDING SHEAVE

. SHOE, RAMP

SCREW, BINDING

BUSH, BIMETAL FORMED(81H)

WASHER, PLATE (8U9)

WASHER, CLAW(88R)

CIRCLIP(86F)

SEAT, SECONDARY SPRING

SPRING, TORSION

SHAFT, SECONDARY

HOUSING, BEARING

BEARING

BOLT, FLANGE

NUT, SELF-LOCKING

WASHER, PLATE (888)

WASHER, PLATE (8R6)

WASHER, PLATE (888)

WASHER, PLATE

BOLT, FLANGE
