- PZ50W (PHAZER) 8GC1 2007
RADIATOR HOSE

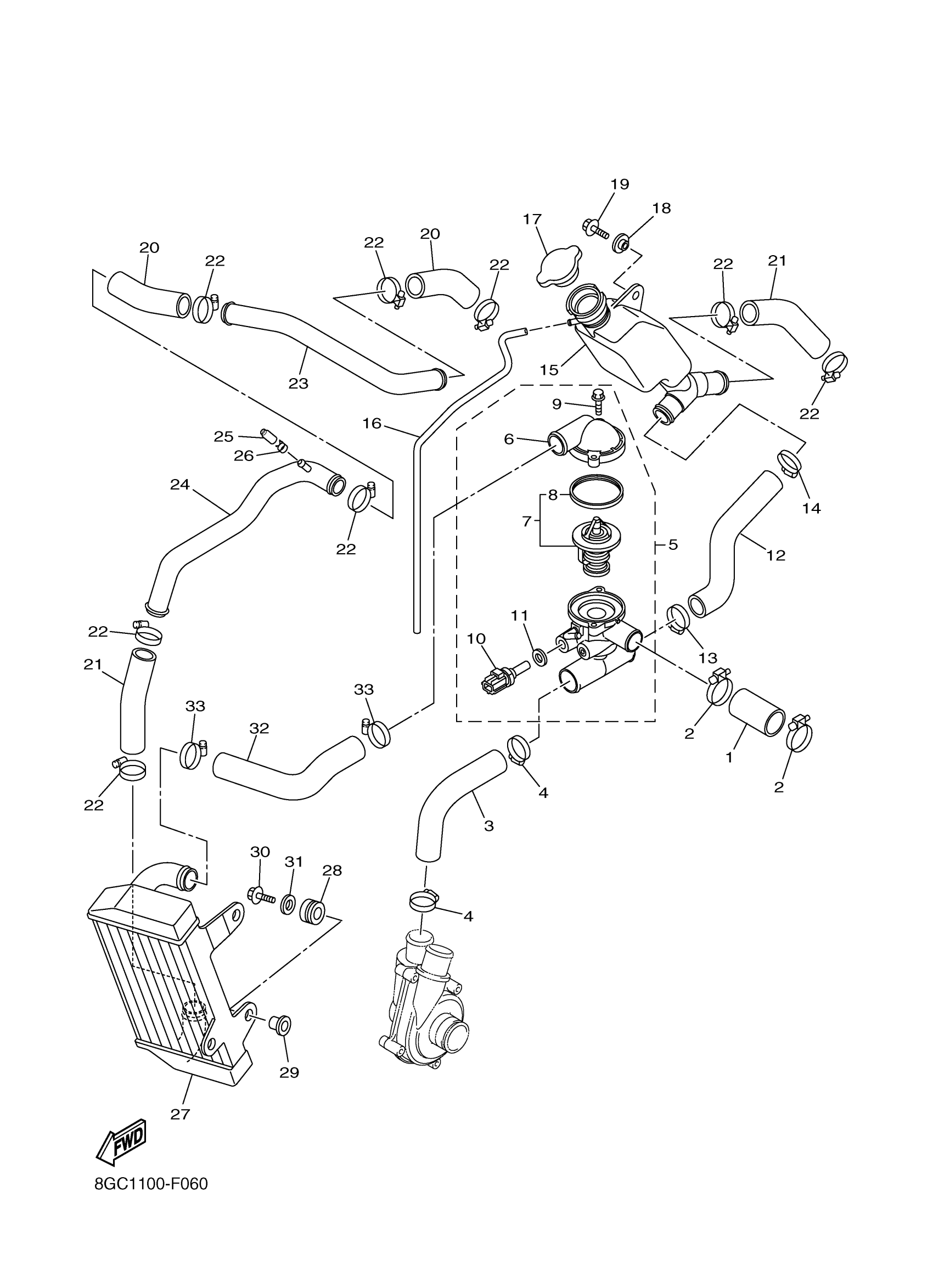

Yamaha PZ50W (PHAZER) 8GC1 2007 RADIATOR HOSE Diagram
#
1
HOSE 2
8GC-1243E-00-00
Unavailable
2
HOSE CLAMP ASSY
90450-35001-00
$5.60
3
HOSE, 4
8GC-1244G-00-00
Unavailable
4
HOSE CLAMP ASSY(3GM)
90450-38040-00
$17.99
5
JOINT ASSY
8GC-12580-00-00
Unavailable
6
COVER, THERMOSTAT
5VX-12413-00-00
Unavailable
7
THERMOSTAT ASSY
8FN-12410-00-00
Unavailable
8
SEAL, THERMOSTAT
8EK-12412-00-00
$16.49
9
BOLT, FLANGE
95817-06020-00
$3.81
10
THERMOSENSOR ASSY
8CC-85790-01-00
$95.99
11
WASHER, PLATE
90201-12790-00
$9.49
12
HOSE,3
8GC-1243F-00-00
Unavailable
13
HOSE CLAMP ASSY(3GM)
90450-38040-00
$17.99
14
HOSE CLAMP ASSY
90450-35001-00
$5.60
15
TANK, RESERVE
8GC-1249B-00-00
Unavailable
16
HOSE (L660)
90445-08022-00
Unavailable
17
CAP, RADIATOR
4FL-12462-00-00
Unavailable
18
COLLAR (838-84757-00)
90387-06024-00
Unavailable
19
BOLT, FLANGE
95817-06020-00
$3.81
20
PIPE 6
8GC-12476-00-00
Unavailable
21
PIPE 7
8GC-12477-00-00
Unavailable
22
HOSE CLAMP ASSY
90450-35001-00
$5.60
23
PIPE, WATER
8GC-12564-00-00
Unavailable
24
PIPE 1
8GC-12481-00-00
Unavailable
25
PLUG, BLIND
16G-13569-00-00
Unavailable
26
CLIP
90467-11028-00
Unavailable
27
RADIATOR ASSY
8GC-12461-00-00
Unavailable
28
GROMMET(3RB)
90480-15528-00
Unavailable
29
COLLAR
90387-06065-00
Unavailable
30
BOLT, FLANGE
95022-06030-00
Unavailable
31
WASHER, PLATE
90201-06380-00
Unavailable
32
PIPE 8
8GC-1248A-00-00
Unavailable
33
HOSE CLAMP ASSY
90450-35001-00
$5.60
