- PZ50W (PHAZER) 8GC1 2007
ELECTRICAL 1

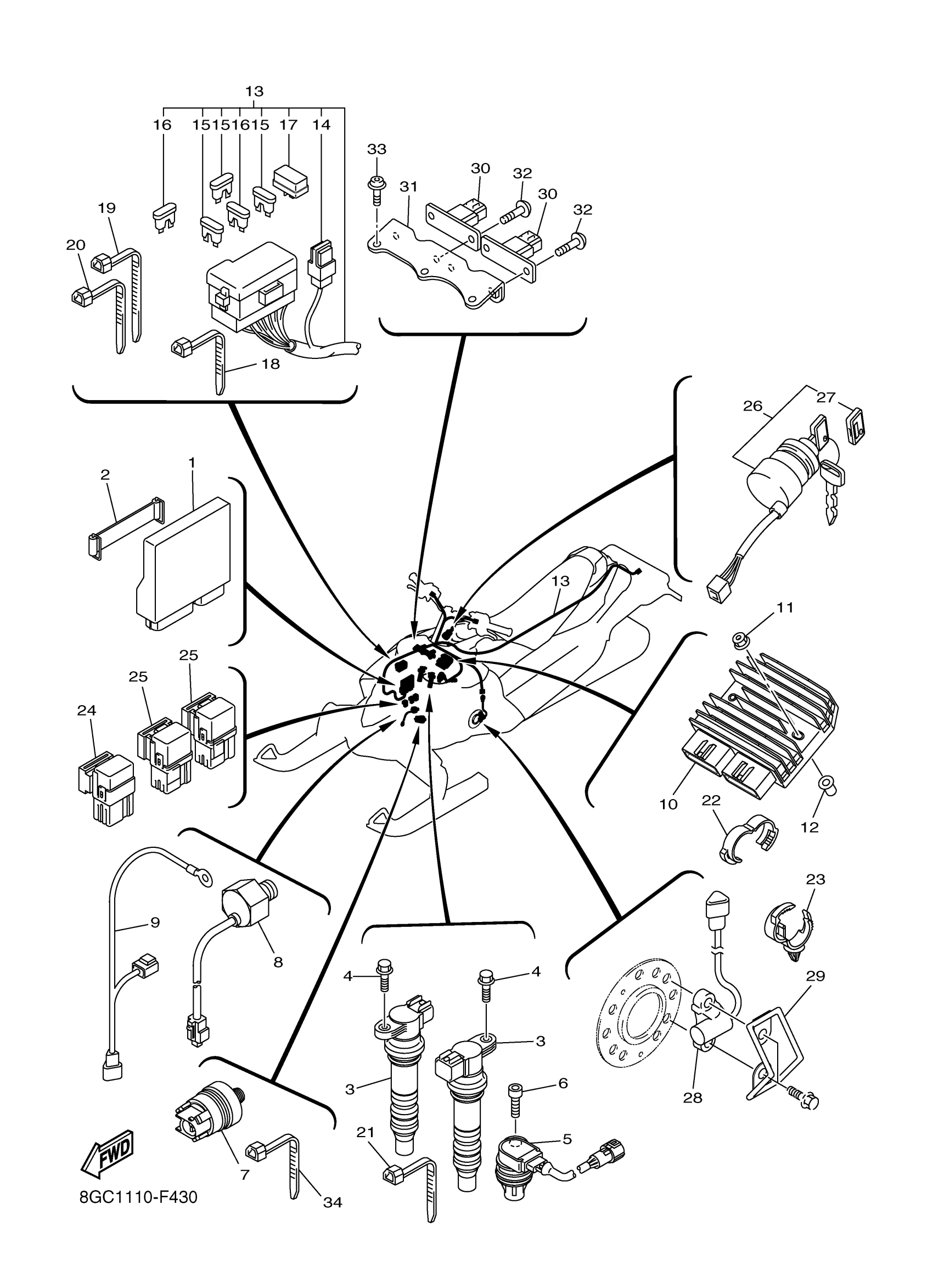

Yamaha PZ50W (PHAZER) 8GC1 2007 ELECTRICAL 1 Diagram
#
1
ENGINE CONTROL UNIT ASSY
8GC-8591A-10-00
Unavailable
2
BAND, BATTERY
2T4-82131-00-00
$8.99
3
IGNITION COIL ASSY
8FP-82310-00-00
$220.99
4
BOLT, FLANGE
95817-06025-00
Unavailable
5
SENSOR, CAM POSITION
8GC-85896-02-00
$150.99
6
BOLT,SOCKET HEAD
91314-06020-00
$1.49
7
OIL PRESSURE SWITCH
8FP-82504-01-00
$71.99
8
SENSOR, KNOCK
8GC-85780-00-00
$185.99
9
LEAD WIRE ASSY
8GC-81515-00-00
Unavailable
10
RECTIFIER & REGULATOR ASSY
1D7-81960-01-00
$323.99
11
NUT, U FLANGE
95604-06200-00
$8.49
12
COLLAR
90387-06M45-00
Unavailable
13
WIRE HARNESS ASSY
8GC-82590-02-00
Unavailable
14
SLOW BLOW FUSE
JR9-82151-00-00
$13.49
15
FUSE
5JJ-82151-20-00
$7.99
16
FUSE (7.5A-BL)
5JJ-82151-00-00
Unavailable
17
DIODE ASSY
4WA-81980-00-00
Unavailable
18
BAND, SWITCH CORD
25G-83936-01-00
Unavailable
19
CLAMP(4FM)
90464-15195-00
Unavailable
20
CLAMP(4FM)
90464-15195-00
Unavailable
21
CLAMP
90464-13077-00
Unavailable
22
CLAMP
90464-16001-00
Unavailable
23
CLAMP(4AP)
90464-20181-00
Unavailable
24
RELAY ASSY
5DM-81950-01-00
Unavailable
25
RELAY ASSY (8FP-01)
8FP-81950-01-00
Unavailable
26
MAIN SWITCH ASSY
8FA-82510-01-00
Unavailable
27
CAP, KEY
526-82579-00-00
Unavailable
28
SENSOR, SPEED
8FP-83755-01-00
Unavailable
29
COVER 2
8GC-2198G-00-00
Unavailable
30
SENSOR, PRESSURE
5PS-82380-00-00
Unavailable
31
PANEL 1
8GC-1441L-00-00
Unavailable
32
SCREW, PAN
98517-06012-00
Unavailable
33
BOLT, BUTTON HEAD
92012-05008-00
Unavailable
34
CLAMP
90464-13077-00
Unavailable
