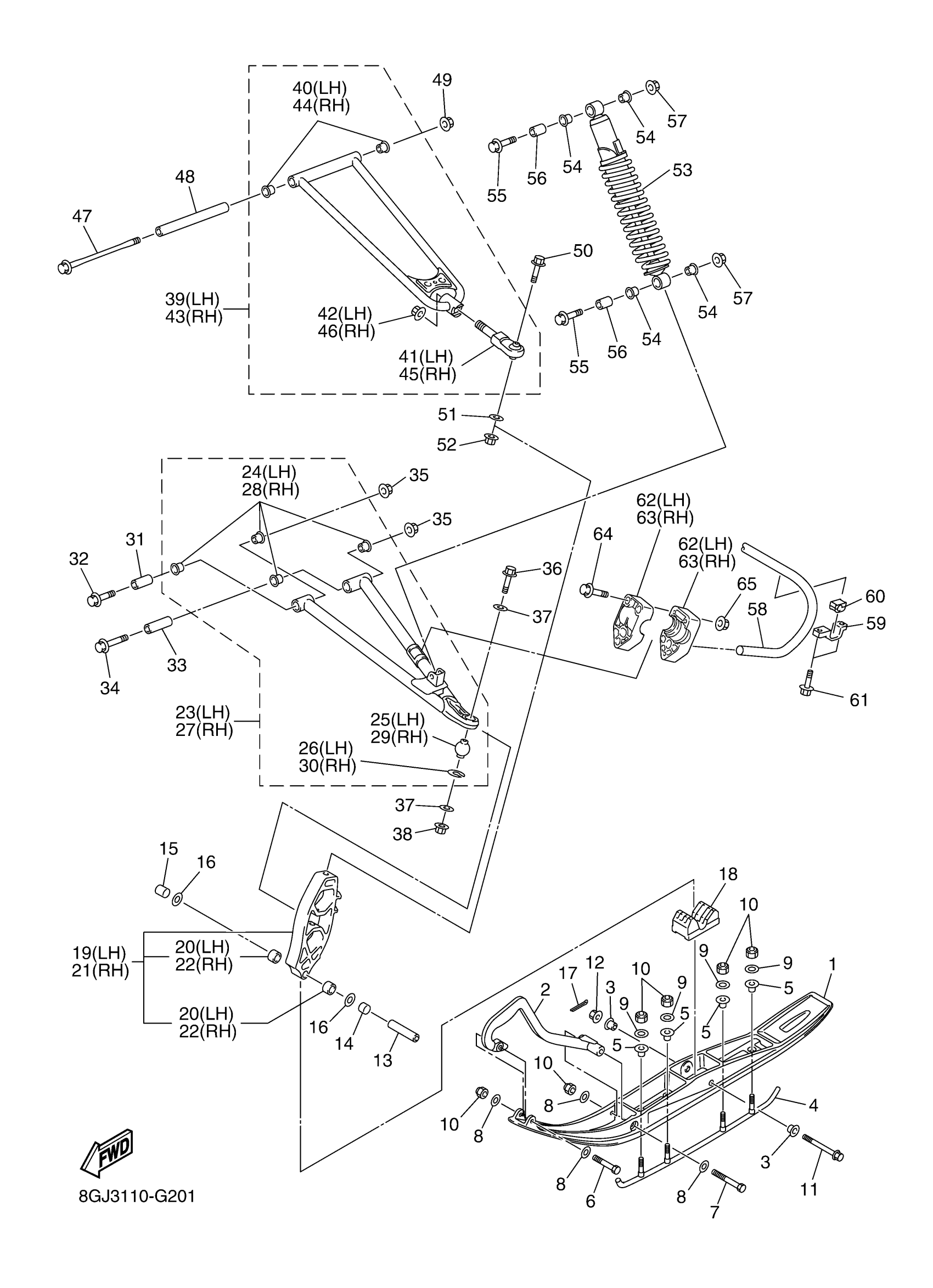

Yamaha PZ50VTZR (VENTURE LITE) 8GJ70 2010 SKI Diagram
#
1
SKI 1, BLACK
8EX-23711-00-BK
Unavailable
2
BLACK 8DM HANDLE PLASTIC
8DM-23712-00-BK
Unavailable
3
. COLLAR 1
8EX-F3754-00-00
Unavailable
4
RUNNER 1
8GK-F3731-00-00
Unavailable
5
BUSH, SKI 1
8EK-F3751-00-00
Unavailable
16
WASHER, PLATE
90201-16022-00
Unavailable
17
PIN, COTTER
91490-20025-00
Unavailable
18
STOPPER 1
8GK-23743-00-00
Unavailable
19
STEERING KNUCKLE ASSY (LEFT)
8GK-23501-10-00
Unavailable
20
BUSH, BIMETAL FORMED
90384-16N51-00
Unavailable
21
STEERING KNUCKLE ASSY (RIGHT)
8GK-23502-10-00
Unavailable
22
BUSH, BIMETAL FORMED
90384-16N51-00
Unavailable
23
FRONT LOWER ARM COMP. (LEFT)
8GK-23570-C0-00
Unavailable
24
BUSH, SOLID
90381-16003-00
Unavailable
25
BALL JOINT 2
8GK-23579-01-00
Unavailable
26
CIRCLIP (IR)(93450-35015 SUPER
99009-35700-00
Unavailable
27
FRONT LOWER ARM COMP. (RIGHT)
8GK-23580-C0-00
Unavailable
28
BUSH, SOLID
90381-16003-00
Unavailable
29
BALL JOINT 2
8GK-23579-01-00
Unavailable
30
CIRCLIP (IR)(93450-35015 SUPER
99009-35700-00
Unavailable
31
COLLAR
90387-10093-00
Unavailable
32
BOLT, FLANGE
90105-10211-00
Unavailable
33
COLLAR
90387-10074-00
Unavailable
34
BOLT, FLANGE
90105-10212-00
Unavailable
36
BOLT, FLANGE
90105-10210-00
Unavailable
37
WASHER, PLATE
90201-10051-00
Unavailable
39
FRONT UPPER ARM COMP. (LEFT)
8GK-23540-C0-00
Unavailable
40
BUSH, SOLID
90381-15003-00
Unavailable
41
BALL JOINT 1
8GK-23549-00-00
Unavailable
42
NUT, U FLANGE
95602-14200-00
Unavailable
43
FRONT UPPER ARM COMP. (RIGHT)
8GK-23550-C0-00
Unavailable
44
BUSH, SOLID
90381-15003-00
Unavailable
45
BALL JOINT 1
8GK-23549-00-00
Unavailable
46
NUT, U FLANGE
95602-14200-00
Unavailable
47
BOLT, FLANGE
90105-10213-00
Unavailable
48
COLLAR
90387-10073-00
Unavailable
50
BOLT
91312-10045-00
Unavailable
51
WASHER, PLATE
90201-10052-00
Unavailable
53
ABSORBER ASSY 1
8GJ-2376A-20-00
Unavailable
54
BUSH, SOLID(8CM)
90381-14101-00
Unavailable
55
BOLT, FLANGE (8V9)
95812-10045-00
Unavailable
56
COLLAR (8U7)
90387-105G5-00
Unavailable
58
BAR, STABILIZER FRONT
8GK-2386E-10-00
Unavailable
59
HOLDER, STABILIZER FRONT
8GK-2386C-00-00
Unavailable
60
BUSH, STABILIZER FRONT
8GK-2386G-10-00
Unavailable
61
BOLT, FLANGE
95812-08020-00
Unavailable
62
JOINT, STABILIZER 1
8GK-2385L-10-00
Unavailable
63
JOINT, STABILIZER 2
8GK-2385M-10-00
Unavailable
64
BOLT, FLANGE
95817-06040-00
Unavailable
65
NUT, U FLANGE
95604-06200-00
Unavailable
