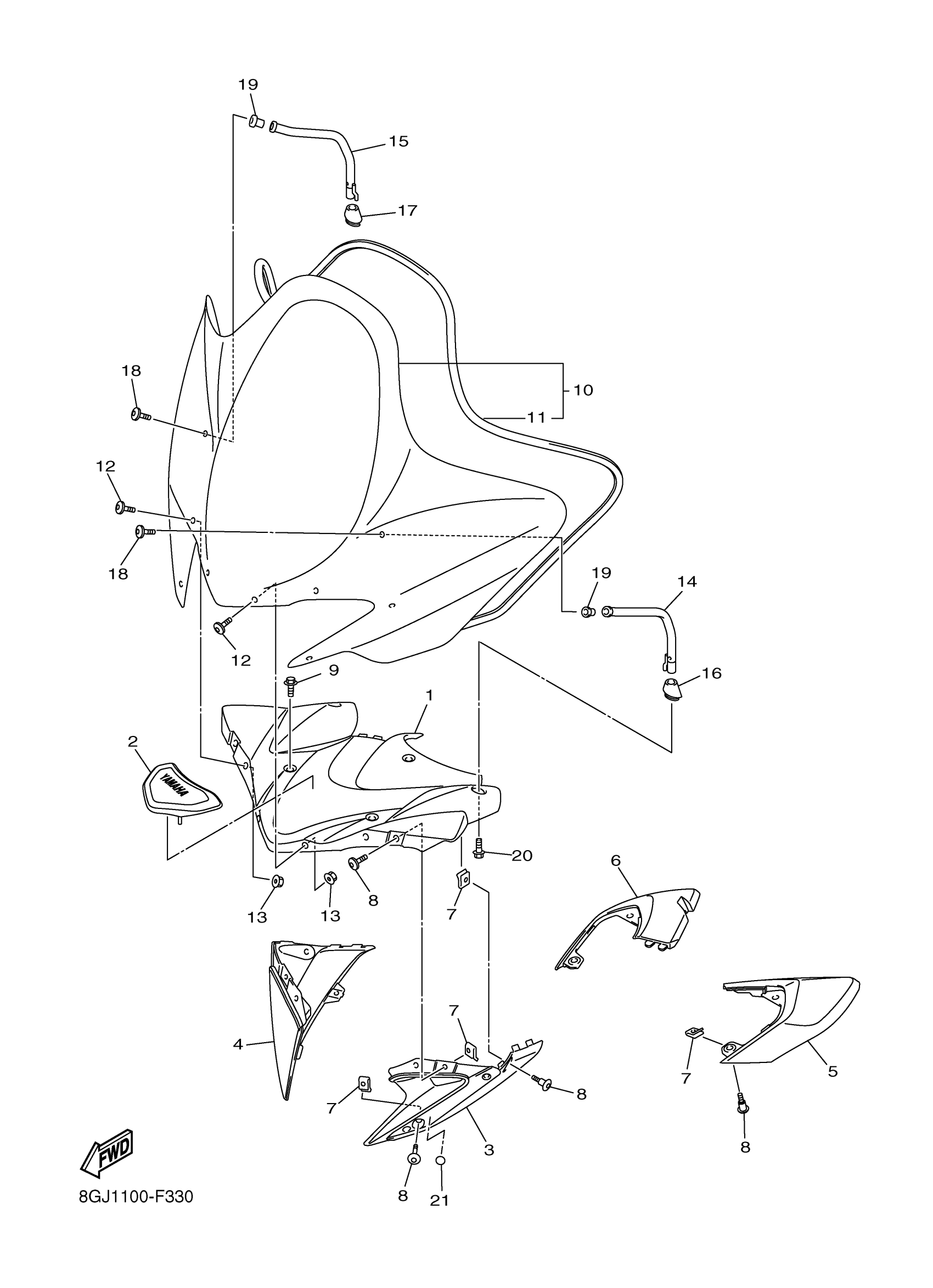

Yamaha PZ50VTYS (VENTURE LITE) 8GJ5 2009 WINDSHIELD Diagram

#

Description
Price

1

COVER, HEADLIGHT

8GJ-77251-01-00

Unavailable

2

DAMPER

8GJ-77238-00-00

Unavailable

3

PLATE 1

8GJ-77185-00-00

$98.26

4

PLATE 2

8GJ-77186-00-00

$101.50

5

PANEL, INSTRUMENT

8GJ-77712-00-P2

Unavailable

5

PANEL, INSTRUMENT

8GJ-77712-00-P3

$127.32

6

PANEL, INSTRUMENT

8GJ-77713-00-P2

Unavailable

6

PANEL, INSTRUMENT

8GJ-77713-00-P3

$127.32

7

NUT, SPRING(4ES)

90183-06069-00

$5.81

8

SCREW(2XF)

90149-06263-00

$5.38

9

BOLT

90109-06220-00

$7.08

10

WINDSHIELD COMP.

8GJ-K7210-00-00

Unavailable

11

. TRIM, UPPER

8GJ-K7213-00-00

Unavailable

12

SCREW(3YF)

90149-05299-00

$3.39

13

NUT(1KT)

90179-05523-00

$5.42

14

ROD 1

8GJ-77119-00-00

Unavailable

15

ROD 2

8GJ-77129-00-00

Unavailable

16

HOLDER, ROD 1

8GJ-77139-00-00

Unavailable

17

HOLDER, ROD 2

8GJ-77149-00-00

Unavailable

18

SCREW(3YF)

90149-05299-00

$3.39

19

NUT

90179-05003-00

Unavailable

20

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

21

SPACER

80F-21998-00-00

Unavailable
