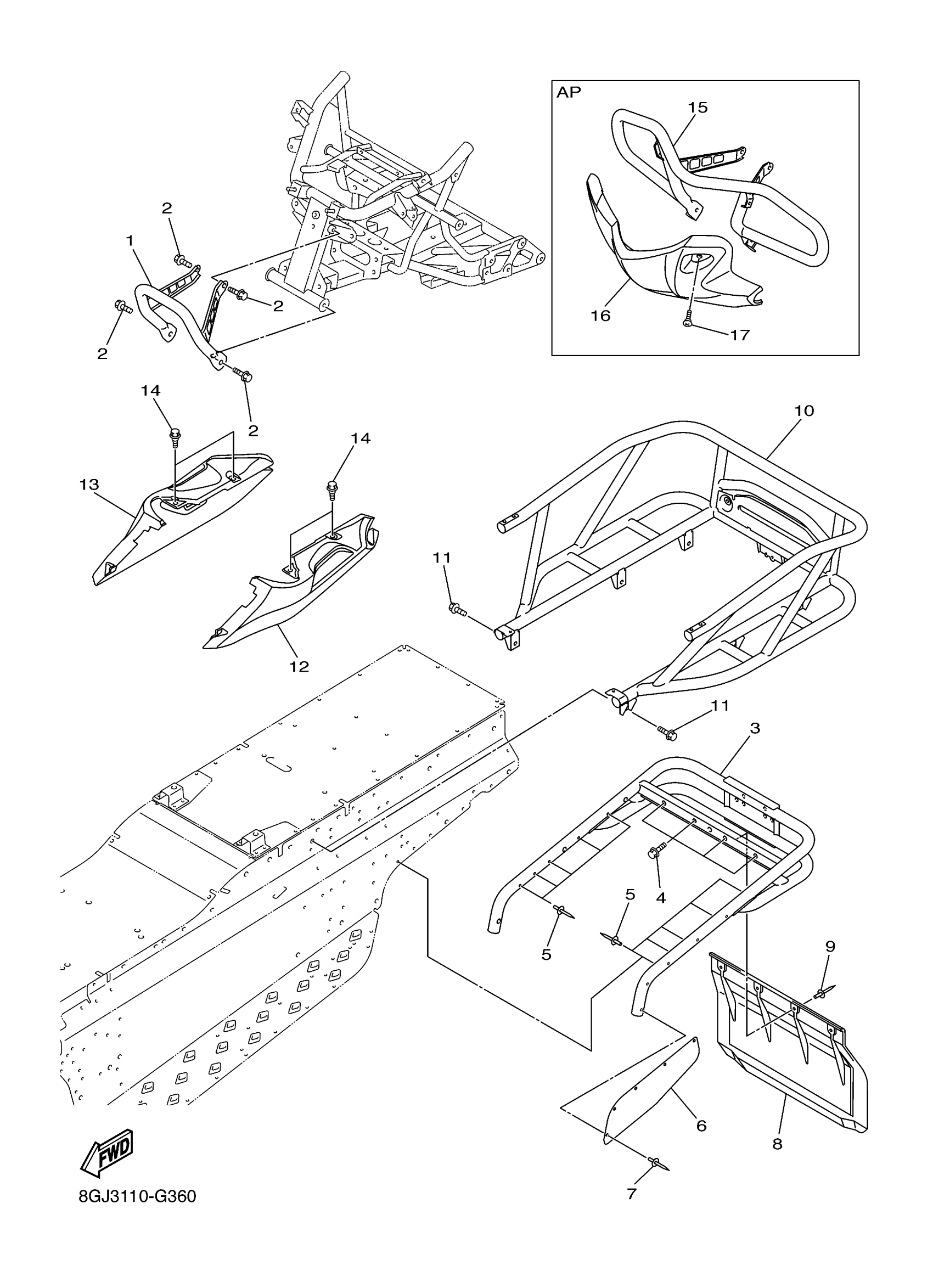

Yamaha PZ50VTYS (VENTURE LITE) 8GJ5 2009 BUMPER Diagram

#

Description
Price

1

BUMPER, FRONT 1

8GC-77511-00-00

$116.88

2

BOLT, FLANGE

95814-08016-00

$6.68

3

BUMPER, REAR 1

8GJ-77541-10-00

Unavailable

4

BOLT, FLANGE

95814-08016-00

$6.68

5

RIVET, BLIND

90267-47195-00

$3.33

6

FLAP

8GJ-77595-00-00

$19.91

7

RIVET, BLIND(8CH)

90267-47187-00

$1.84

8

FLAP

8GW-77595-00-00

Unavailable

9

RIVET, BLIND(8CH)

90267-47187-00

$1.84

10

REAR BUMPER COMP.

8GJ-77540-00-00

$1,076.99

11

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

12

COVER, 3

8GJ-77563-01-00

$27.72

13

COVER, 4

8GJ-77564-01-00

$107.42

14

BOLT

90109-06220-00

$7.43

15

BUMPER, FRONT 1

8GR-77511-00-00

$179.66

16

PROTECTOR 5

8GR-77555-00-00

$116.04

17

SCREW(2XF)

90149-06263-00

$5.21
