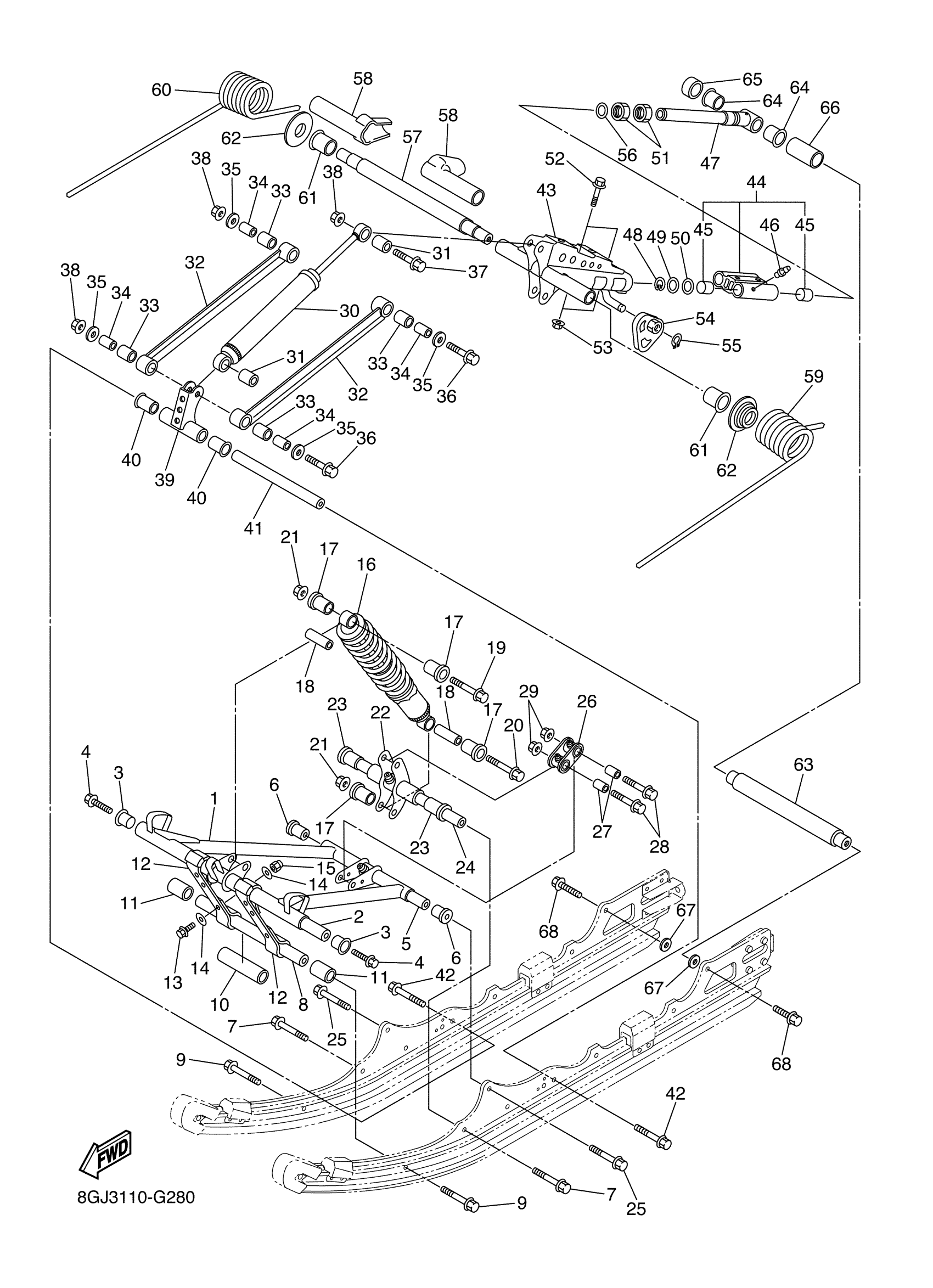

Yamaha PZ50VTYS (VENTURE LITE) 8GJ5 2009 TRACK SUSPENSION 2 Diagram

#

Description
Price

1

ARM, PIVOT 1

8GJ-47331-01-00

$325.63

2

SHAFT 1

8GJ-47465-00-00

Unavailable

3

BUSH

90386-22001-00

$6.08

4

BOLT

90109-10032-00

$5.86

5

SHAFT 4

8ES-47486-00-00

$36.48

6

COLLAR

90387-10022-00

$16.62

7

BOLT, FLANGE

90105-10209-00

$6.82

8

SHAFT 3

8ES-47485-00-00

$50.74

9

BOLT, FLANGE

90105-10209-00

$6.82

10

COLLAR

90387-19002-00

$5.82

11

COLLAR

90387-19001-00

$6.82

12

STOPPER 1

8ET-47495-10-00

$41.54

13

BOLT, HEXAGON

97017-06025-00

$2.98

14

WASHER, PLATE

90201-06081-00

$6.18

15

NUT, NYLON

95707-06300-00

$3.20

16

SHOCK ABSORBER 2

8GJ-47481-20-00

$303.48

17

BUSH, SOLID(8CM)

90381-14101-00

$7.48

18

COLLAR (8U7)

90387-105G5-00

$7.35

19

BOLT, FLANGE (8V9)

95812-10045-00

$3.54

20

BOLT(88R)

90101-10738-00

$6.28

21

NUT, S/L FLANGE

95602-10200-00

$2.29

22

BRACKET, ARM PIVOT

8ES-47349-01-00

$61.26

23

BUSH

90386-20001-00

$8.97

24

SHAFT 5

8GN-47487-00-00

$91.60

25

BOLT, FLANGE

90105-10209-00

$6.82

26

BRACKET 2

8FK-47416-01-00

$49.37

27

COLLAR

90387-10024-00

$18.18

28

BOLT, FLANGE (8V9)

95812-10045-00

$3.54

29

NUT, S/L FLANGE

95602-10200-00

$2.29

30

SHOCK ABSORBER

8GJ-47480-20-00

Unavailable

31

COLLAR

90387-10023-00

$17.41

32

ROD, RELAY

8FK-47494-00-00

$57.01

33

BUSH

90386-16001-00

$9.88

34

COLLAR (8K4)

90387-101A1-00

$3.78

35

WASHER, PLATE

90201-10043-00

$1.88

36

95812-10090

95812-10090-00

$3.49

37

BOLT, FLANGE

95812-10040-00

$7.42

38

NUT, S/L FLANGE

95602-10200-00

$2.29

39

BRACKET, ARM PIVOT

8FK-47349-10-00

$44.14

40

BUSH

90386-20001-00

$8.97

41

SHAFT 5

8ES-47487-00-00

$43.08

42

BOLT, FLANGE

90105-10209-00

$6.82

43

ARM, PIVOT 2

8ET-47332-01-00

$200.43

44

STOPPER, CONT. 1

8ES-4745D-00-00

$128.48

45

BUSH, SOLID

90380-24001-00

$8.38

46

NIPPLE, GREASE

93700-06M03-00

$7.15

47

ROD, CONTROL 1

8ET-4745A-00-00

$104.57

48

CIRCLIP

99009-24400-00

$7.49

49

WASHER, PLATE

90201-24015-00

$5.74

50

WASHER, PLATE

90202-25001-00

$0.91

51

STOPPER, ADJUSTING NUT

8ES-48142-00-00

$27.05

52

BOLT, FLANGE(87Y)

95817-10055-00

$4.54

53

NUT, S/L FLANGE

95602-10200-00

$2.29

54

HOOK 2

8ES-47447-00-00

$17.94

55

CIRCLIP(13H)

99009-14400-00

$2.48

56

WASHER, PLATE

90202-25002-00

$9.71

57

SHAFT 2

8GJ-47475-00-00

$254.91

58

PROTECTOR

8ES-47445-00-00

$20.12

59

SPRING, REAR 1

8ET-47473-00-00

$270.51

59

SPRING, REAR 1

8ET-47473-20-00

$272.72

59

SPRING, REAR 1

8ET-47473-30-00

$289.15

60

SPRING, REAR 2

8ET-47474-00-00

$373.18

60

SPRING, REAR 2

8ET-47474-20-00

$272.72

60

SPRING, REAR 2

8ET-47474-30-00

$289.15

61

BUSH, SOLID(8CJ)

90381-28108-00

$12.18

62

PLATE, GUIDE

8ES-47467-00-00

$16.89

63

SHAFT, PIVOT

8ES-47337-00-00

$51.05

64

BUSH

90386-25001-00

$5.60

65

COLLAR

90387-26002-00

$29.63

66

COLLAR

90387-26003-00

$5.78

67

WASHER, PLATE

90201-10028-00

$5.72

68

BOLT, FLANGE

95817-10030-00

$6.17
