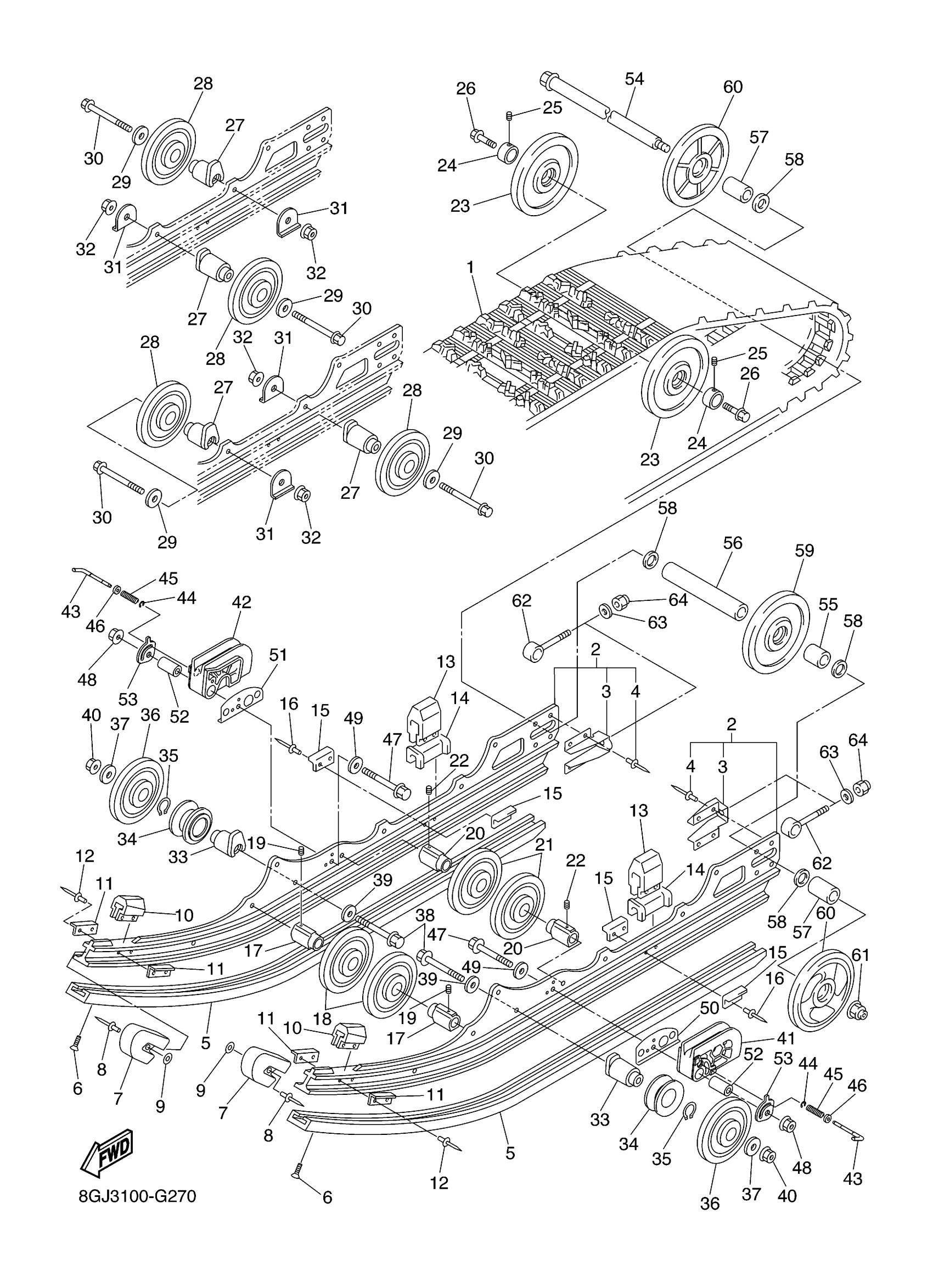

Yamaha PZ50VTYS (VENTURE LITE) 8GJ5 2009 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

TRACK ASSY

8ET-47110-11-00

$1,888.99

2

FRAME, SLIDING

8ET-W4741-11-00

$380.85

3

BRACKET

8DM-4741B-00-00

$39.86

4

RIVET

8V0-47468-00-00

$7.54

5

FX NYTRO 162" HP WIDE HYFAX

SMA-8HR92-00-BK

$34.91

6

SCREW, CROSSRECESS (8G6)

90151-06005-00

$7.18

7

RUNNER, SLIDING 2

8ED-47422-00-00

$42.54

8

RIVET BLIND

90267-48194-00

$2.20

9

WASHER, PLATE(8CM)

90201-047R8-00

$2.31

10

DAMPER 1

8ES-47456-00-00

$6.28

11

PLATE, DAMPER

8K2-47458-01-00

$2.45

12

RIVET, BLIND

90267-48199-00

$2.62

13

DAMPER 2

8CM-47457-00-00

$8.78

14

SPACER

8CM-47341-00-00

$7.37

15

PLATE, DAMPER

8AX-47458-00-00

$8.08

16

RIVET, BLIND

90267-48199-00

$2.62

17

COLLAR

8ES-47319-01-00

$26.20

18

SUSPENSION WHEEL ASSY

8ET-47310-00-00

$76.81

19

BOLT, SET (8K2)

90113-06039-00

$6.97

20

COLLAR

8ES-47319-01-00

$26.20

21

SUSPENSION WHEEL ASSY

8ET-47310-00-00

$76.81

22

BOLT, SET (8K2)

90113-06039-00

$6.97

23

GUIDE WHEEL ASSY

8CR-47550-00-00

$22.15

24

COLLAR 1

8FS-47365-00-00

$24.06

25

BOLT, SET (8K2)

90113-06039-00

$6.97

26

BOLT

90109-10032-00

$5.86

27

BRACKET 7

8ES-47419-00-00

$21.03

28

SUSPENSION WHEEL ASSY

8ET-47310-00-00

$76.81

29

WASHER, PLATE

90201-10038-00

$5.12

30

BOLT, FLANGE

95812-10080-00

$7.18

31

WASHER, CLAW

90214-10003-00

$19.45

32

NUT, S/L FLANGE

95602-10200-00

$2.29

33

BRACKET 7

8ES-47419-10-00

$21.03

34

HOOK 1

8ET-47446-00-00

$16.11

35

CIRCLIP(6U2)

93410-35M10-00

$4.54

36

SUSPENSION WHEEL ASSY

8ET-47310-00-00

$76.81

37

WASHER, PLATE

90201-10038-00

$5.12

38

BOLT, FLANGE

95812-10080-00

$7.18

39

WASHER, PLATE

90201-10052-00

$6.28

40

NUT, S/L FLANGE

95602-10200-00

$2.29

41

SPRING, OUTSIDE 1

8ET-47435-10-00

$56.15

42

SPRING, OUTSIDE 2

8ET-47436-10-00

$60.85

43

PIN 1

8ET-47449-10-00

$24.17

44

CIRCLIP (EU0)

99080-04600-00

$1.67

45

SPRING, CONPRESSION (7R4)

90501-08665-00

$1.78

46

WASHER 6464337400

90201-06040-00

Unavailable

47

BOLT, FLANGE

90105-10029-00

$3.23

48

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

49

WASHER, PLATE (17K)

90201-106F2-00

$7.66

50

WASHER 1

8ET-47374-10-00

$11.94

51

WASHER 2

8ET-47375-10-00

$11.94

52

COLLAR(47X)

90387-106K8-00

$8.09

53

WASHER, LOCK

8ET-47347-00-00

$4.38

54

REAR AXLE COMP.

8L8-47520-10-00

$67.31

55

COLLAR

90387-20015-00

$23.32

56

COLLAR

90387-20016-00

$20.42

57

COLLAR

90387-20019-00

$22.38

58

WASHER, PLATE(89W)

90201-205R6-00

$10.68

59

GUIDE WHEEL ASSY

8CR-47550-10-00

Unavailable

60

WEIGHT

8EK-47550-11-00

Unavailable

61

NUT, U FLANGE

95602-14200-00

$9.89

62

COLLAR 3

8DM-47479-00-00

$15.04

63

WASHER, PLATE

92990-10600-00

$2.61

64

NUT, NYLON

95707-10300-00

$6.68
