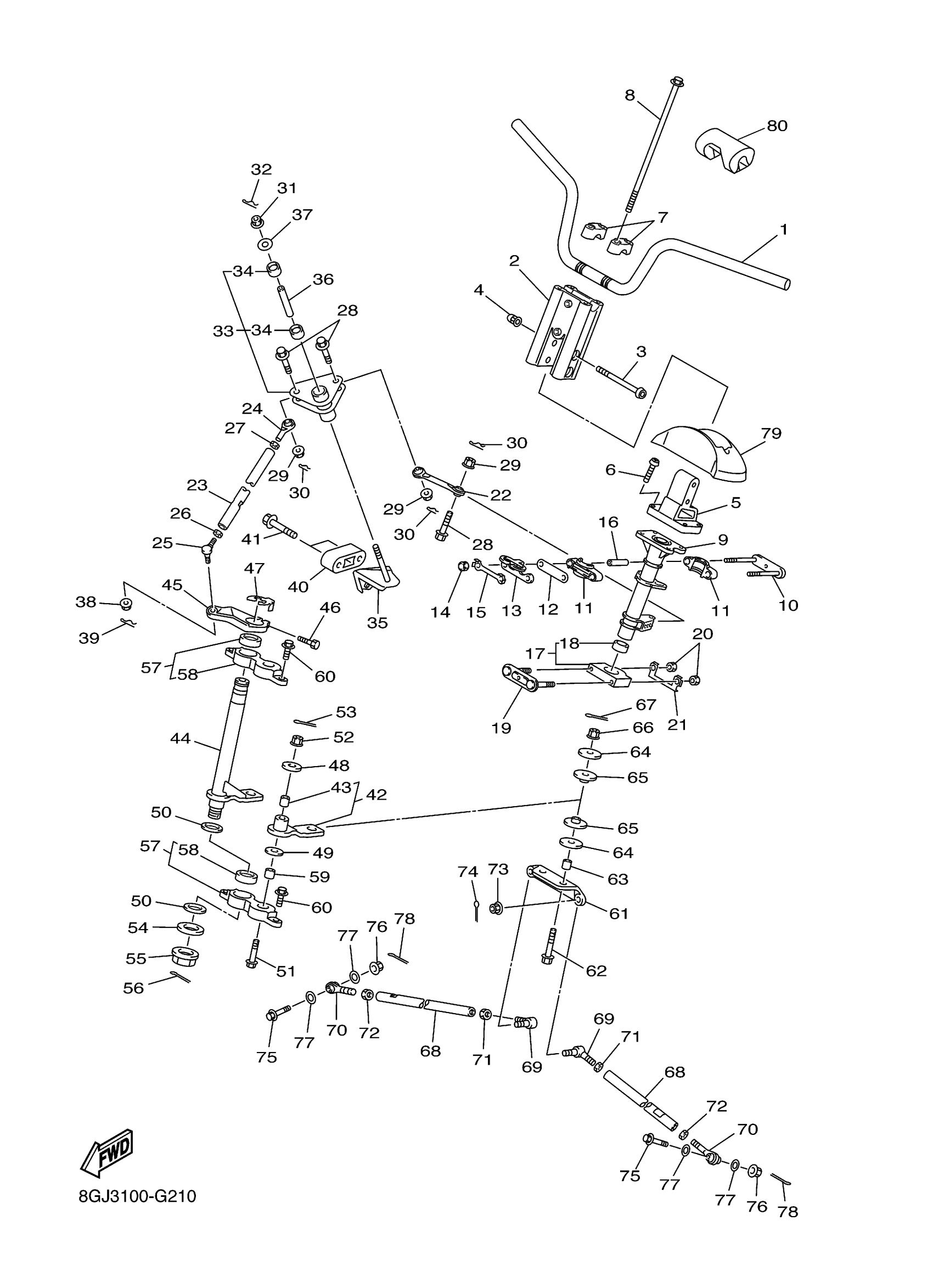

Yamaha PZ50VTYS (VENTURE LITE) 8GJ5 2009 STEERING Diagram

#

Description
Price

1

HANDLEBAR

8GJ-26111-00-00

$82.48

2

JOINT

8GJ-2381B-00-00

$265.38

3

BOLT, BUTTON HEAD

92014-08070-00

$4.15

4

NUT, CROWN(3AA)

90176-08068-00

$6.46

5

BRKT 20

8GF-2381T-10-00

$228.03

6

BOLT, BUTTON HEAD(3YF)

92014-08025-00

$5.86

7

HOLDER, HANDLE UPPER

1E6-23441-00-00

$22.38

8

BOLT, FLANGE(4FM)

95814-08035-00

$6.68

9

COLUMN, STEERING 2

8GC-23813-00-00

$199.65

10

HOLDER 2

8GC-23867-00-00

$17.51

11

PLANE BEARING, STEERING

8FA-23812-00-00

$5.66

12

HOLDER 2

8FA-23867-00-00

$2.49

13

HOLDER, BEARING

8GC-23872-00-00

$12.85

14

NUT, CAP

95307-08800-00

Unavailable

15

WASHER, LOCK 1

1UY-23894-01-00

$6.86

16

COLLAR

90387-09006-00

$5.43

17

PLANE BEARING, STEERING

8GC-23812-00-00

$55.37

18

BEARING

93317-425B7-00

Unavailable

19

HOLDER

8GJ-23857-00-00

$18.14

20

NUT(6L2)

95333-08600-00

$3.20

21

WASHER, LOCK 1

8GJ-23894-00-00

$11.85

22

ROD, STEERING

8GC-23828-00-00

$141.20

23

ROD, STEERING RELAY

8GC-23821-00-00

$15.25

24

JOINT, UNIVERSAL 1

8GC-23841-00-00

$61.14

25

JOINT, UNIVERSAL 2

8CR-23845-10-00

$52.81

26

NUT (682)

95380-10700-00

$5.78

27

NUT, HEXAGON (8A5)

90170-10186-00

$7.60

28

BOLT, WASHER BASED(47X)

90105-08321-00

$5.74

29

NUT,FLANGE(J10)

95702-08500-00

$0.80

30

CLIP

90468-16001-00

$4.51

31

NUT, FLANGE(3BM)

95704-10500-00

$1.71

32

CLIP (7U6)

90468-18121-00

$0.74

33

ARM, CONTROL 1

8GC-2384E-00-00

$70.05

34

BEARING, CYLINDRICAL(3VR)

93317-41767-00

$38.78

35

BRACKET 1

8GK-23881-00-00

$53.86

36

NUT

8GC-23846-00-00

$11.06

37

WASHER, PLATE

90201-121U3-00

$5.45

38

NUT, FLANGE(3BM)

95704-10500-00

$1.71

39

PIN, COTTER (648)

91490-20015-00

$1.85

40

SPACER

8GJ-23448-00-00

$23.69

41

BOLT, FLANGE

95817-08055-00

$2.82

42

ARM PIVOT ASSY

8GC-2389K-00-00

$61.72

43

BUSH

8GC-23526-00-00

$26.42

44

PIVOT ARM ASSY 2

8GC-2389M-01-00

$223.52

45

ARM, INSIDE

8GC-2381A-00-00

$75.68

46

BOLT, SOCKET

91317-08025-00

$6.25

47

CIRCLIP

8GC-23183-00-00

$6.74

48

WASHER, PLATE(N04)

90201-124G7-00

$4.95

49

WASHER PLATE 371115580000

90201-25291-00

$8.91

50

WASHER, PLATE (5F7)

90201-256E4-00

$9.78

51

BOLT 1

8GC-23346-00-00

$7.05

52

95702-12500

95702-12500-00

$3.03

53

PIN, COTTER

91490-25020-00

$2.94

54

WASHER, PLATE

90201-22018-00

$4.11

55

NUT (26H)

90179-22412-00

$17.88

56

PIN, COTTER

91402-20035-00

$0.15

57

BRACKET, PIVOT

8GC-2389H-00-00

$99.48

58

BEARING

93317-425B7-00

Unavailable

59

COLLAR

8GC-23113-00-00

$22.58

60

BOLT, FLANGE(3GD)

95817-10025-00

$6.17

61

ARM, IDLER

8GC-23826-00-00

$109.31

62

BOLT, WASHER BASED(4KD)

90105-10728-00

$7.49

63

COLLAR

90387-10070-00

$25.31

64

WASHER, PLATE(JN9)

90201-100S2-00

$6.14

65

BUSH 1

8GC-23362-00-00

$2.95

66

NUT, SELF-LOCKING

90185-10011-00

$3.92

67

PIN, COTTER (648)

91490-20015-00

$1.85

68

ROD, TIE

8GC-23831-00-00

$35.60

69

JOINT, UNIVERSAL 2

8CR-23845-10-00

$52.81

70

JOINT, UNIVERSAL 3

8GC-23847-00-00

$68.89

71

NUT (682)

95380-10700-00

$5.78

72

NUT, HEXAGON (8A5)

90170-10186-00

$7.60

73

NUT, FLANGE(3BM)

95704-10500-00

$1.71

74

PIN, COTTER (648)

91490-20015-00

$1.85

75

BOLT

8GC-23493-00-00

$6.18

76

NUT,FLANGE(J10)

95702-08500-00

$0.80

77

WASHER, PLATE

90201-06018-00

$3.74

78

PIN, COTTER (648)

91490-20015-00

$1.85

79

COVER, HANDLEBAR LOWER 1

8GJ-26144-00-00

$33.29

80

PAD, STEERING

8FR-23815-00-00

$138.89
