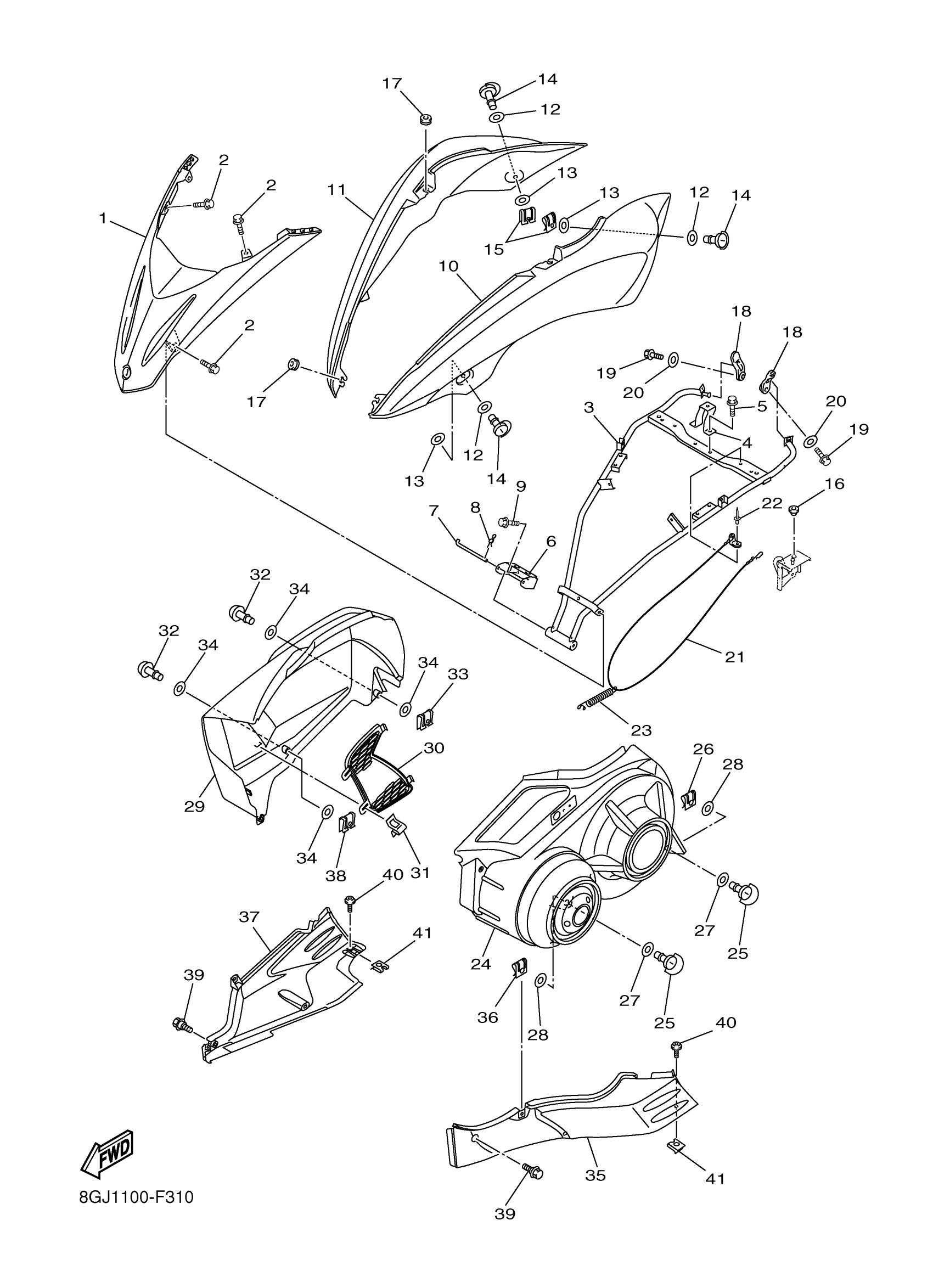

Yamaha PZ50VTYS (VENTURE LITE) 8GJ5 2009 SHROUD Diagram
#
1
SHROUD
8GJ-77111-00-P2
Unavailable
1
SHROUD
8GJ-77111-00-P3
Unavailable
2
BOLT
90109-06220-00
$10.49
3
HINGE 1
8GJ-77145-00-00
Unavailable
4
STAY 1
8GJ-77125-00-00
Unavailable
5
BOLT, FLANGE
95817-06012-00
$1.43
6
HINGE 2
8GJ-77146-00-00
Unavailable
7
PIN
8GJ-77384-00-00
Unavailable
8
CLIP (7R4)
90468-12120-00
$8.49
9
BOLT, FLANGE
95817-06016-00
$2.75
10
PANEL 1
8GJ-2835U-20-00
Unavailable
11
PANEL 2
8GJ-2835V-20-00
Unavailable
12
WASHER, SPECIAL 1
2TK-21757-00-00
$3.38
13
WASHER, SPECIAL 1
5TJ-21757-00-00
$7.99
14
HEAD
3FV-28386-00-00
$40.99
15
PLATE, SPRING
4XV-2177L-01-00
Unavailable
16
STOPPER, MAIN STAND
4N0-27114-00-00
Unavailable
17
DAMPER, SIDE COVER (437)
90480-12053-00
Unavailable
18
BODY, LATCH 1
8GJ-77171-00-00
Unavailable
19
BOLT
90109-085G1-00
Unavailable
20
958-69527-00 WASHER, PLAIN
92990-10200-00
Unavailable
21
STOPPER, SHROUD
8GJ-77118-00-00
Unavailable
22
RIVET, BLIND(8CH)
90267-47187-00
Unavailable
23
CLAMP, ROD
89A-77159-00-00
Unavailable
24
HOOD 3
8GC-2197H-00-00
Unavailable
25
HEAD
3FV-28386-00-00
$40.99
26
PLATE, SPRING
4XV-2177L-01-00
Unavailable
27
WASHER, SPECIAL 1
2TK-21757-00-00
$3.38
28
WASHER, SPECIAL 1
5TJ-21757-00-00
$7.99
29
HOOD 4
8GC-2198H-01-00
Unavailable
30
LOUVER 4
8GC-77134-00-00
Unavailable
31
CLIP
90468-06001-00
Unavailable
32
HEAD
5PW-28386-00-00
Unavailable
33
PLATE, SPRING
5PW-2177L-01-00
Unavailable
34
WASHER, SPECIAL 1
2TK-21757-00-00
$3.38
35
FRAME UNDER 1
8GC-2196A-00-00
Unavailable
36
PLATE, SPRING
4XV-2177L-01-00
Unavailable
37
FRAME, UNDER 2
8GC-2196E-00-00
Unavailable
38
PLATE, SPRING
5PW-2177L-01-00
Unavailable
39
BOLT
90109-06220-00
$10.49
40
SCREW
90149-06105-00
Unavailable
41
NUT, SPRING
90183-06100-00
Unavailable
