Description

Price

1

SECONDARY FIXED SHEAVE COMP.

88R-17660-03-00

$613.99

2

SECONDARY SLIDING SHEAVE

8GC-17670-00-00

$265.99

3

. SHOE, RAMP

8GC-17688-00-00

Unavailable

4

SCREW, BINDING

98907-06016-00

$9.49

5

BUSH, BIMETAL FORMED(81H)

90384-90081-00

$62.99

6

WASHER, PLATE (8U9)

90201-345G2-00

$12.49

7

WASHER, CLAW(88R)

90214-29060-00

$7.49

8

CIRCLIP(86F)

93440-34170-00

$8.49

9

SEAT, SECONDARY SPRING

8AT-17684-01-00

Unavailable

10

SPRING, TORSION

90508-58007-00

Unavailable

11

HOUSING, BEARING

8CR-47631-01-00

$21.99

12

BEARING(8CJ)

93399-99943-00

$53.99

13

BOLT, SET

90113-06006-00

$4.29

14

BOLT, FLANGE

95022-08025-00

$8.49

15

NUT, SELF-LOCKING

95602-08200-00

$3.20

16

WASHER, PLATE (888)

90201-25526-00

Unavailable

17

WASHER, PLATE (8R6)

90201-252F1-00

Unavailable

17

WASHER, PLATE (888)

90201-25527-00

Unavailable

18

WASHER, PLATE

90201-14022-00

Unavailable

19

BOLT, FLANGE

90105-14002-00

Unavailable

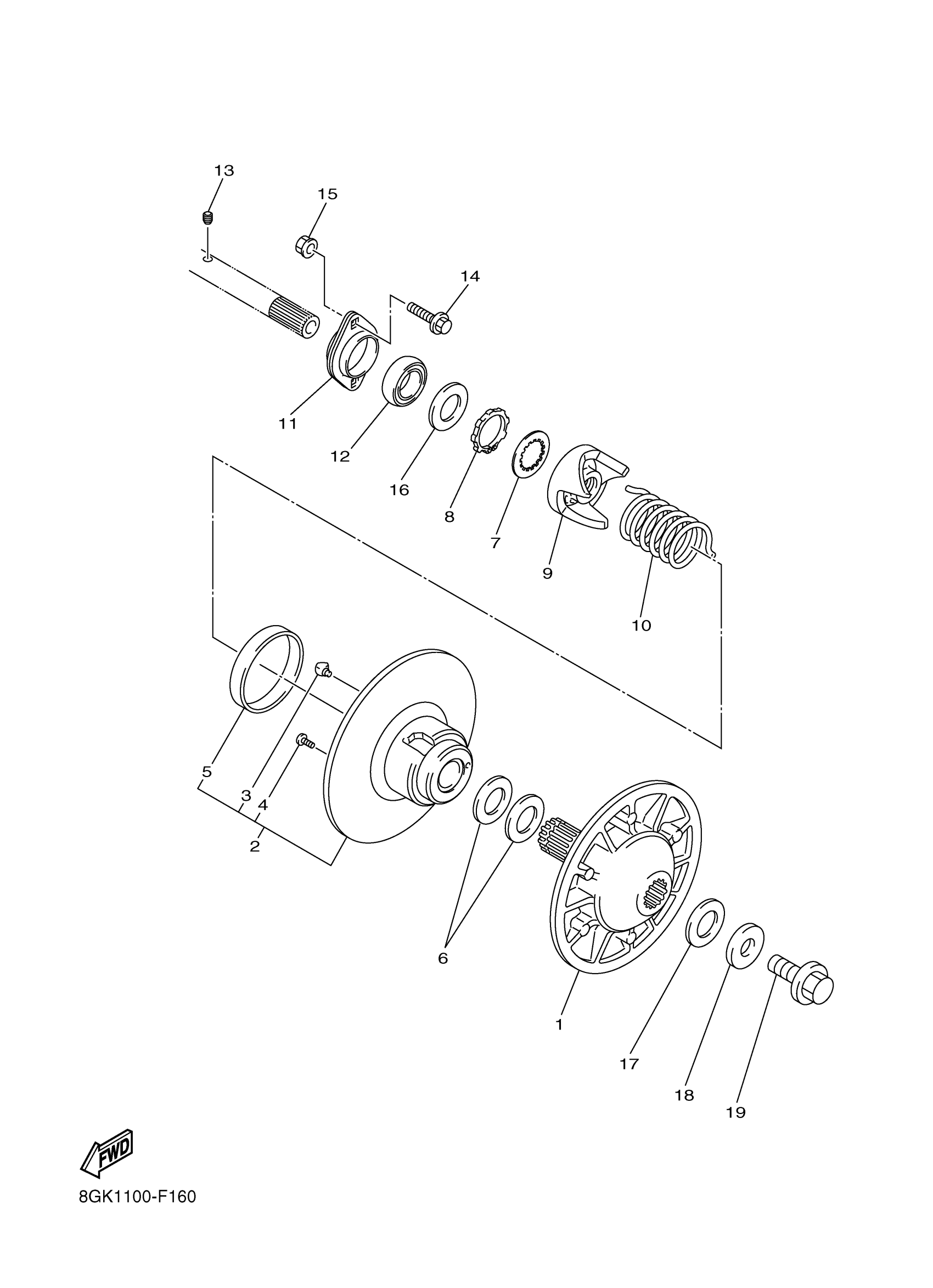

Yamaha PZ50VTYS (VENTURE LITE) 8GJ5 2009 SECONDARY SHEAVE Diagram

SECONDARY FIXED SHEAVE COMP.

SECONDARY SLIDING SHEAVE

. SHOE, RAMP

SCREW, BINDING

BUSH, BIMETAL FORMED(81H)

WASHER, PLATE (8U9)

WASHER, CLAW(88R)

CIRCLIP(86F)

SEAT, SECONDARY SPRING

SPRING, TORSION

HOUSING, BEARING

BEARING(8CJ)

BOLT, SET

BOLT, FLANGE

NUT, SELF-LOCKING

WASHER, PLATE (888)

WASHER, PLATE (8R6)

WASHER, PLATE (888)

WASHER, PLATE

BOLT, FLANGE
