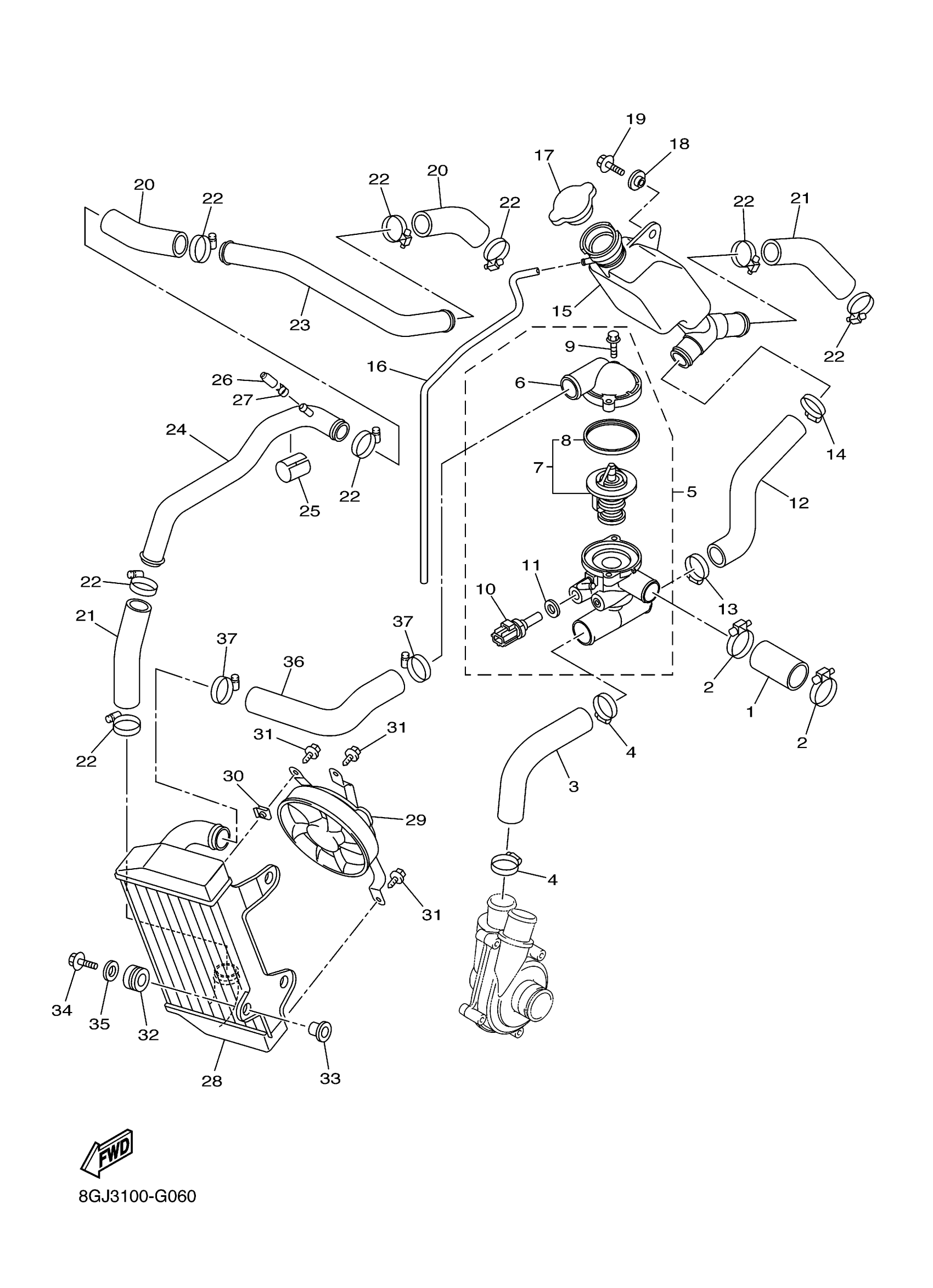

Yamaha PZ50VTYS (VENTURE LITE) 8GJ5 2009 RADIATOR HOSE Diagram

#

Description
Price

1

HOSE 2

8GC-1243E-00-00

$3.78

2

HOSE CLAMP ASSY

90450-35001-00

$5.25

3

HOSE, 4

8GC-1244G-00-00

$13.57

4

HOSE CLAMP ASSY(3GM)

90450-38040-00

$15.75

5

JOINT ASSY

8GC-12580-00-00

$191.94

6

COVER, THERMOSTAT

5VX-12413-00-00

$55.78

7

THERMOSTAT ASSY

8FN-12410-00-00

$76.80

8

SEAL, THERMOSTAT

8EK-12412-00-00

$14.37

9

BOLT, FLANGE

95817-06020-00

$2.69

10

THERMOSENSOR ASSY

8CC-85790-01-00

$86.91

11

WASHER, PLATE

90201-12790-00

$6.85

12

HOSE,3

8GJ-1243F-00-00

$21.26

13

HOSE CLAMP ASSY(3GM)

90450-38040-00

$15.75

14

HOSE CLAMP ASSY

90450-35001-00

$5.25

15

TANK, RESERVE

8GC-1249B-00-00

$60.80

16

HOSE (L660)

90445-08022-00

$6.34

17

CAP, RADIATOR

4FL-12462-00-00

$55.82

18

COLLAR (838-84757-00)

90387-06024-00

$9.09

19

BOLT, FLANGE

95817-06020-00

$2.69

20

PIPE 6

8GC-12476-00-00

$8.91

21

PIPE 7

8GC-12477-00-00

$14.06

22

HOSE CLAMP ASSY

90450-35001-00

$5.25

23

PIPE, WATER

8GJ-12564-00-00

$34.28

24

PIPE 1

8GC-12481-00-00

$35.23

25

DAMPER, RADIATOR

8GC-12465-00-00

$9.88

26

PLUG, BLIND

16G-13569-00-00

$6.72

27

CLIP

90467-11028-00

$5.14

28

RADIATOR ASSY

8GC-12461-00-00

$248.94

29

BLOWER ASSY

8GJ-12405-00-00

$274.08

30

NUT 1

5SL-12671-00-00

$5.20

31

BOLT, BLOWER HOLDING

5GJ-12675-00-00

$6.68

32

GROMMET(3RB)

90480-15528-00

$6.68

33

COLLAR

90387-06065-00

$9.55

34

BOLT, FLANGE

95022-06030-00

$1.40

35

WASHER, PLATE

90201-06380-00

$0.57

36

PIPE 8

8GJ-1248A-01-00

Unavailable

37

HOSE CLAMP ASSY

90450-35001-00

$5.25
