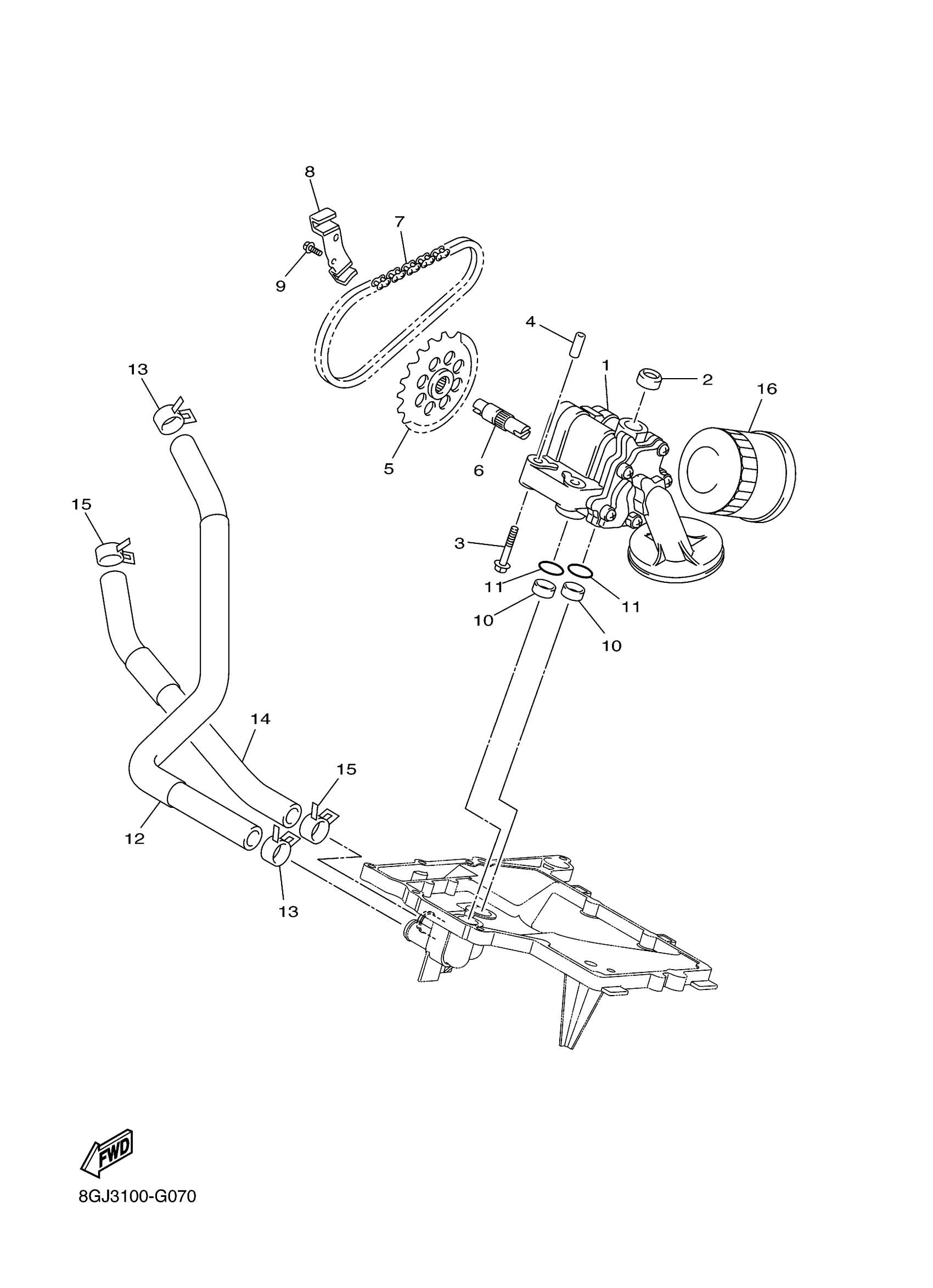

Yamaha PZ50VTYS (VENTURE LITE) 8GJ5 2009 OIL PUMP Diagram

Description

Price

OIL PUMP ASSY

8GC-13300-00-00

$294.97

GASKET

5GJ-13475-00-00

$4.74

BOLT, FLANGE

95817-06040-00

$4.54

PIN, DOWEL

99530-08012-00

$6.62

SPROCKET, DRIVEN

8GC-13355-10-00

$71.85

SHAFT, DRIVEN GEAR

8GC-13344-10-00

$38.43

CHAIN

94581-94068-00

$25.92

HOLDER

8GC-13898-10-00

$17.25

BOLT, FLANGE

90105-06090-00

$6.23

COLLAR

90387-13005-00

$2.12

O-RING (22U)

93210-15566-00

$5.78

HOSE, OIL 1

8GJ-13464-00-00

$57.17

CLIP(34X)

90467-22097-00

$7.14

HOSE, OIL 2

8GJ-13465-00-00

$44.23

CLIP(34X)

90467-22097-00

$7.14

ELEMENT ASSY, OIL CLEANER

5DM-13440-00-00

$21.95
