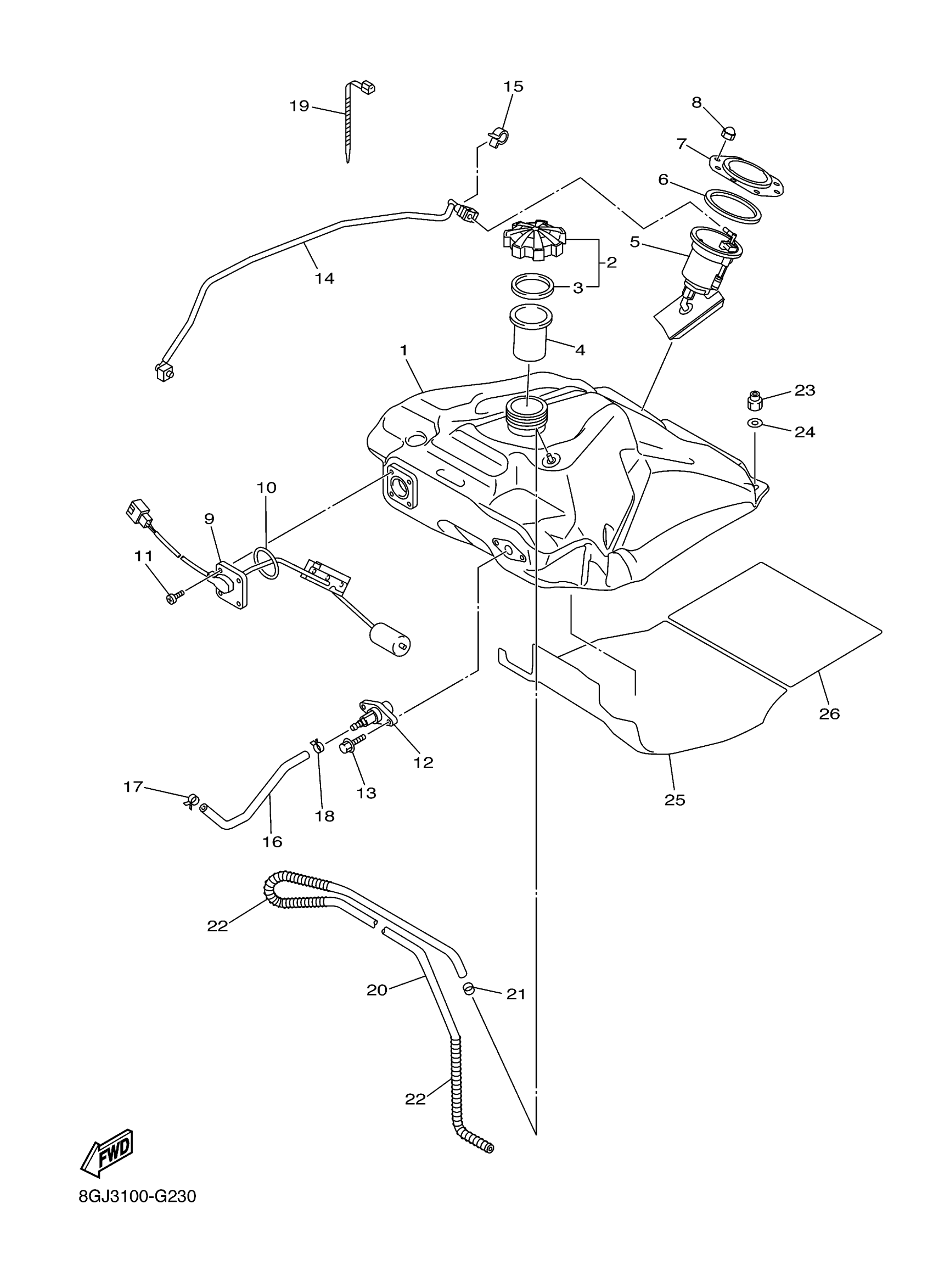

Yamaha PZ50VTYS (VENTURE LITE) 8GJ5 2009 FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL

8GJ-24111-10-00

Unavailable

2

CAP ASSY

8FG-24610-01-00

$34.95

3

GASKET, CAP 1

8HV-24641-00-00

Unavailable

4

TUBE, FILLER

8FN-24114-00-00

$28.60

5

FUEL PUMP COMP.

8GC-13907-04-00

Unavailable

6

O-RING

8FP-24486-00-00

$17.26

7

BRACKET, FUEL PUMP

8FP-24491-00-00

$15.88

8

NUT (J17)

95380-06800-00

$6.74

9

SENDER UNIT ASSY, FUEL METER

8GK-85752-00-00

$61.85

10

O-RING (102)

93210-41041-00

$5.86

11

SCREW, BIND

98902-05008-00

$1.23

12

VALVE, CHECK 1

8FP-24362-01-00

$61.94

13

BOLT, FLANGE

95817-06012-00

$1.49

14

PIPE, FUEL 1

8GJ-24311-10-00

$90.29

15

CLAMP

90464-14004-00

$5.40

16

PIPE 2

8GC-24312-10-00

$34.45

17

CLIP(3YX)

90467-13133-00

$5.13

18

CLIP(3YX)

90467-13133-00

$5.13

19

CLAMP

90464-13077-00

$6.68

20

PIPE 3

8GJ-24313-00-00

$14.62

21

CLIP (2A6)

90468-02078-00

$5.80

22

SPRING, COMPRESSION (10L)

90501-08668-00

$10.02

23

NUT, NYLON

95717-08300-00

$2.57

24

WASHER, PLATE (3L7)

90201-08784-00

$2.54

25

INSULATOR, FUEL TANK 1

8GJ-2416F-00-00

$114.49

26

INSULATOR, FUEL TANK 2

8GJ-2416G-01-00

$41.65
