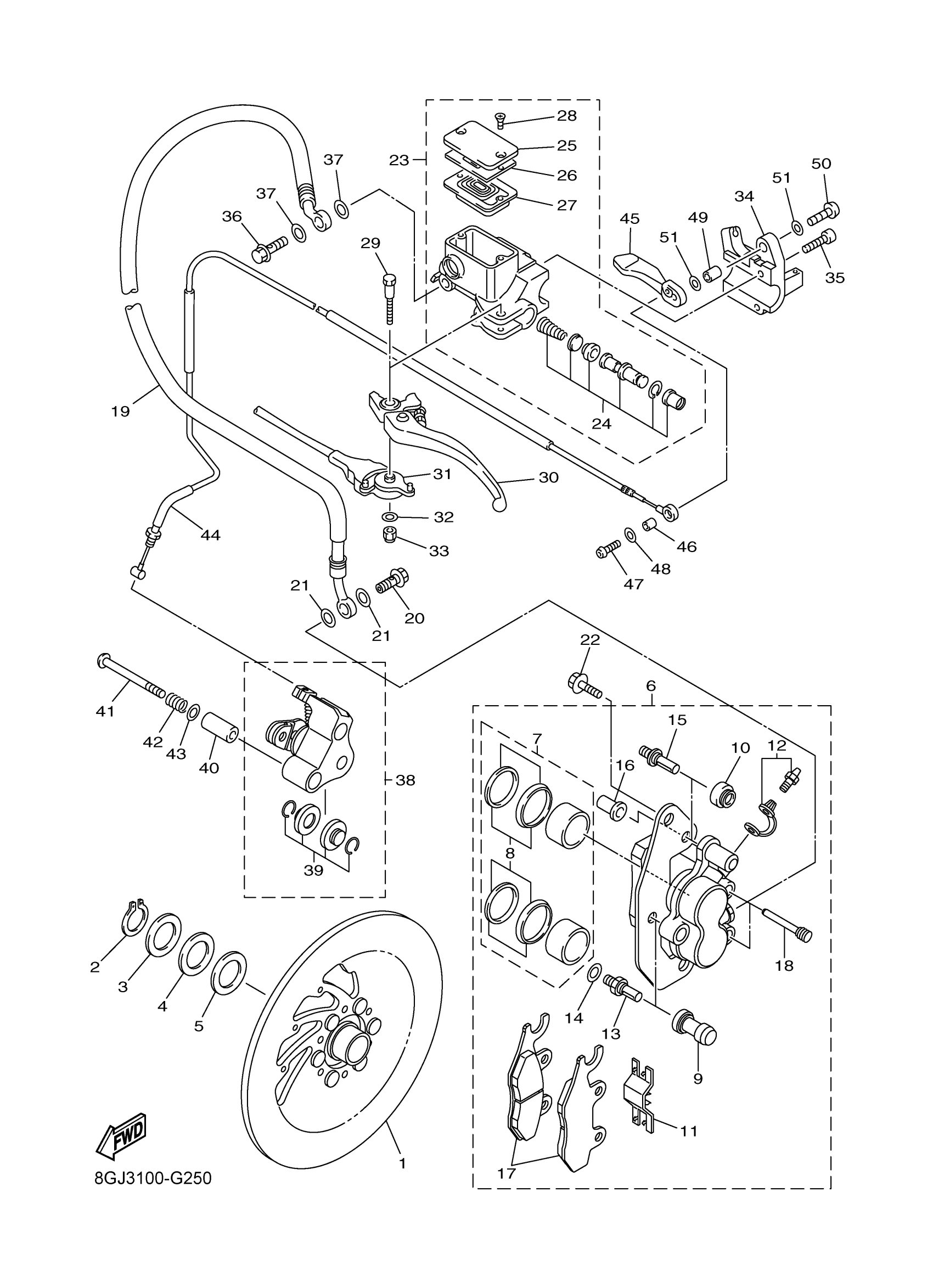

Yamaha PZ50VTXR (VENTURE LITE) 8GJ30 2008 BRAKE Diagram
#
1
DISK BRAKE ASSY
8GC-2581T-00-00
$250.99
2
CIRCLIP(1AR)
99009-20400-00
$8.49
3
WASHER, PLATE(61X)
90201-20M04-00
$8.49
4
WASHER, PLATE (10V)
90201-203F0-00
$2.55
5
WASHER, PLATE
90201-20021-00
$12.49
6
CALIPER ASSY (LEFT)
8GC-2580T-00-00
Unavailable
7
PISTON ASSY, CALIPER
3LD-25802-00-00
$53.99
8
CALIPER SEAL KIT
3JD-25803-00-00
$21.99
9
BOOT 2
1UY-25937-51-00
$14.49
10
BOOT, CALIPER
3JD-25917-00-00
$8.99
11
SPRING, PAD
3LD-25934-01-00
$30.99
12
BLEED SCREW KIT
36Y-W0048-00-00
$9.99
13
BOLT
1UY-25926-51-00
$4.47
14
WASHER, SPRING
1UY-25938-51-00
Unavailable
15
BOLT
3JD-25926-00-00
$7.99
16
NUT
3JD-25961-00-00
Unavailable
17
BRAKE PAD KIT
8GC-W0045-00-00
Unavailable
18
PIN, PAD
3FV-25924-00-00
Unavailable
19
HOSE, BRAKE 1
8GJ-25872-10-00
Unavailable
20
BOLT, UNION
90401-10015-00
Unavailable
21
WASHER, PLATE(481)
90201-10118-00
Unavailable
22
BOLT, FLANGE
90105-10096-00
Unavailable
23
MASTER CYLINDER SUB ASSY
8GC-W2587-00-00
Unavailable
24
CYLINDER KIT, MASTER
8CR-W0041-00-00
Unavailable
25
. CAP, RESERVOIR
8GC-25852-00-00
Unavailable
26
PLATE, DIAPHRAGM
3GM-2585B-20-00
Unavailable
27
DIAPHRAGM, RESERVOIR
55U-25854-00-00
Unavailable
28
SCREW, FLAT
98707-04012-00
Unavailable
29
BOLT, LEVER
8CR-2589F-00-00
Unavailable
30
LEVER 1
8CR-83912-00-00
Unavailable
30
LEVER 1
8DN-83912-00-00
Unavailable
31
STOP SWITCH ASSY
8FP-82530-00-00
Unavailable
32
WASHER, PLAIN
8CR-8398X-00-00
Unavailable
33
NUT, NYLON
95707-05300-00
Unavailable
34
BRACKET, MASTER CYLINDER
8GC-25867-00-00
Unavailable
35
BOLT
5YU-26332-00-00
Unavailable
36
BOLT, UNION
90401-10015-00
Unavailable
37
WASHER, PLATE(481)
90201-10118-00
Unavailable
38
PARKING BRAKE COMP.
8FU-25970-01-00
Unavailable
39
PARKING BRAKE PAD KIT
8FA-W0045-00-00
Unavailable
40
COLLAR
90387-06058-00
Unavailable
41
BOLT
90111-06042-00
Unavailable
42
SPRING, COMPRESSION
90501-120A0-00
Unavailable
43
WASHER 6474553400
90201-12161-00
Unavailable
44
CABLE, BRAKE
8GJ-26351-10-00
Unavailable
45
LEVER 2
8FA-83922-00-00
Unavailable
46
COLLAR
90387-06043-00
Unavailable
47
BOLT, BUTTON HEAD
92012-06014-00
Unavailable
48
. WASHER, PLATE
90201-06050-00
Unavailable
49
COLLAR
90387-081M9-00
Unavailable
50
BOLT,HEX. SOCKET BUTTON
90111-08054-00
Unavailable
51
WASHER PLATE 141181390000
90201-08085-00
Unavailable
