- PZ50VTW (VENTURE LITE) 8GJ1 2007
TRACK SUSPENSION 1

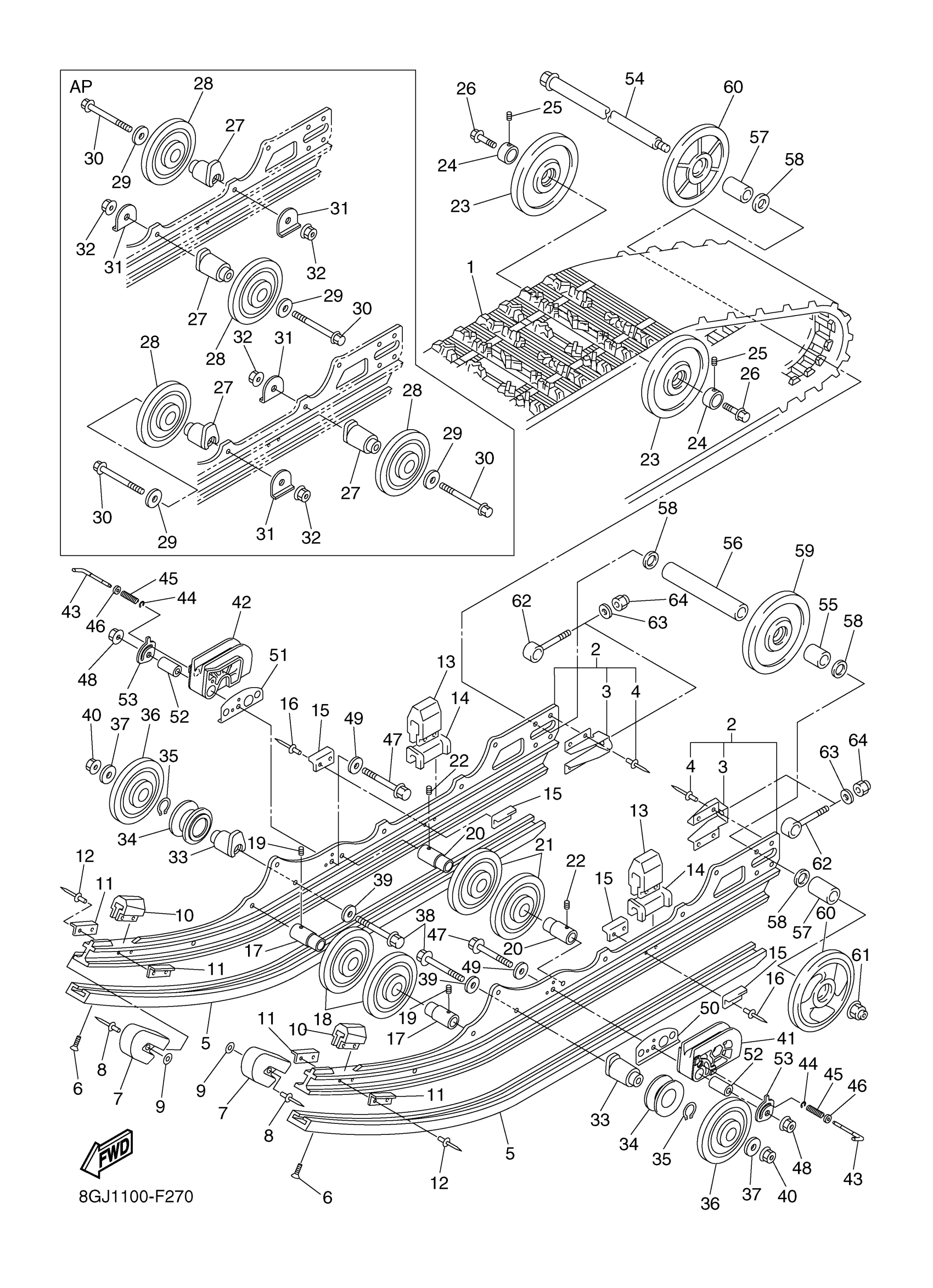

Yamaha PZ50VTW (VENTURE LITE) 8GJ1 2007 TRACK SUSPENSION 1 Diagram
#
1
TRACK ASSY
8ET-47110-11-00
Unavailable
2
FRAME, SLIDING
8ET-W4741-11-00
Unavailable
3
BRACKET
8DM-4741B-00-00
$45.99
4
RIVET
8V0-47468-00-00
$10.49
5
FX NYTRO 162" HP WIDE HYFAX
SMA-8HR92-00-BK
Unavailable
6
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
7
RUNNER, SLIDING 2
8ED-47422-00-00
$46.99
8
RIVET BLIND
90267-48194-00
$3.28
9
WASHER, PLATE(8CM)
90201-047R8-00
$3.02
10
DAMPER 1
8ES-47456-00-00
$6.99
11
PLATE, DAMPER
8K2-47458-01-00
$4.77
12
RIVET, BLIND
90267-48199-00
$3.76
13
DAMPER 2
8CM-47457-00-00
$16.49
14
SPACER
8CM-47341-00-00
$16.49
15
PLATE, DAMPER
8AX-47458-00-00
$10.99
16
RIVET, BLIND
90267-48199-00
$3.76
17
COLLAR
8ES-47319-01-00
Unavailable
18
SUSPENSION WHEEL ASSY
8ET-47310-00-00
Unavailable
19
BOLT, SET (8K2)
90113-06039-00
Unavailable
20
COLLAR
8ES-47319-01-00
Unavailable
21
SUSPENSION WHEEL ASSY
8ET-47310-00-00
Unavailable
22
BOLT, SET (8K2)
90113-06039-00
Unavailable
23
GUIDE WHEEL ASSY
8CR-47550-00-00
Unavailable
24
COLLAR 1
8FS-47365-00-00
Unavailable
25
BOLT, SET (8K2)
90113-06039-00
Unavailable
26
BOLT, FLANGE
90105-10145-00
Unavailable
27
BRACKET 7
8ES-47419-00-00
Unavailable
28
SUSPENSION WHEEL ASSY
8ET-47310-00-00
Unavailable
29
WASHER, PLATE(42X)
90201-105H3-00
Unavailable
30
BOLT, FLANGE
95817-10080-00
Unavailable
31
WASHER, CLAW
90214-10003-00
Unavailable
32
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
33
BRACKET 7
8ES-47419-10-00
Unavailable
34
HOOK 1
8ET-47446-00-00
Unavailable
35
CIRCLIP(6U2)
93410-35M10-00
Unavailable
36
SUSPENSION WHEEL ASSY
8ET-47310-00-00
Unavailable
37
WASHER, PLATE(42X)
90201-105H3-00
Unavailable
38
BOLT, FLANGE
95817-10080-00
Unavailable
39
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
40
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
41
SPRING, OUTSIDE 1
8ET-47435-10-00
Unavailable
42
SPRING, OUTSIDE 2
8ET-47436-10-00
Unavailable
43
PIN 1
8ET-47449-10-00
Unavailable
44
CIRCLIP (EU0)
99080-04600-00
Unavailable
45
SPRING, CONPRESSION (7R4)
90501-08665-00
Unavailable
46
WASHER 6464337400
90201-06040-00
Unavailable
47
BOLT, FLANGE
90105-10029-00
Unavailable
48
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
49
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
50
WASHER 1
8ET-47374-10-00
Unavailable
51
WASHER 2
8ET-47375-10-00
Unavailable
52
COLLAR(47X)
90387-106K8-00
Unavailable
53
WASHER, LOCK
8ET-47347-00-00
Unavailable
54
REAR AXLE COMP.
8L8-47520-10-00
Unavailable
55
COLLAR
90387-20015-00
Unavailable
56
COLLAR
90387-20016-00
Unavailable
57
COLLAR
90387-20019-00
Unavailable
58
WASHER, PLATE(89W)
90201-205R6-00
Unavailable
59
GUIDE WHEEL ASSY
8CR-47550-10-00
Unavailable
60
WEIGHT
8EK-47550-11-00
Unavailable
61
NUT, SELF-LOCKING (8BF)
95607-14200-00
Unavailable
62
COLLAR 3
8DM-47479-00-00
Unavailable
63
WASHER(6TA)
92907-10600-00
Unavailable
64
NUT, NYLON
95707-10300-00
Unavailable
