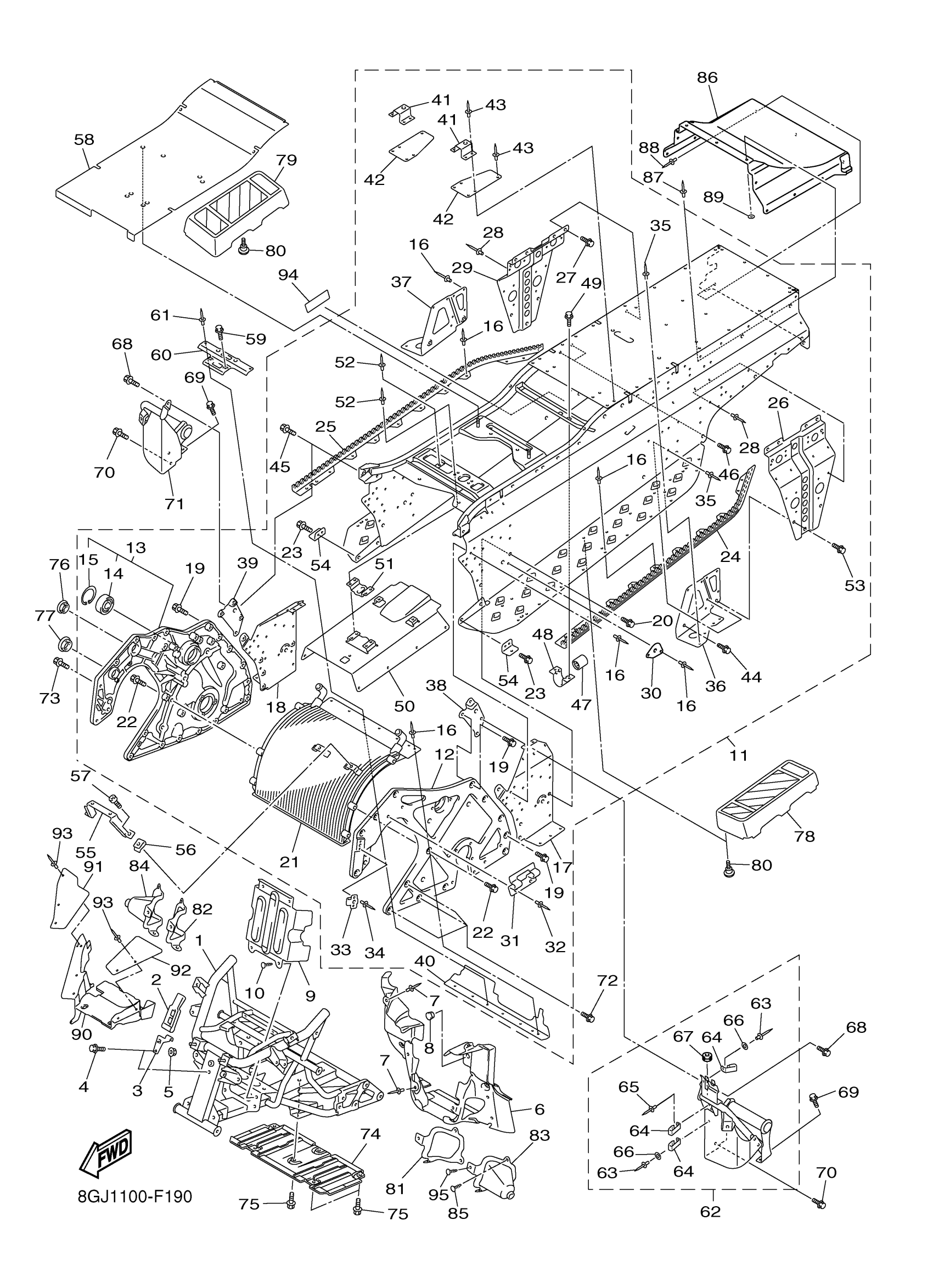

Yamaha PZ50VTW (VENTURE LITE) 8GJ1 2007 FRAME Diagram
#
1
FRONT FRAME COMP.
99999-03778-00
Unavailable
2
BAND
59V-21646-00-00
$22.99
3
BRACKET 4
8GJ-2175W-00-00
$23.99
4
BOLT, BUTTON HEAD
92017-05040-00
$1.64
5
NUT, FLANGE
95702-05500-00
$0.38
6
PANEL, SUB FRAME 1
8GJ-21912-00-00
Unavailable
6
PANEL, SUB FRAME 1
8GJ-21912-20-00
Unavailable
7
RIVET, BLIND (8R6)
90267-48086-00
$4.14
8
PLUG(2GU)
90338-12192-00
$8.49
9
PROTECTOR, FRAME A
8GC-2195A-00-00
Unavailable
10
RIVET
90269-05003-00
$2.07
11
REAR FRAME COMP.
8GJ-21950-01-00
Unavailable
12
REINF., PANELL FRAME 1
8GC-21991-00-00
$392.99
13
HOUSING, REINF SUB-ASSY(R.H)
8GK-21930-00-00
Unavailable
14
BEARING
93306-20532-00
$66.99
15
CIRCLIP(26H)
99009-52500-00
Unavailable
16
RIVET, BLIND
90267-47195-00
Unavailable
17
BRACKET, MAIN TRACK 1
8GJ-21943-00-00
Unavailable
18
BRACKET, MAIN TRACK 2
8GJ-21953-00-00
Unavailable
19
BOLT, FLANGE
95022-08020-00
Unavailable
20
BOLT, FLANGE
95817-08012-00
Unavailable
21
HEAT EXCHANGER ASSY
8GJ-12440-00-00
Unavailable
22
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
23
BOLT, FLANGE
90105-06109-00
Unavailable
24
REINFORCEMENT, FOOTREST 1
8GJ-21926-00-00
Unavailable
25
REINFORCEMENT, FOOTREST 2
8GJ-21936-00-00
Unavailable
26
BRACKET, RR.TRACK SUSPENTION 1
8GJ-21944-00-00
Unavailable
27
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
28
RIVET, BLIND
90267-47195-00
Unavailable
29
BRACKET, RR.TRACK SUSPENTION 2
8GJ-21954-00-00
Unavailable
30
BRACKET, MAIN TRACK 2
8FK-21953-00-00
Unavailable
31
HOOK
8GC-21973-00-00
Unavailable
32
RIVET, BLIND
90267-47195-00
Unavailable
33
PLATE, SPRING
2TK-2177L-00-00
Unavailable
34
RIVET, BLIND
90267-32192-00
Unavailable
35
RIVET, BLIND
90267-47195-00
Unavailable
36
PATCH 7
8GJ-21967-00-00
Unavailable
37
PATCH 8
8GJ-21988-00-00
Unavailable
38
PATCH 3
8GJ-21963-00-00
Unavailable
39
PATCH 4
8GJ-21964-00-00
Unavailable
40
PLATE
8GJ-2176E-00-00
Unavailable
41
BRACKET, SEAT
8GJ-21391-00-00
Unavailable
42
PLATE
8GJ-21329-00-00
Unavailable
43
RIVET, BLIND
90267-47195-00
Unavailable
44
BOLT, FLANGE
95822-08014-00
Unavailable
45
BOLT, FLANGE(3HP)
95817-10016-00
Unavailable
46
BOLT, FLANGE
95814-08016-00
Unavailable
47
DAMPER, MUFFLER
8GC-14747-00-00
Unavailable
48
BRACKET, DAMPER
8GC-21121-00-00
Unavailable
49
BOLT, BUTTON HEAD
92012-06010-00
Unavailable
50
SHIELD, HEAT
8GC-2199H-00-00
Unavailable
51
BRACKET, SILENCER 1
8GC-1467H-00-00
Unavailable
52
RIVET, BLIND
90267-47195-00
Unavailable
53
BOLT, FLANGE
95814-08016-00
Unavailable
54
PATCH 7
8GC-21967-00-00
Unavailable
55
STAY 1
8GC-2164F-00-00
Unavailable
56
NUT, SPRING(4ES)
90183-06069-00
Unavailable
57
BOLT,SOCKET
91317-06012-00
Unavailable
58
PANEL, SUB FRAME 5
8GJ-21916-00-00
Unavailable
59
SCREW, BIND(J45)
98980-06012-00
Unavailable
60
STAY 2
8GJ-2164G-00-00
Unavailable
61
RIVET, BLIND
90267-47195-00
Unavailable
62
FOOTREST COMP. 1
8GJ-21960-00-00
Unavailable
63
RIVET, BLIND
90267-48010-00
Unavailable
64
CLAMP(51Y)
90465-08277-00
Unavailable
65
RIVET, BLIND (22W)
90267-48083-00
Unavailable
66
WASHER, PLATE (34L)
90201-043H7-00
Unavailable
67
GROMMET (1E5)
90480-13163-00
Unavailable
68
BOLT, FLANGE
95814-08016-00
Unavailable
69
BOLT, FLANGE
95022-06012-00
Unavailable
70
BOLT, FLANGE
95812-06014-00
Unavailable
71
FOOTREST COMP. 2
8GJ-21970-00-00
Unavailable
72
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
73
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
74
PROTECTOR
8GJ-2193A-00-00
Unavailable
75
BOLT
90109-06285-00
Unavailable
76
GROMMET
90480-27001-00
Unavailable
77
GROMMET
90480-40003-00
Unavailable
78
FOOTREST, REAR 1
8GJ-27431-00-00
Unavailable
79
FOOTREST, REAR 2
8GJ-27441-00-00
Unavailable
80
SCREW, TAPPING(4TV)
90167-05078-00
Unavailable
81
PLATE, STRG BRACKET 1
8GJ-2195E-00-00
Unavailable
82
PLATE, STRG BRACKET 2
8GJ-2195F-00-00
Unavailable
83
COVER 1
8GJ-2198F-00-00
Unavailable
84
COVER 3
8GJ-2198J-00-00
Unavailable
85
RIVET
90269-05003-00
$2.07
86
PROTECTOR 7
8GJ-77557-01-00
Unavailable
87
RIVET, BLIND
90267-47195-00
Unavailable
88
RIVET, BLIND(8CH)
90267-47187-00
Unavailable
89
WASHER PLATE 829771780000
90201-05033-00
Unavailable
90
PROTECTOR, FRAME
8GJ-2197E-00-00
Unavailable
91
SEAL 4
8GJ-241A4-00-00
Unavailable
92
SEAL, 5
8GJ-241A5-00-00
Unavailable
93
RIVET(81E)
90269-05055-00
Unavailable
94
PLETE, EPA OFFROAD 2
8GC-2179D-00-00
Unavailable
95
RIVET
90269-05002-00
Unavailable
