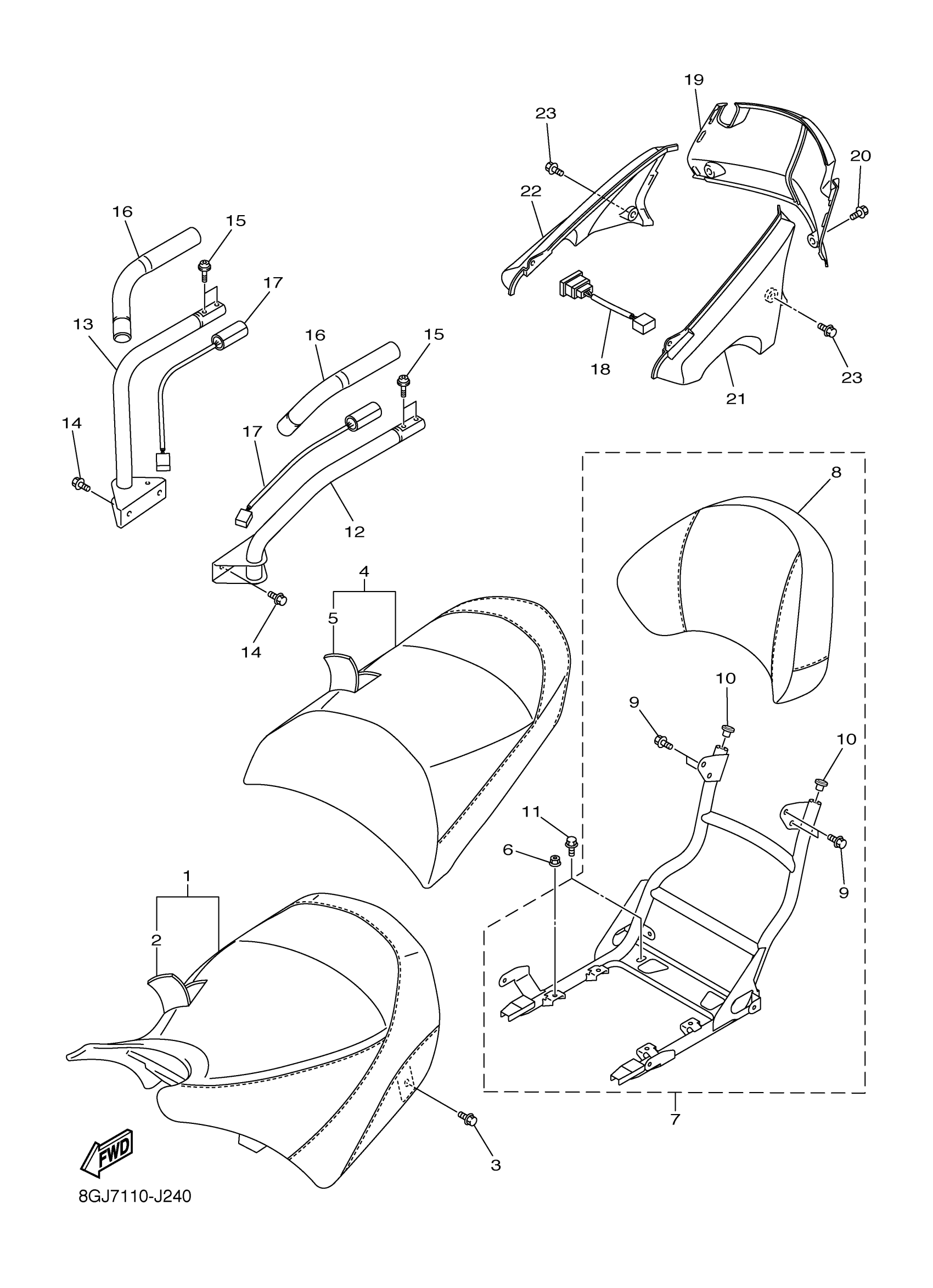

Yamaha PZ50VTDR (VENTURE LITE) 8GJD 2013 SEAT Diagram

#

Description
Price

1

SINGLE SEAT ASSY

8GJ-24710-10-00

Unavailable

2

SEAT COVER COMP.

8GJ-2470F-11-00

$378.99

3

BOLT, FLANGE

95814-08016-00

$9.49

4

TANDEM SEAT ASSY

8GJ-24750-11-00

$569.99

5

SEAT COVER COMP. ,2

8GJ-2470H-11-00

Unavailable

6

NUT, FLANGE

95702-06500-00

$2.39

7

SEAT BACK ASSY

8GJ-24790-10-00

Unavailable

8

SEMI-DOUBLE SEAT

8GJ-24771-11-00

$475.99

9

BOLT, FLANGE

95822-08014-00

$8.49

10

GROMMET

8GJ-24742-00-00

$7.49

11

BOLT, FLANGE

95822-08014-00

$8.49

12

ASSIST, GRIP

8GJ-2474A-00-00

Unavailable

13

ASSIST,GRIP 2

8GJ-2474W-00-00

Unavailable

14

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

15

BOLT, BUTTON HEAD

92012-06020-00

$8.49

16

COVER 1

8GJ-2842M-00-00

Unavailable

17

ASSIST GRIP WARMER ASSY 1

8GR-2474B-00-00

Unavailable

18

SWITCH

8ET-82917-00-00

Unavailable

19

COVER 1

8GJ-24845-00-00

Unavailable

20

BOLT

90109-06220-00

Unavailable

21

COVER 2

8GJ-24846-00-00

Unavailable

22

COVER 3

8GJ-24844-00-00

Unavailable

23

BOLT

90109-06220-00

Unavailable
