Description

Price

1

COVER, HEADLIGHT

8GJ-77251-01-00

Unavailable

2

DAMPER

8GJ-77238-00-00

Unavailable

3

PLATE 1

8GJ-77185-00-00

$105.99

4

PLATE 2

8GJ-77186-00-00

$108.99

5

PANEL, INSTRUMENT

8GJ-77712-00-P5

Unavailable

6

PANEL, INSTRUMENT

8GJ-77713-00-P5

Unavailable

7

NUT, SPRING(4ES)

90183-06069-00

Unavailable

8

SCREW(2XF)

90149-06263-00

$9.49

9

BOLT

90109-06220-00

$10.49

10

WINDSHIELD COMP.

8GJ-K7210-00-00

Unavailable

11

. TRIM, UPPER

8GJ-K7213-00-00

Unavailable

12

SCREW(3YF)

90149-05299-00

$4.14

13

NUT(1KT)

90179-05523-00

$8.49

14

ROD 1

8GJ-77119-00-00

Unavailable

15

ROD 2

8GJ-77129-00-00

$125.99

16

HOLDER, ROD 1

8GJ-77139-00-00

Unavailable

17

HOLDER, ROD 2

8GJ-77149-00-00

Unavailable

18

SCREW(3YF)

90149-05299-00

$4.14

19

NUT

90179-05003-00

Unavailable

20

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

21

SPACER

80F-21998-00-00

Unavailable

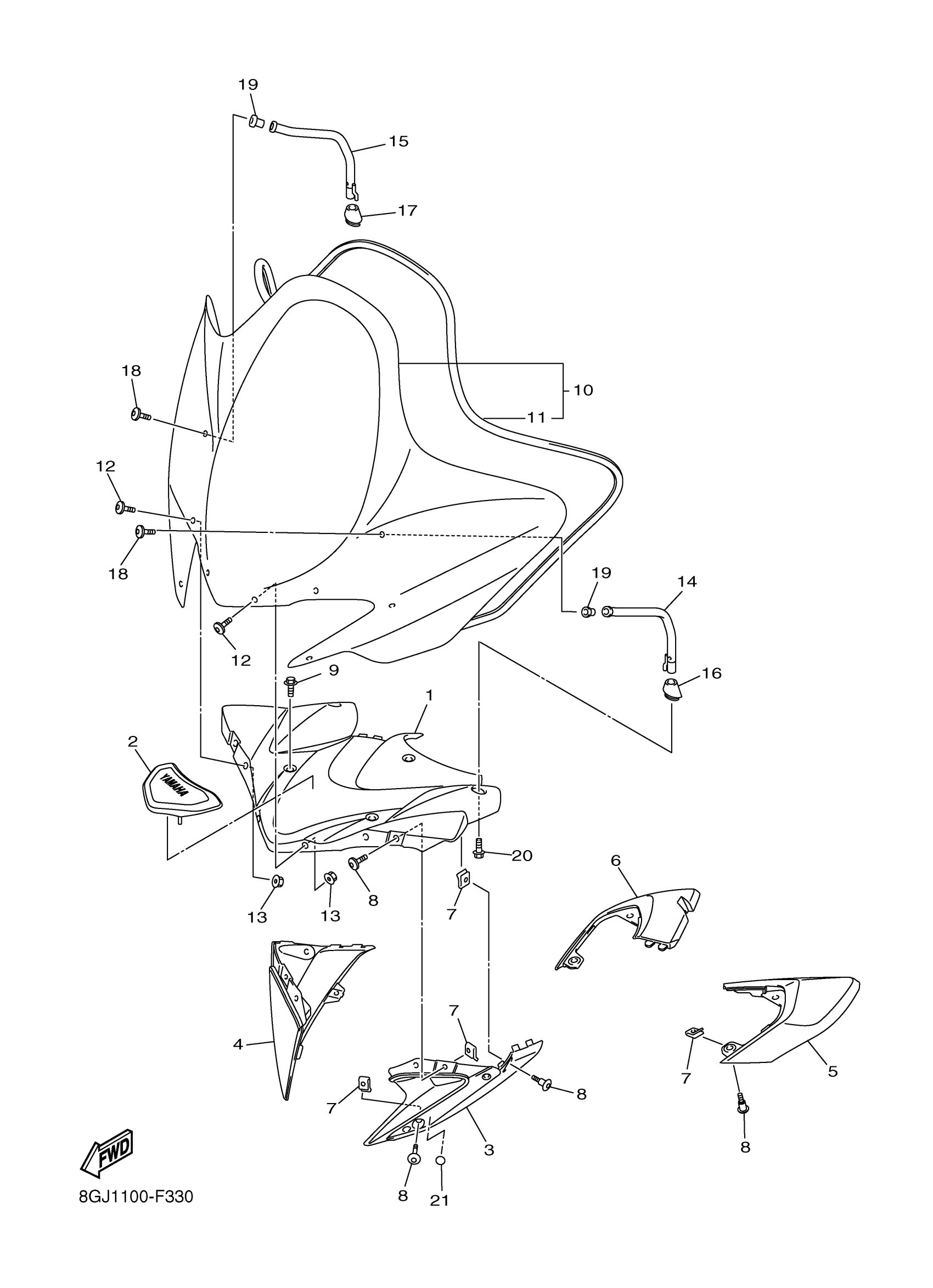

Yamaha PZ50VTAW (VENTURE LITE) 8GJ9 2011 WINDSHIELD Diagram

COVER, HEADLIGHT

DAMPER

PLATE 1

PLATE 2

PANEL, INSTRUMENT

PANEL, INSTRUMENT

NUT, SPRING(4ES)

SCREW(2XF)

BOLT

WINDSHIELD COMP.

. TRIM, UPPER

SCREW(3YF)

NUT(1KT)

ROD 1

ROD 2

HOLDER, ROD 1

HOLDER, ROD 2

SCREW(3YF)

NUT

BOLT, FLANGE(JN5)

SPACER
