- PZ50VTAW (VENTURE LITE) 8GJ9 2011
CRANKSHAFT PISTON

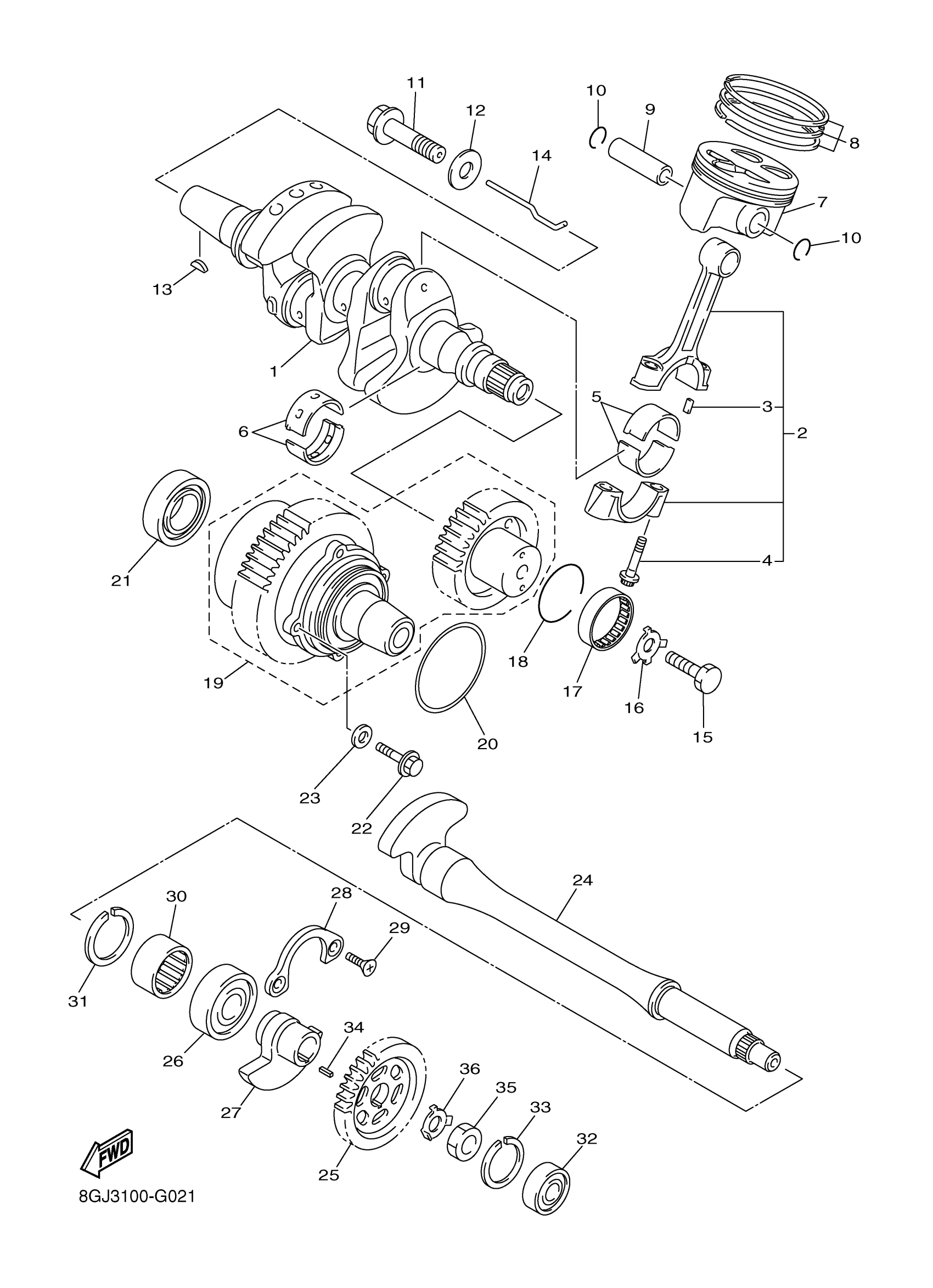

Yamaha PZ50VTAW (VENTURE LITE) 8GJ9 2011 CRANKSHAFT PISTON Diagram
#
1
CRANKSHAFT
8GC-11411-00-00
Unavailable
2
CONNECTING ROD ASSY
8GC-11650-01-00
Unavailable
3
PIN, DOWEL
93603-07073-00
$9.49
4
BOLT, CONNECTING ROD
5VY-11654-01-00
$16.49
5
PLANE BEARING, CONNECTING ROD
4C8-11656-00-00
$23.99
5
PLANE BEARING, CONNECTING ROD
4C8-11656-10-00
Unavailable
5
PLANE BEARING, CONNECTING ROD
4C8-11656-20-00
$23.99
5
PLANE BEARING, CONNECTING ROD
4C8-11656-A0-00
Unavailable
6
PLANE BEARING, CRANKSHAFT 1
5VY-11416-00-00
$20.99
6
PLANE BEARING, CRANKSHAFT 1
5VY-11416-10-00
$20.99
6
PLANE BEARING, CRANKSHAFT 1
5VY-11416-20-00
$20.99
6
PLANE BEARING, CRANKSHAFT 1
5VY-11416-30-00
$20.99
6
PLANE BEARING, CRANKSHAFT 1
5VY-11416-A0-00
$20.99
7
PISTON (STD)
8GC-11631-00-00
Unavailable
8
PISTON RING SET (STD)
4C8-11603-01-00
$60.99
9
PIN, PISTON
5VY-11633-00-00
Unavailable
10
CLIP (1J7)
90468-12069-00
Unavailable
11
BOLT, FLANGE
90105-12032-00
Unavailable
12
WASHER (838)
90201-12191-00
Unavailable
13
KEY WOODRUFF 146115450000
90280-03017-00
Unavailable
14
SHAFT 1
59J-11455-00-00
Unavailable
15
BOLT
90101-10009-00
Unavailable
16
WASHER, LOCK
90215-10007-00
Unavailable
17
BEARING
93311-33588-00
Unavailable
18
CIRCLIP(1GU)
93450-46113-00
Unavailable
19
DRIVE GEAR SET
8GC-W114B-00-00
Unavailable
20
O-RING
93210-53679-00
Unavailable
21
BEARING
93306-27209-00
Unavailable
22
BOLT, FLANGE
95817-06025-00
Unavailable
23
GASKET (4V2)
90430-06166-00
Unavailable
24
SHAFT, BALANCER 1
8GC-11583-10-00
Unavailable
25
GEAR, BALANCE WEIGHT
8GC-11531-10-00
Unavailable
26
BEARING
93306-30324-00
Unavailable
27
WEIGHT 1
8GC-11454-10-00
Unavailable
28
PLATE, BEARING COVER
4JT-15383-00-00
Unavailable
29
SCREW, COUNTERSUNK
90151-06023-00
Unavailable
30
BEARING, CYLINDRICAL(3YL)
93311-62574-00
Unavailable
31
CIRCLIP(2JN)
93420-37074-00
Unavailable
32
BEARING(3WF)
93306-20119-00
Unavailable
33
CIRCLIP(46T)
99009-32500-00
Unavailable
34
KEY, STRAIGHT
90282-04055-00
Unavailable
35
NUT
90170-14003-00
Unavailable
36
WASHER, LOCK
90215-14001-00
Unavailable
