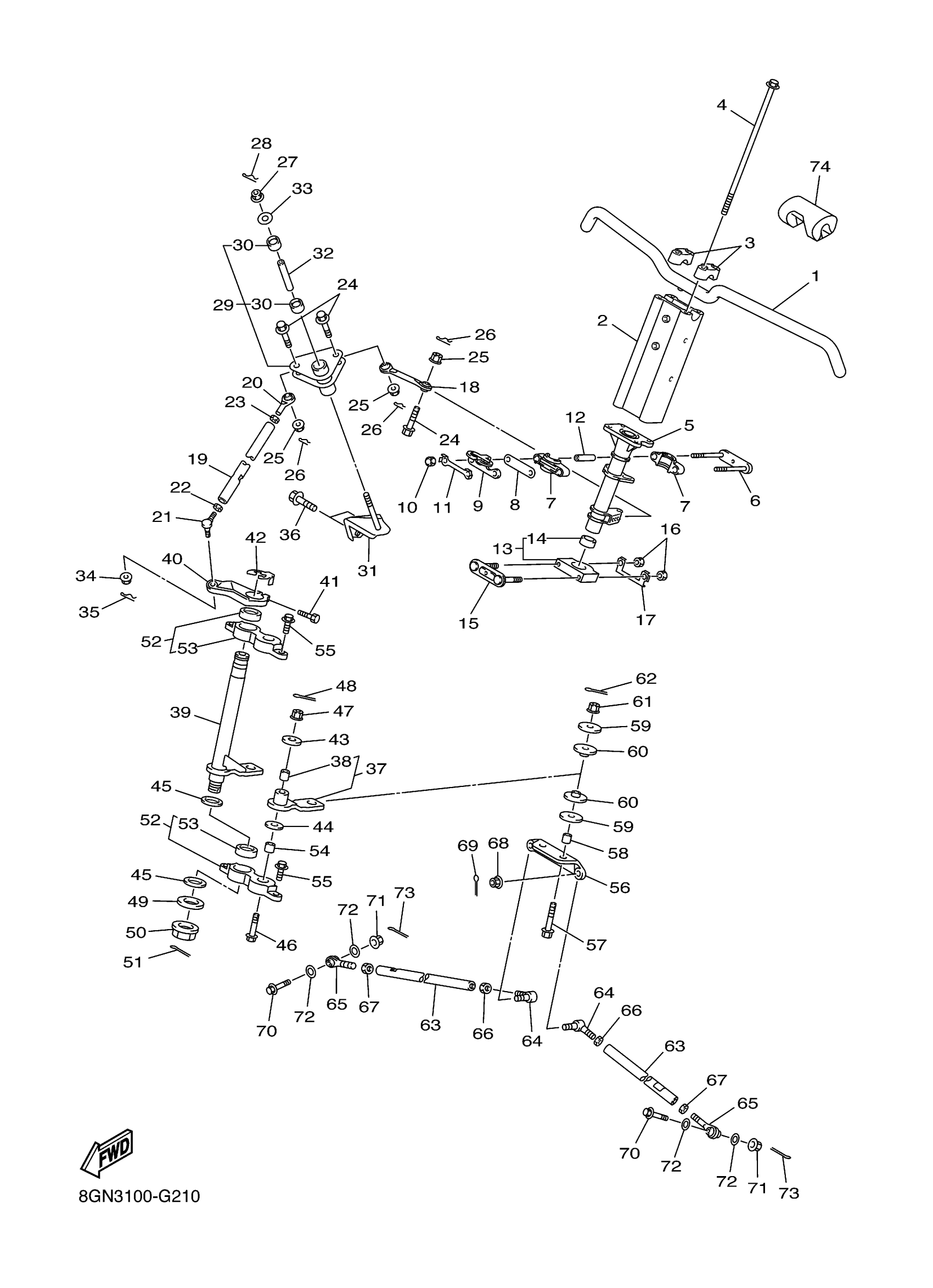

Yamaha PZ50RTYW (PHAZER RTX) 8GN50 2009 STEERING Diagram

#

Description
Price

1

HANDLEBAR

8GN-26111-10-00

$141.29

2

JOINT

8GC-2381B-00-00

$211.52

3

HOLDER, HANDLE UPPER

1E6-23441-00-00

$22.38

4

BOLT

8GC-23436-00-00

$4.14

5

COLUMN, STEERING 2

8GC-23813-00-00

$199.65

6

HOLDER 2

8GC-23867-00-00

$17.51

7

PLANE BEARING, STEERING

8FA-23812-00-00

$5.66

8

HOLDER 2

8FA-23867-00-00

$2.49

9

HOLDER, BEARING

8GC-23872-00-00

$12.85

10

NUT, CAP

95307-08800-00

Unavailable

11

WASHER, LOCK 1

1UY-23894-01-00

$6.86

12

COLLAR

90387-09006-00

$5.43

13

PLANE BEARING, STEERING

8GC-23812-00-00

$55.37

14

BEARING

93317-425B7-00

Unavailable

15

HOLDER

8GJ-23857-00-00

$18.14

16

NUT(6L2)

95333-08600-00

$3.20

17

WASHER, LOCK 1

8GJ-23894-00-00

$11.85

18

ROD, STEERING

8GC-23828-00-00

$141.20

19

ROD, STEERING RELAY

8GC-23821-00-00

$15.25

20

JOINT, UNIVERSAL 1

8GC-23841-00-00

$61.14

21

JOINT, UNIVERSAL 2

8CR-23845-10-00

$52.81

22

NUT (682)

95380-10700-00

$5.78

23

NUT, HEXAGON (8A5)

90170-10186-00

$7.60

24

BOLT, WASHER BASED(47X)

90105-08321-00

$5.74

25

NUT,FLANGE(J10)

95702-08500-00

$0.80

26

CLIP

90468-16001-00

$4.51

27

NUT, FLANGE(3BM)

95704-10500-00

$1.71

28

CLIP (7U6)

90468-18121-00

$0.74

29

ARM, CONTROL 1

8GC-2384E-00-00

$70.05

30

BEARING, CYLINDRICAL(3VR)

93317-41767-00

$38.78

31

BRACKET 1

8GK-23881-00-00

$53.86

32

NUT

8GC-23846-00-00

$11.06

33

WASHER, PLATE

90201-121U3-00

$5.45

34

NUT, FLANGE(3BM)

95704-10500-00

$1.71

35

PIN, COTTER (648)

91490-20015-00

$1.85

36

BOLT, FLANGE

95812-08030-00

$3.25

37

ARM PIVOT ASSY

8GC-2389K-00-00

$61.72

38

BUSH

8GC-23526-00-00

$26.42

39

PIVOT ARM ASSY 2

8GC-2389M-01-00

$223.52

40

ARM, INSIDE

8GC-2381A-00-00

$75.68

41

BOLT, SOCKET

91317-08025-00

$6.25

42

CIRCLIP

8GC-23183-00-00

$6.74

43

WASHER, PLATE(N04)

90201-124G7-00

$4.95

44

WASHER PLATE 371115580000

90201-25291-00

$8.91

45

WASHER, PLATE (5F7)

90201-256E4-00

$9.78

46

BOLT 1

8GC-23346-00-00

$7.05

47

95702-12500

95702-12500-00

$3.03

48

PIN, COTTER

91490-25020-00

$2.94

49

WASHER, PLATE

90201-22018-00

$4.11

50

NUT (26H)

90179-22412-00

$17.88

51

PIN, COTTER

91402-20035-00

$0.15

52

BRACKET, PIVOT

8GC-2389H-00-00

$99.48

53

BEARING

93317-425B7-00

Unavailable

54

COLLAR

8GC-23113-00-00

$22.58

55

BOLT, FLANGE(3GD)

95817-10025-00

$6.17

56

ARM, IDLER

8GC-23826-00-00

$109.31

57

BOLT, WASHER BASED(4KD)

90105-10728-00

$7.49

58

COLLAR

90387-10070-00

$25.31

59

WASHER, PLATE(JN9)

90201-100S2-00

$6.14

60

BUSH 1

8GC-23362-00-00

$2.95

61

NUT, SELF-LOCKING

90185-10011-00

$3.92

62

PIN, COTTER (648)

91490-20015-00

$1.85

63

ROD, TIE

8GC-23831-00-00

$35.60

64

JOINT, UNIVERSAL 2

8CR-23845-10-00

$52.81

65

JOINT, UNIVERSAL 3

8GC-23847-00-00

$68.89

66

NUT (682)

95380-10700-00

$5.78

67

NUT, HEXAGON (8A5)

90170-10186-00

$7.60

68

NUT, FLANGE(3BM)

95704-10500-00

$1.71

69

PIN, COTTER (648)

91490-20015-00

$1.85

70

BOLT

8GC-23493-00-00

$6.18

71

NUT,FLANGE(J10)

95702-08500-00

$0.80

72

WASHER, PLATE

90201-06018-00

$3.74

73

PIN, COTTER (648)

91490-20015-00

$1.85

74

PAD, STEERING

8FR-23815-00-00

$138.89
