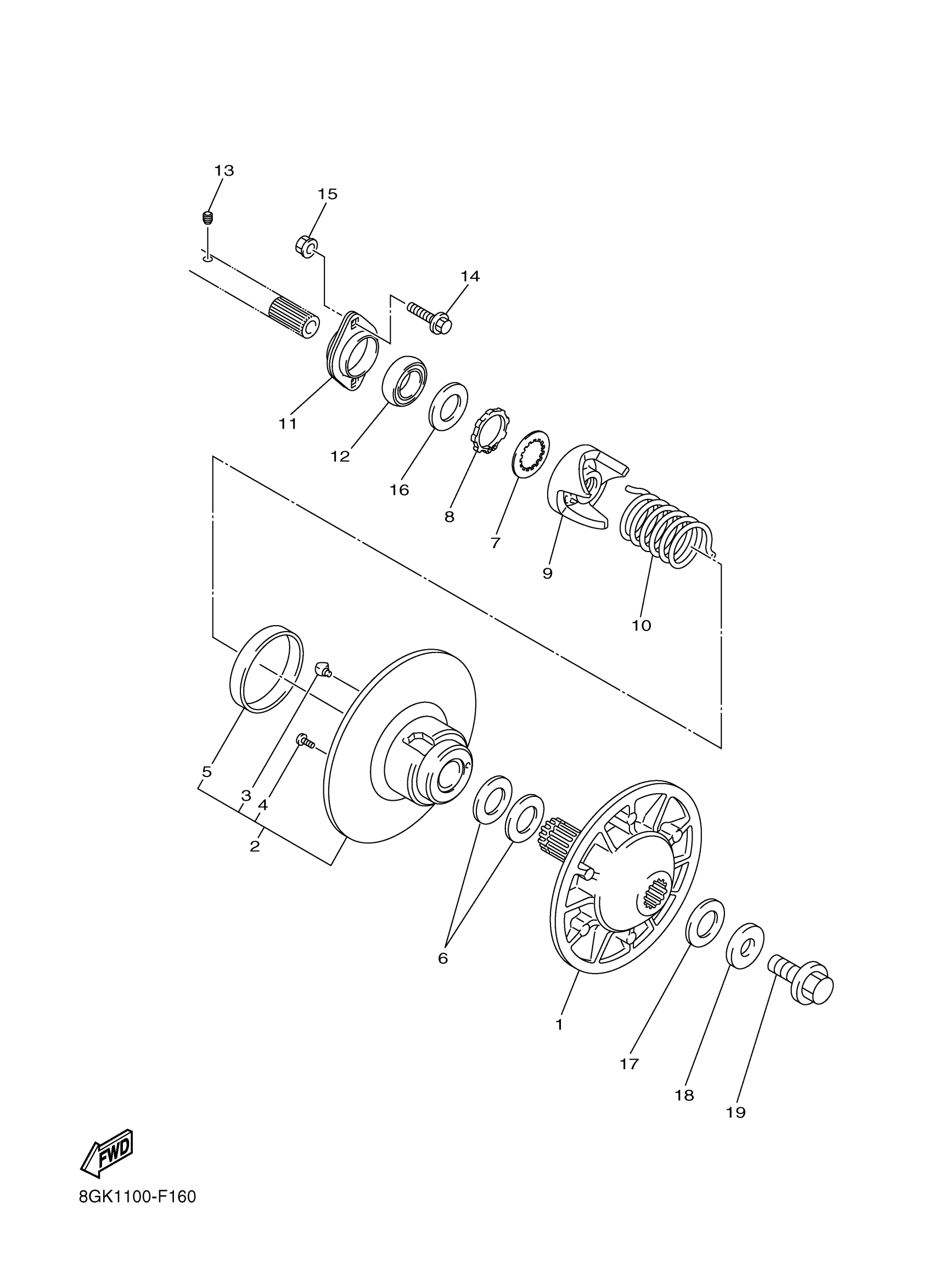

Yamaha PZ50RTYW (PHAZER RTX) 8GN50 2009 SECONDARY SHEAVE Diagram

#

Description
Price

1

SECONDARY FIXED SHEAVE COMP.

88R-17660-03-00

$360.45

2

SECONDARY SLIDING SHEAVE

8GC-17670-00-00

$205.77

3

. SHOE, RAMP

8GC-17688-00-00

Unavailable

4

SCREW, BINDING

98907-06016-00

$7.14

5

BUSH, BIMETAL FORMED(81H)

90384-90081-00

$57.05

6

WASHER, PLATE (8U9)

90201-345G2-00

$10.68

7

WASHER, CLAW(88R)

90214-29060-00

$5.80

8

CIRCLIP(86F)

93440-34170-00

$6.86

9

SEAT, SECONDARY SPRING

88R-17684-03-00

$92.46

10

SPRING, TORSION

90508-55007-00

$29.62

11

HOUSING, BEARING

8CR-47631-01-00

$19.00

12

BEARING(8CJ)

93399-99943-00

$46.72

13

BOLT, SET

90113-06006-00

$3.60

14

BOLT, FLANGE

95022-08025-00

$6.68

15

NUT, SELF-LOCKING

95602-08200-00

$2.77

16

WASHER, PLATE (888)

90201-25526-00

$7.46

17

WASHER, PLATE (8R6)

90201-252F1-00

$6.92

17

WASHER, PLATE (888)

90201-25527-00

$7.60

18

WASHER, PLATE

90201-14022-00

$4.86

19

BOLT, FLANGE

90105-14002-00

$14.64
