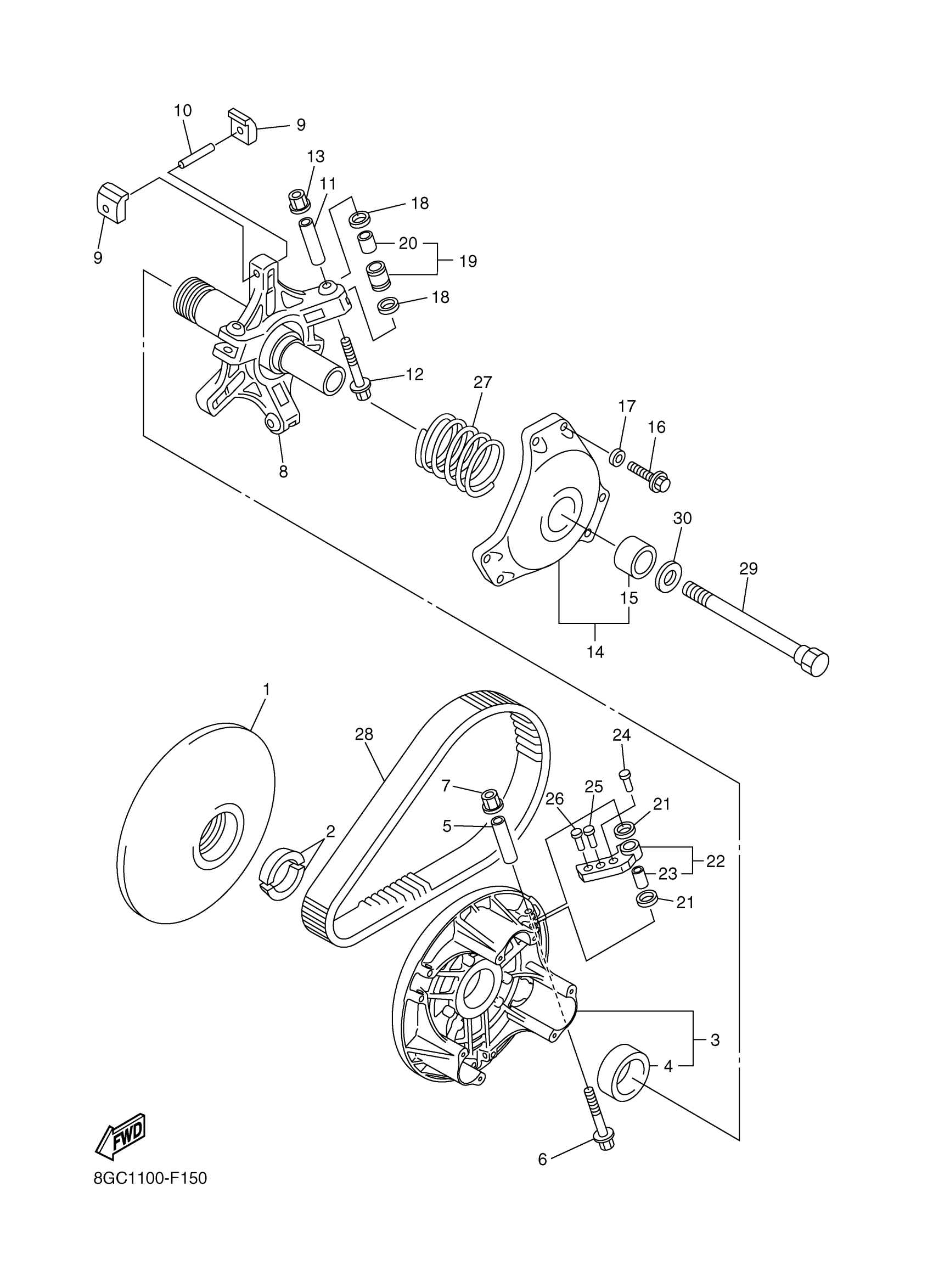

Yamaha PZ50RTYW (PHAZER RTX) 8GN50 2009 PRIMARY SHEAVE Diagram

#

Description
Price

1

SHEAVE, PRIMARY FIXED

8FA-17611-01-00

$199.05

2

STOPPER

8V0-17639-00-00

$10.52

3

PRIMARY SLIDING SHEAVE COMP.

8BV-17620-03-00

$259.28

4

BUSH, BIMETAL FORMED(8AS)

90384-41242-00

$50.08

5

COLLAR

90387-0514T-00

$14.86

6

BOLT, WASHER BASED(88R)

90105-05644-00

$1.94

7

NUT, S/L FLANGE

95607-05200-00

$6.86

8

SPIDER COMPLETE

8ES-17640-02-00

$438.89

9

SLIDER

8BW-17653-00-00

$13.86

10

PIN, SPRING (7F7)

91609-50032-00

$3.66

11

COLLAR

90387-0514U-00

$15.86

12

BOLT, WASHER BASED(88R)

90105-05644-00

$1.94

13

NUT, S/L FLANGE

95607-05200-00

$6.86

14

PRIMARY SHEAVE CAP COMP.

8BV-17630-12-00

$90.97

15

BUSH, SOLID(8CP)

90380-28237-00

$31.34

16

BOLT, HEXAGON

97017-06030-00

$3.00

17

WASHER(6TA)

92907-06600-00

$0.78

18

WASHER, PLATE(8BV)

90202-09227-00

$7.48

19

ROLLER, COMP

8FG-17624-20-00

$98.94

20

BUSH

90386-09001-00

$55.20

21

WASHER, PLATE(88R)

90202-08204-00

$5.72

22

WEIGHT COMP

8GC-17605-00-00

$58.62

23

BUSH

90386-08002-00

$11.97

24

RIVET. COUNTERSUNK HEAD(8AK)

90261-06015-00

$7.55

25

RIVET. COUNTERSUNK HEAD(8AK)

90261-06015-00

$7.55

26

RIVET, COUNTERSUNK HEAD (8K8)

90261-06019-00

$6.82

27

SPRING, COMPRESSION(89F)

90501-606G9-00

$33.15

28

V-BELT

8GK-17641-10-00

$95.03

29

BOLT (L=156.5MM)

8V0-17647-10-00

$21.45

30

WASHER(JN5)

92907-16100-00

$12.08
